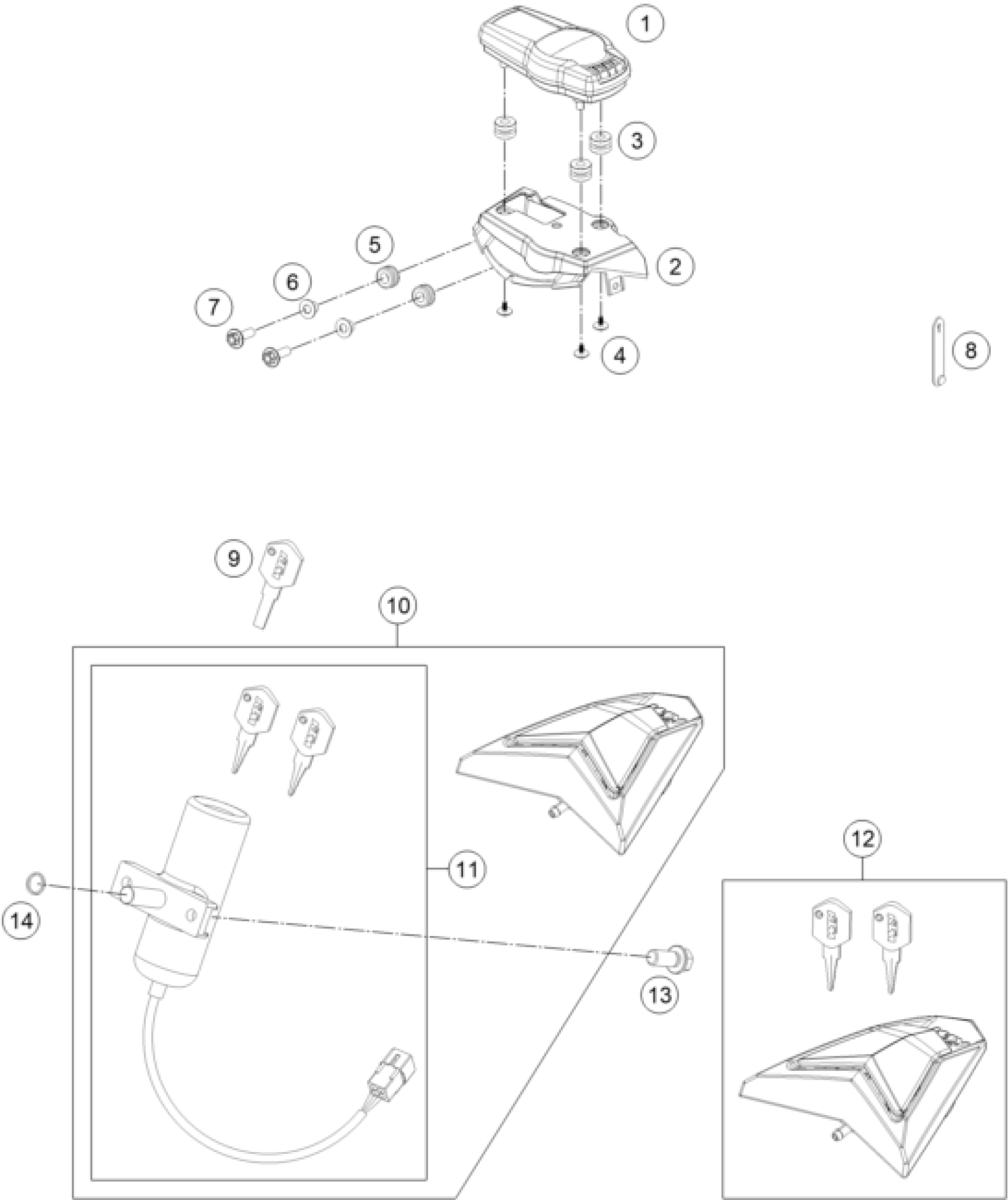

KTM 690 SMC R ABS 2016 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

SPEEDOMETER

76014069100

$507.42

2

SPEEDOMETER BRACKET

76514060000

$15.51

3

rubber grommet 16x10.8x3

58214069051

$5.23

4

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

5

rubber grommet D=8mm open

31008060000

$2.05

10

LOCK SET

76511066144

$200.08

6

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

7

HH collar screw M6x15 TX30

0024060156

$3.08

8

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

9

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

11

IGNITION LOCK 08

76511066000

$135.19

12

TANK CAP

76507008100

$117.61

13

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

14

o-ring 10.00x2.00 silicone

0770100020

$2.05
