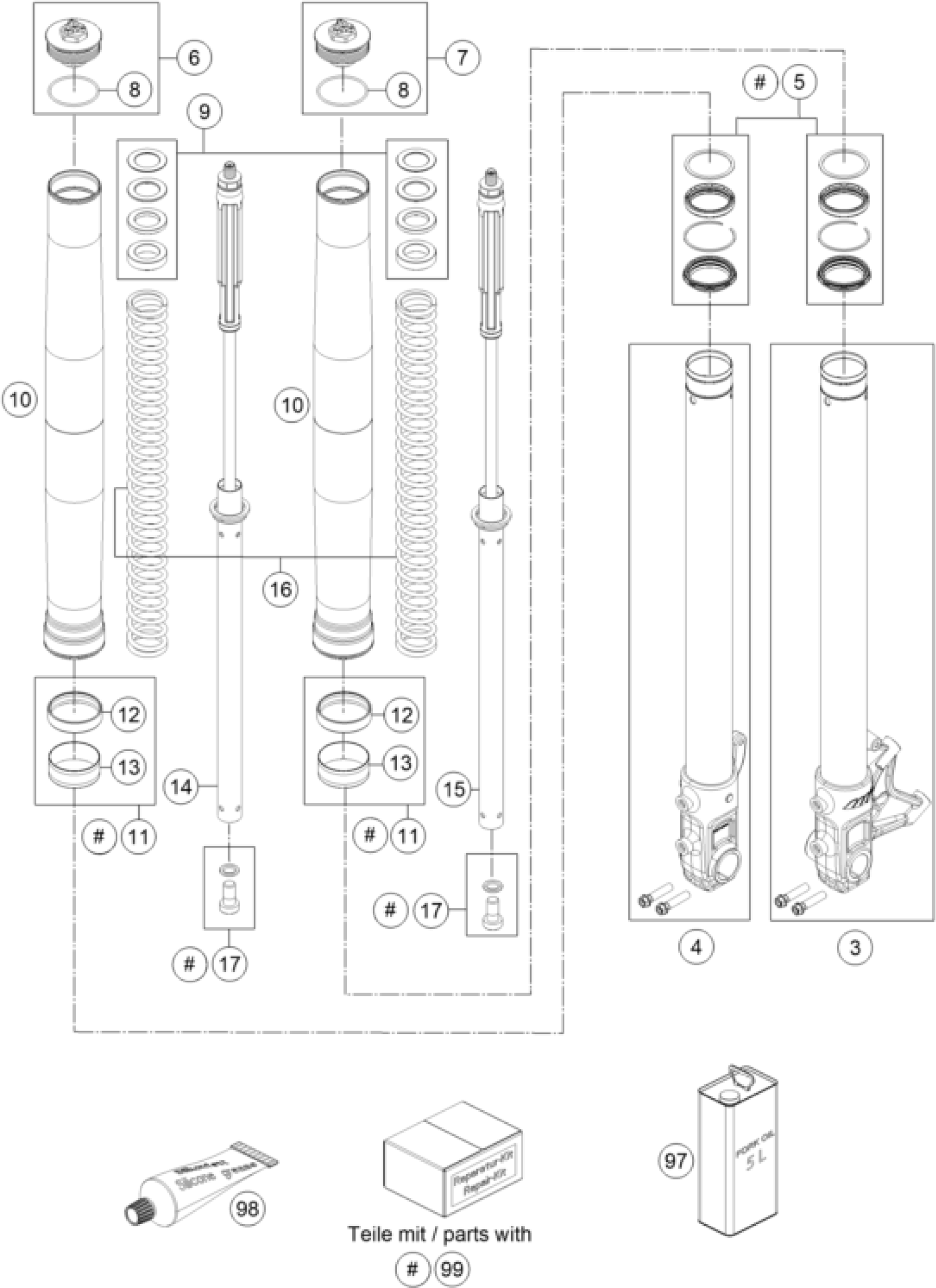

KTM 690 SMC R ABS 2016 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

AXLE CLAMP L/S WITH TUBE CPL.

48601318S1

Unavailable

4

AXLE CLAMP R/S WITH TUBE CPL.

48601317S1

Unavailable

5

GASKET KIT CPL.

R14040

Unavailable

6

Screw cap M51x1,5 rebound red

48601062S2

Unavailable

7

Screw cap M51x1,5 compression

48601062S3

Unavailable

8

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

9

spring tensioner SET

R14026

Unavailable

10

Fork outer tube 49,13x550 dt54

48601099

Unavailable

11

pilot bushing set

R14028

Unavailable

12

Guide bushing 48x52x12

48601009

Unavailable

13

Guide bushing 47x49x20

48601008

Unavailable

14

CARDRIDGE KIT CPL. R/S

48600705S3

Unavailable

15

CARDRIDGE KIT CPL. L/S

48601319S

Unavailable

16

SPRING C=5,3 L=450 D=5,5

91410043S

Unavailable

17

AH SCREW M10X20 SET

00501020S1

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

repair kit 1290 SD 2014

R14041

Unavailable
