ENGINE CASE

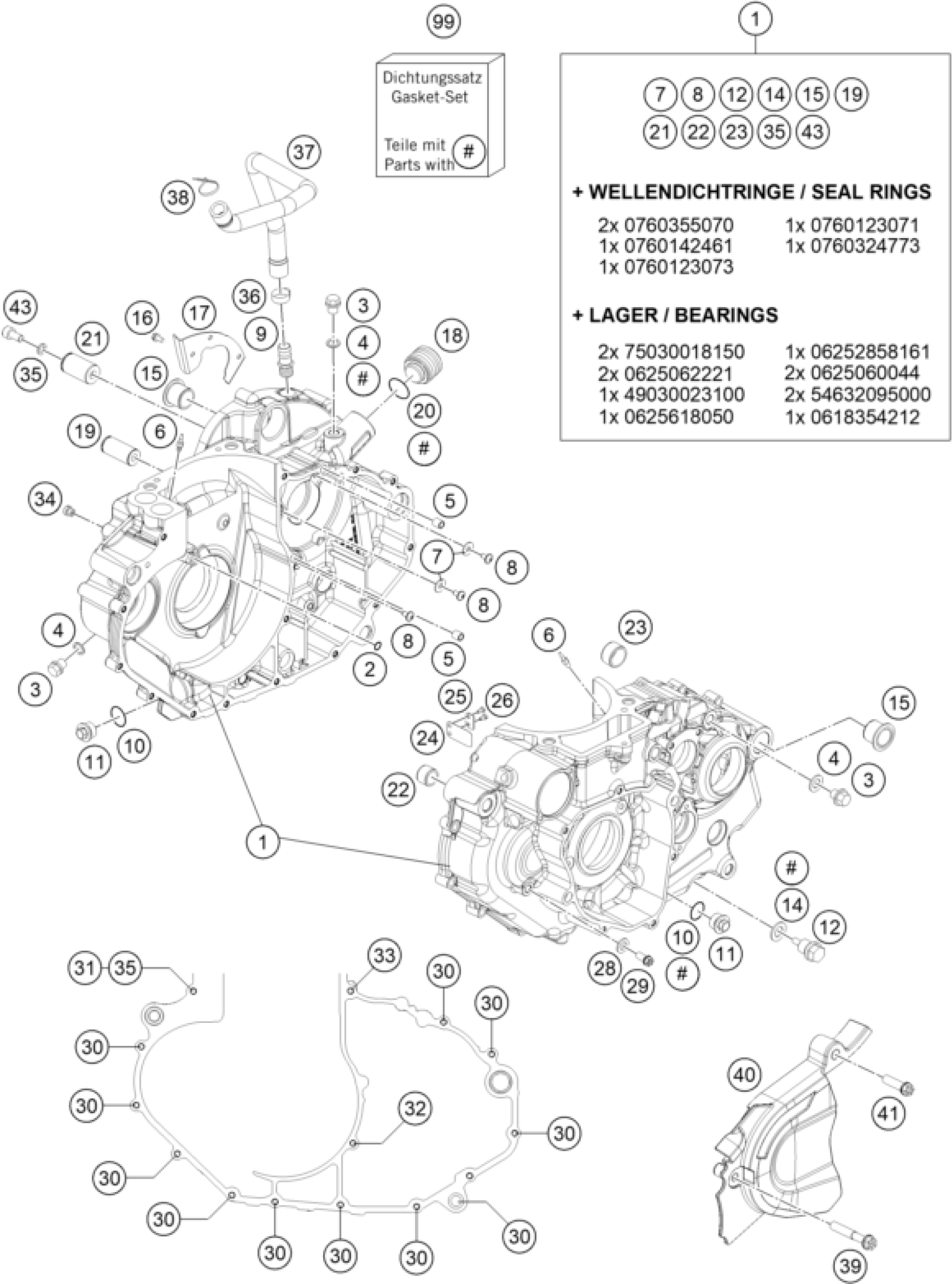

KTM 690 SMC R ABS 2016 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL.
7603000033324
$989.84
2
O-RING 6,07X1,78 FPM75
0770060018
$2.05
3
PLUG DIN0910-M 10X1
0910100003
$4.11
4
sealing ring DIN 7603 10x14x1
0603100141
$2.05
5
dowel sleeve 6x8x11.5
59030023000
$1.49
6
OIL JET 50 M6X0,75 WS8 05
60030064050
$10.65
7
washer DIN 9021 A - 5.3
0021050003
$1.49
8
PAN HEAD SCREW M5X10 TX25
073800501002
$1.49
9
VENTILATION CONNECTOR M16X1,5
60030022000
$8.31
10
o-ring 18.00x2.00 NBR70
0770180020
$2.05
11
PLUG M20X1,5 WS=13
59038017100
$7.85
12
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
14
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
15
Housing bush
79230010000
$11.87
16
AH SCREW DIN7984 M5X10 A2
07984050100
$1.49
17
COVER
75030042000
$19.44
18
LOCK PIECE
75038048100
$30.85
19
BUSHING PIN
54633018400
$21.87
20
o-ring 18.00x2.00 NBR70
0770180020
$2.05
21
BUSHING PIN
59040028000
$10.46
22
DOWEL 17 X 13 X 12
51030026100
$6.44
23
DOWEL 21X12 03
54830027000
$5.23
24
MEMBRANE 07
75030003051
$2.24
25
STOP SHEET MEMBRANE 07
75030003050
$2.05
26
CYLIND.SCREW M3X8 ISO 14580 SS
0458030080
$3.08
28
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
29
HH COLLAR SCREW M8X16 TX40
0025080166
$4.11
30
HH collar screw M6x30 TX30
0025060306
$3.08
31
HH collar screw M6x25 TX30
0025060256
$3.08
32
HH COLLAR SCREW M6X70 TX30
0025060706
$3.08
33
HH COLLAR SCREW M6X80 TX30
0025060806
$2.05
34
JET 125
75030058000
$5.23
35
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
36
CLAMP STD DN22
00049220121
$2.05
37
BREATHER HOSE
76530089100
$17.20
38
Cable tie 200/4.6mm black
44011076200
Unavailable
39
HH collar screw M6x40 TX30
0025060406
$3.08
40
CHAIN GUARD CPL. 08
76530060044
$13.08
41
HH collar screw M8x35 TX40
0025080356
$4.11
99
GASKET SET LC4 2007
75030099000
$204.85
43
AH SCREW DIN0912-M 6X12
0912060123
$3.08
