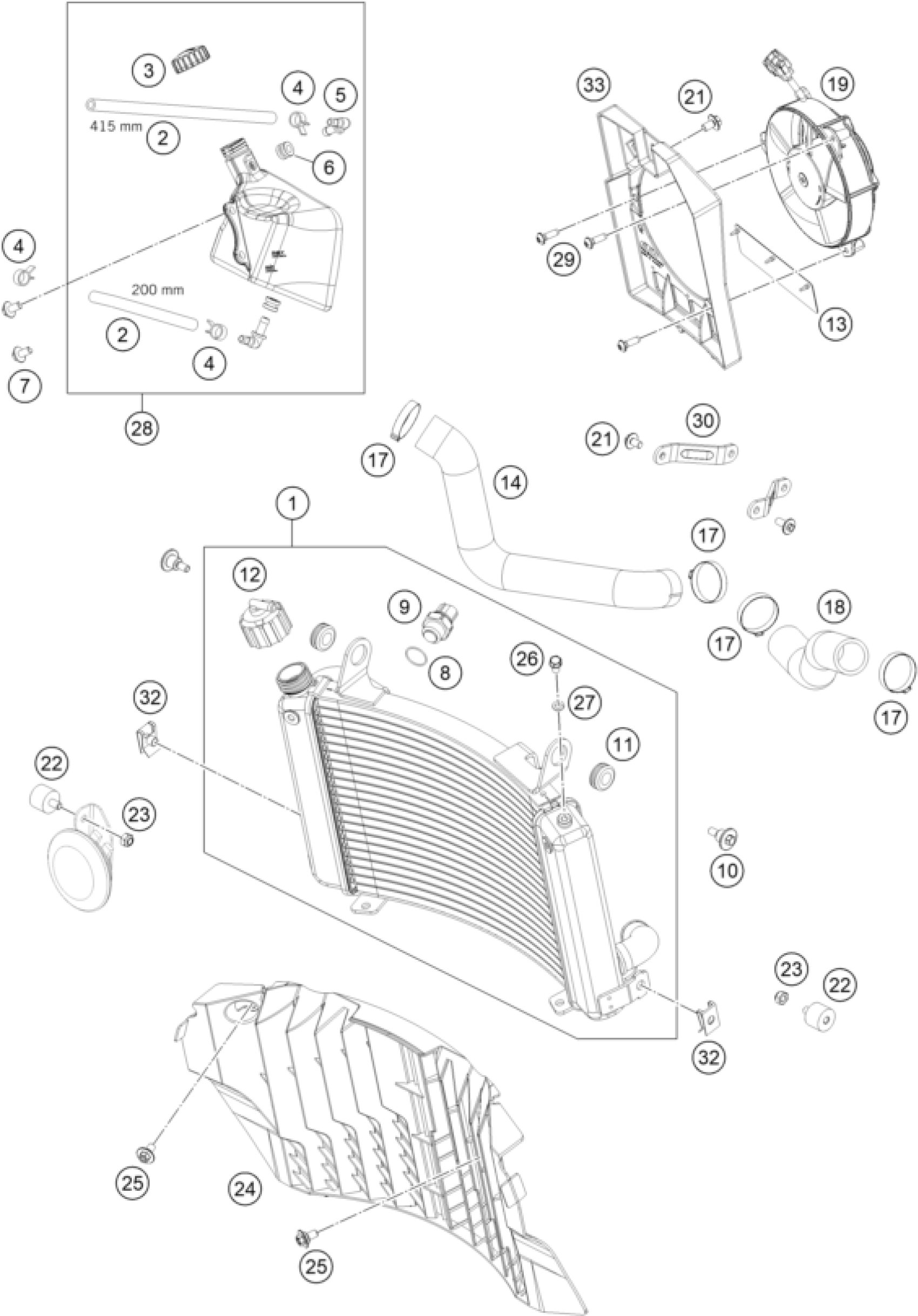

KTM 690 SMC R ABS 2016 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR

76535010300

$427.19

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

Latch, compens. tank cpl.

60335066044

$6.72

4

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

5

Angle piece, reservoir

60035068000

$3.08

6

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

7

COLLAR SCREW M6X12 TX

0023060123

$2.05

8

O-ring 17X1.5

0770017015

$1.49

9

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

10

Special screw M6x24 WS=8

60038083000

$3.08

11

RUBBER SLEEVE D=12MM

41001052000

$4.11

12

RADIATOR CAP 1,4 BAR

62535009000

$25.42

13

FAN CLACK RUBBER 08

62635044050

$8.03

14

COOLING HOSE

76535025100

$18.22

17

VARIABLE ONE-EAR CLAMP 32,5MM

00050325706

$4.11

18

RADIATOR HOSE 08

76535024000

$24.68

19

VENTILATOR

62635041000

$142.39

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

RADIATOR GUARD

76535140000

$24.02

25

special screw M6x12x3

83008000012

$3.08

26

HH collar screw M6x12 TX30

0025060126

$3.08

27

ALU-GASKET 6X10X1.5

60035048000

$3.08

28

EXPANSION TANK CPL. 07

76535065000

$29.82

29

EJOT PT SCREW K50X16 1451

0081050161

$1.49

30

RETAINING PLATE RADIATOR 08

76535001000

$10.37

32

clip nut M6

54603048100

$4.11

33

FAN COVER

75335044000

$7.28
