Description

Price

1

THROTTLE BODY

76041001000

$657.48

2

MAP SENSOR CPL. 07

75041085044

$179.98

3

FUEL RAIL ASSY SET 07

75041013044

$104.80

4

FUEL INJECTOR ASSY SET

76041023044

$203.35

15

O-RING

75041085010

$6.07

16

PLATE, STAY

75041085020

$5.23

17

SCREW WASHER

75041085030

$3.08

18

O-RING 7,2x2,2

75041023020

$9.06

19

SCREW SHOULDER

75041013060

$6.72

20

SCREW SHOULDER

75041013010

$6.63

21

SEAL RING

75041023010

$11.49

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

23

PRESSURE SENSOR 06

61041085100

$144.36

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

25

ROLLOVER SENSOR 05

61041088000

$67.69

26

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.49

27

AH SCREW DIN0912-M 4X25

0912040253

$1.49

28

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

29

EJOT PT screw K50x12

0081050121

$2.05

30

ELECTRONIC CONTROL UNIT

76041031000

$582.87

31

ECU RUBBER BRACKET

76541030000

$16.54

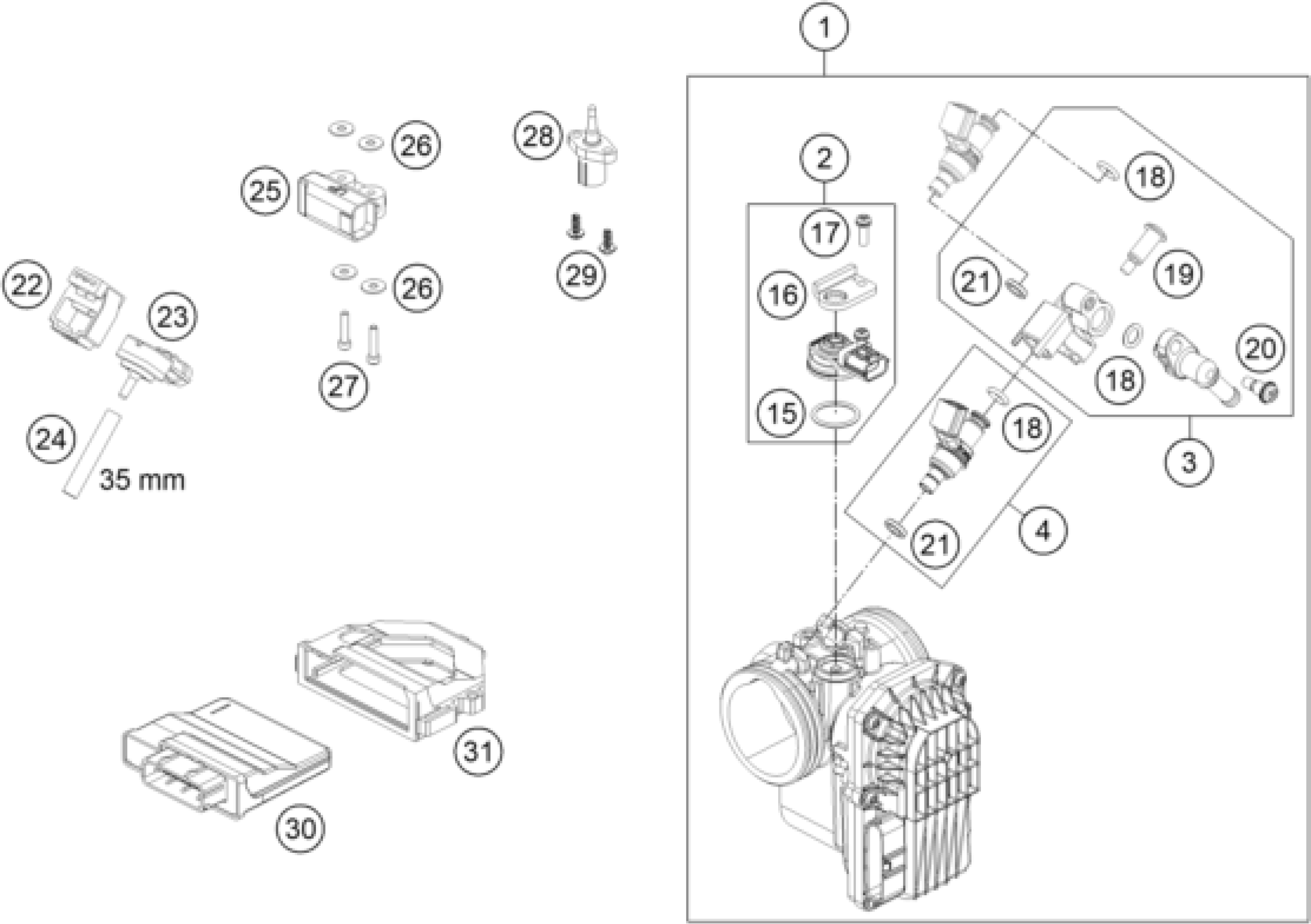

KTM 690 SMC R ABS 2015 THROTTLE BODY Diagram

THROTTLE BODY

MAP SENSOR CPL. 07

FUEL RAIL ASSY SET 07

FUEL INJECTOR ASSY SET

O-RING

PLATE, STAY

SCREW WASHER

O-RING 7,2x2,2

SCREW SHOULDER

SCREW SHOULDER

SEAL RING

RUBBER SUPP. PRESSURE SENS. 06

PRESSURE SENSOR 06

HOSE 3,2X8,5 PER METER

ROLLOVER SENSOR 05

SHIM 4,3X15X1,25MM GALVANIZED

AH SCREW DIN0912-M 4X25

AMBIENT-AIR TEMPERATURE SENSOR

EJOT PT screw K50x12

ELECTRONIC CONTROL UNIT

ECU RUBBER BRACKET
