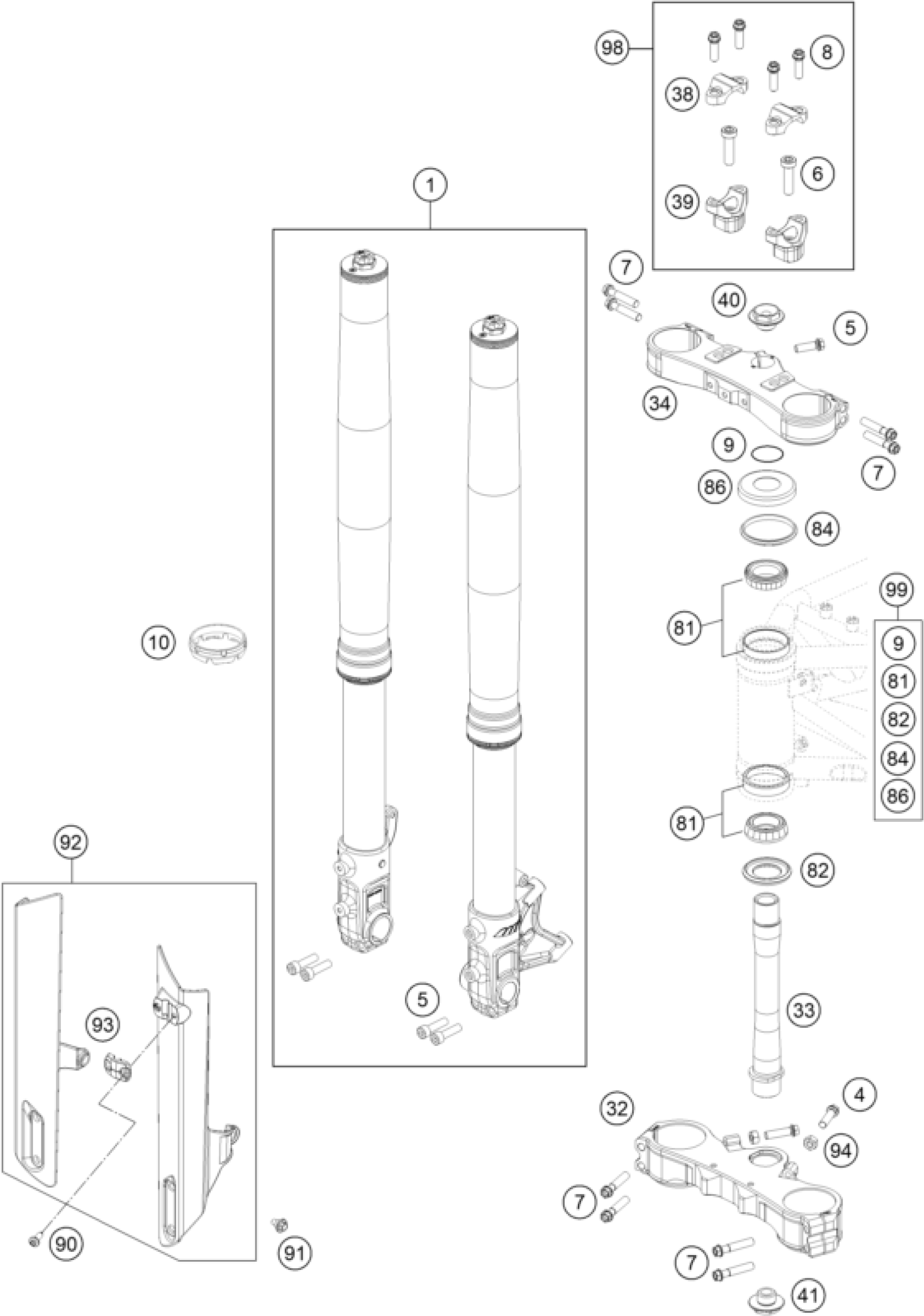

KTM 690 SMC R ABS 2015 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

7

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

1

FORK 690 SMC

14188N1201

Unavailable

4

HH SCREW DIN0933-M 8X25

0933080253

$2.05

5

HH collar screw M8x30

0025080306

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

9

O-RING 25X3,55 NBR70 05

0770025035

$1.49

32

BOTTOM TRIPLE CLAMP

7650113113504

Unavailable

33

FORK TUBE L=237MM 08

76501033000

$120.42

34

TOP TRIPLE CLAMP

7650113413504

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H42mm

59401039042

$36.27

40

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

41

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50

90

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT. L/S +R/S BLACK M

7650109410033

Unavailable

93

CLAMP F. SPEED.CABLE BLACK M.

7650108510033

Unavailable

94

Hexagon nut DIN934 M8

0934080003

$2.05

98

HANDLEBAR SUPPORT KIT 690 SMC

59401039010

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

8

HH collar screw M8x25

0025080256

$2.05

10

Fork protection ring 62,1mm

48600698

$9.34
