Description

Price

1

IGNITION COVER 07

75030002000

$78.91

2

DOWEL 9,8 X 7 X 10

49030090000

$2.05

3

generator line bracket

60039040020

$3.08

4

o-ring 24.00x2.50 Viton

07700240251

$3.08

5

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

6

IGNITI.COVER GASKET 07

75030040000

$7.28

7

STATOR

75039004100

$158.47

8

INSET

76036075050

$7.10

9

ROTOR

75039005200

$245.34

10

HH collar screw M6x16 TX30

0025060166

$3.08

11

STICK COIL HOLDER

76036075000

$10.84

12

STICK COIL

76039006000

$97.14

13

o-ring 18.00x2.00 NBR70

0770180020

$2.05

14

SPARK PLUG M12X1,25 ''8''

60139093000

$24.96

15

HH collar screw M6x25 TX30

0025060256

$3.08

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

PULSER COIL

75039034000

$66.75

18

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

19

SPARK PLUG NGK ''LMAR7A-9''

69139093000

$46.84

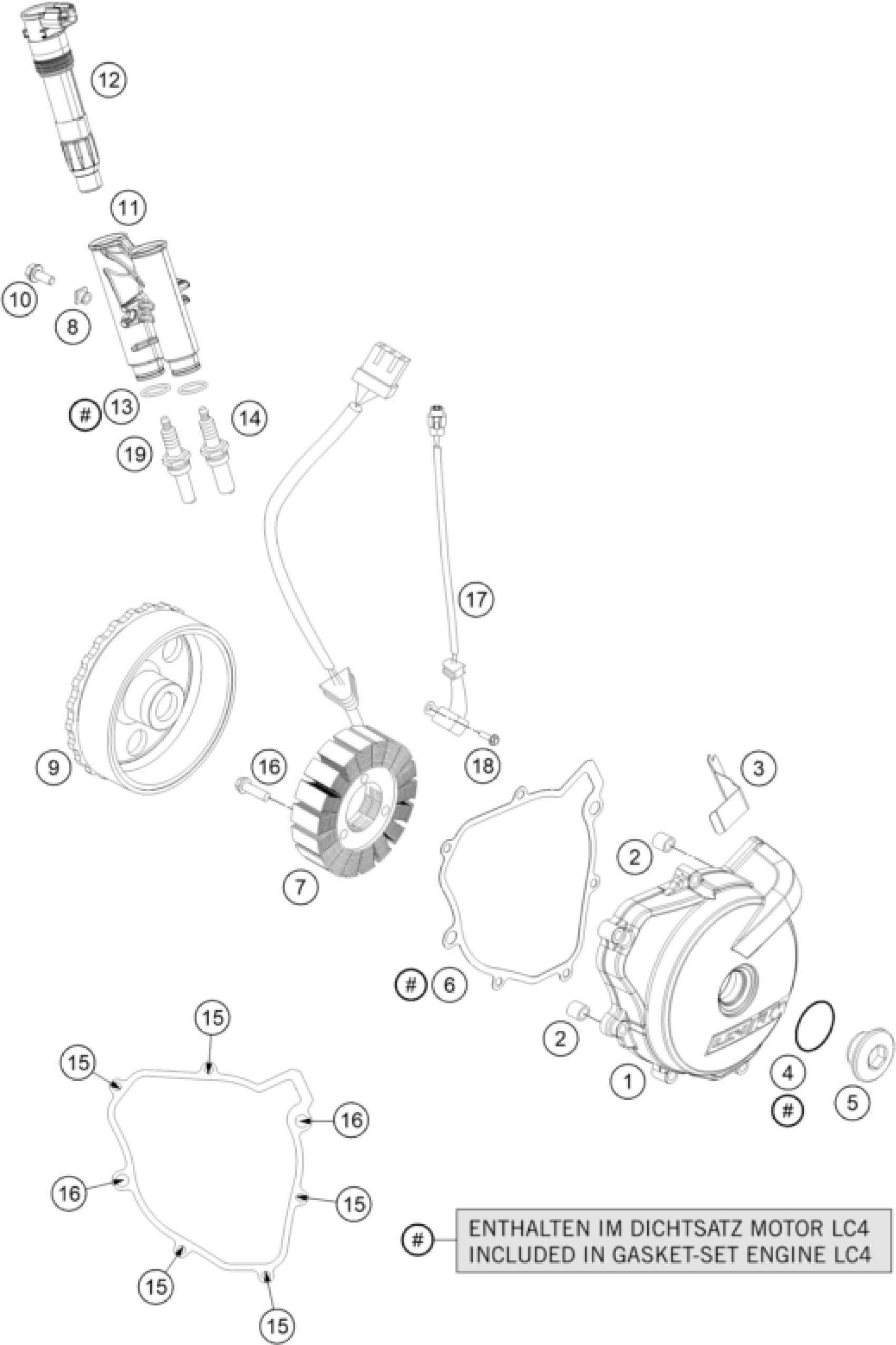

KTM 690 SMC R ABS 2014 IGNITION SYSTEM Diagram

IGNITION COVER 07

DOWEL 9,8 X 7 X 10

generator line bracket

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

IGNITI.COVER GASKET 07

STATOR

INSET

ROTOR

HH collar screw M6x16 TX30

STICK COIL HOLDER

STICK COIL

o-ring 18.00x2.00 NBR70

SPARK PLUG M12X1,25 ''8''

HH collar screw M6x25 TX30

HH collar screw M6x30 TX30

PULSER COIL

SPECIAL SCREW M6X16 WS=8 10.9

SPARK PLUG NGK ''LMAR7A-9''
