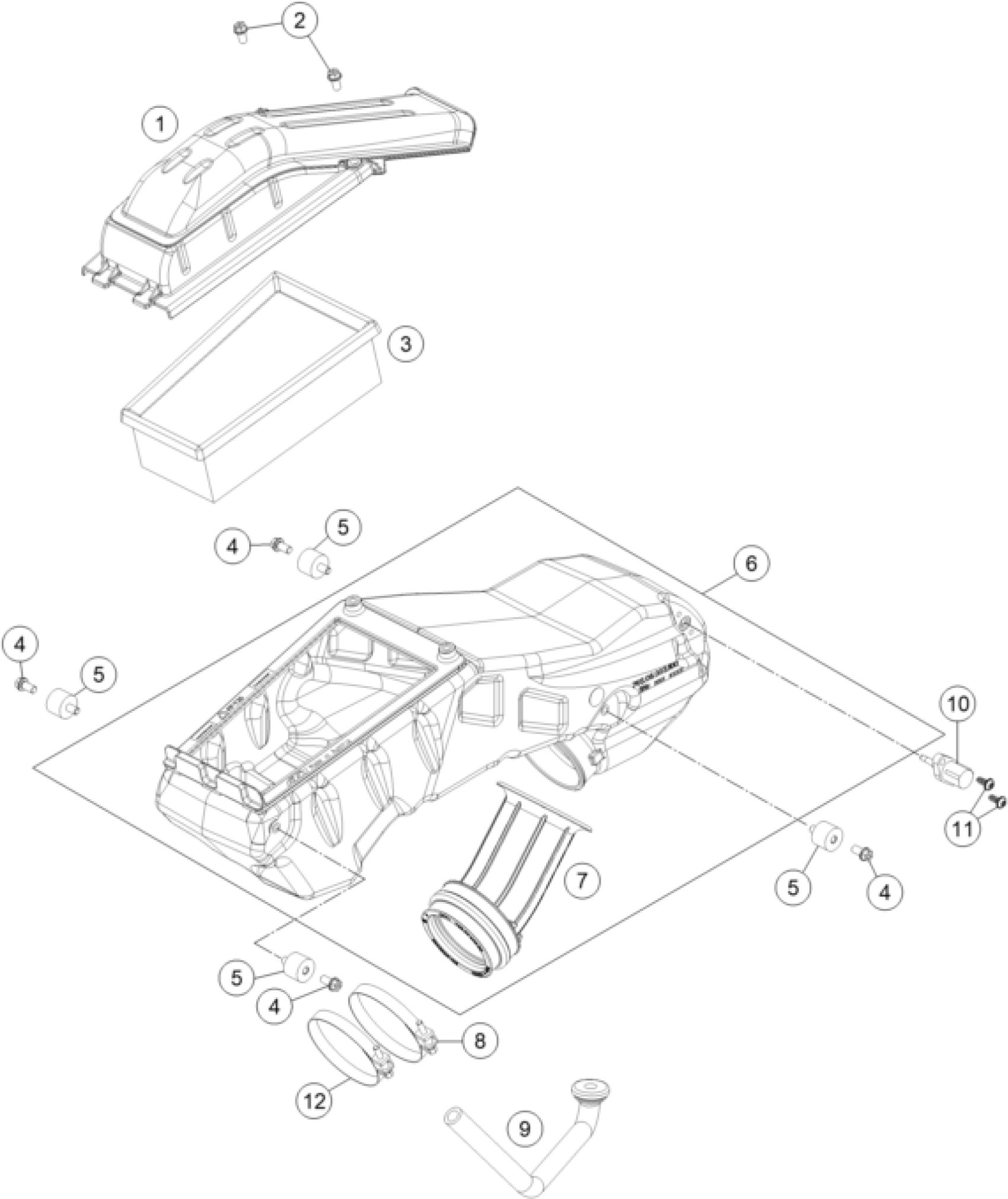

KTM 690 SMC R ABS 2014 AIR FILTER Diagram

#

Description
Price

1

FILTER BOX-TOP PART 08

76506002000

Unavailable

2

HH collar screw M6x12 TX30

0025060126

Unavailable

3

AIRFILTER PAPER 200X120

76506015000

Unavailable

4

HH collar screw M6x8 TX30

0025060086

Unavailable

5

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

6

FILTER BOX WITH INTAKE FLANGE

76506003144

Unavailable

7

INTAKE FLANGE

76506026100

Unavailable

12

HOSE CLAMP 50-70MM

51006027000

Unavailable

8

HOSE CLAMP 60-80MM

55006028000

Unavailable

9

VENTILATION OIL SEPARATOR FOAM

76530087100

Unavailable

10

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

11

EJOT PT screw K50x12

0081050121

Unavailable
