Description

Price

1

LAMP HEAD

A60314001000

Unavailable

4

Turn signal SAE front right/re

A61014526100

$61.70

5

Turn signal SAE front left/rea

A61014525100

$61.70

6

Washer DIN0433-M10

0433100003

$1.49

7

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

8

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

9

license plate lighting

60314047000

$35.62

10

EJOT PT screw K50x12

0081050121

$2.05

11

EJOT PT screw 50x20 T25

0081050203

$1.49

12

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

13

Serrated lck washer, DIN 6798-

006798050103

$1.49

14

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

15

Tail light

63514040000

$169.60

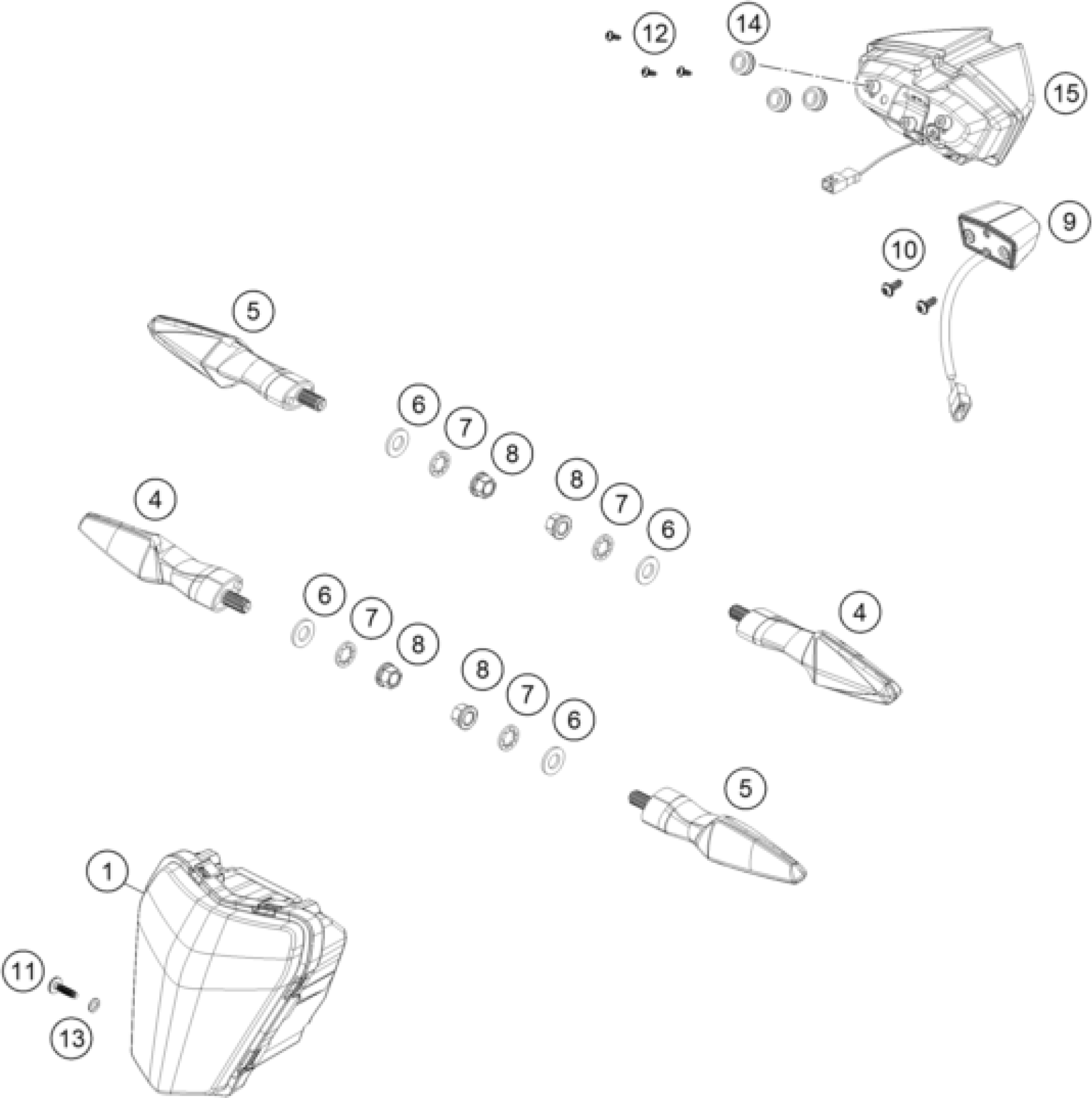

KTM 690 SMC R 2026 LIGHTING SYSTEM Diagram

LAMP HEAD

Turn signal SAE front right/re

Turn signal SAE front left/rea

Washer DIN0433-M10

LOCK WASHER DIN6797-J10,5 ZI

HH COLLAR NUT M10X1,25 WS=13

license plate lighting

EJOT PT screw K50x12

EJOT PT screw 50x20 T25

EJOT DELTA PT SCREW 45X12-Z

Serrated lck washer, DIN 6798-

rubber grommet 9x11x16x8.5 mm

Tail light
