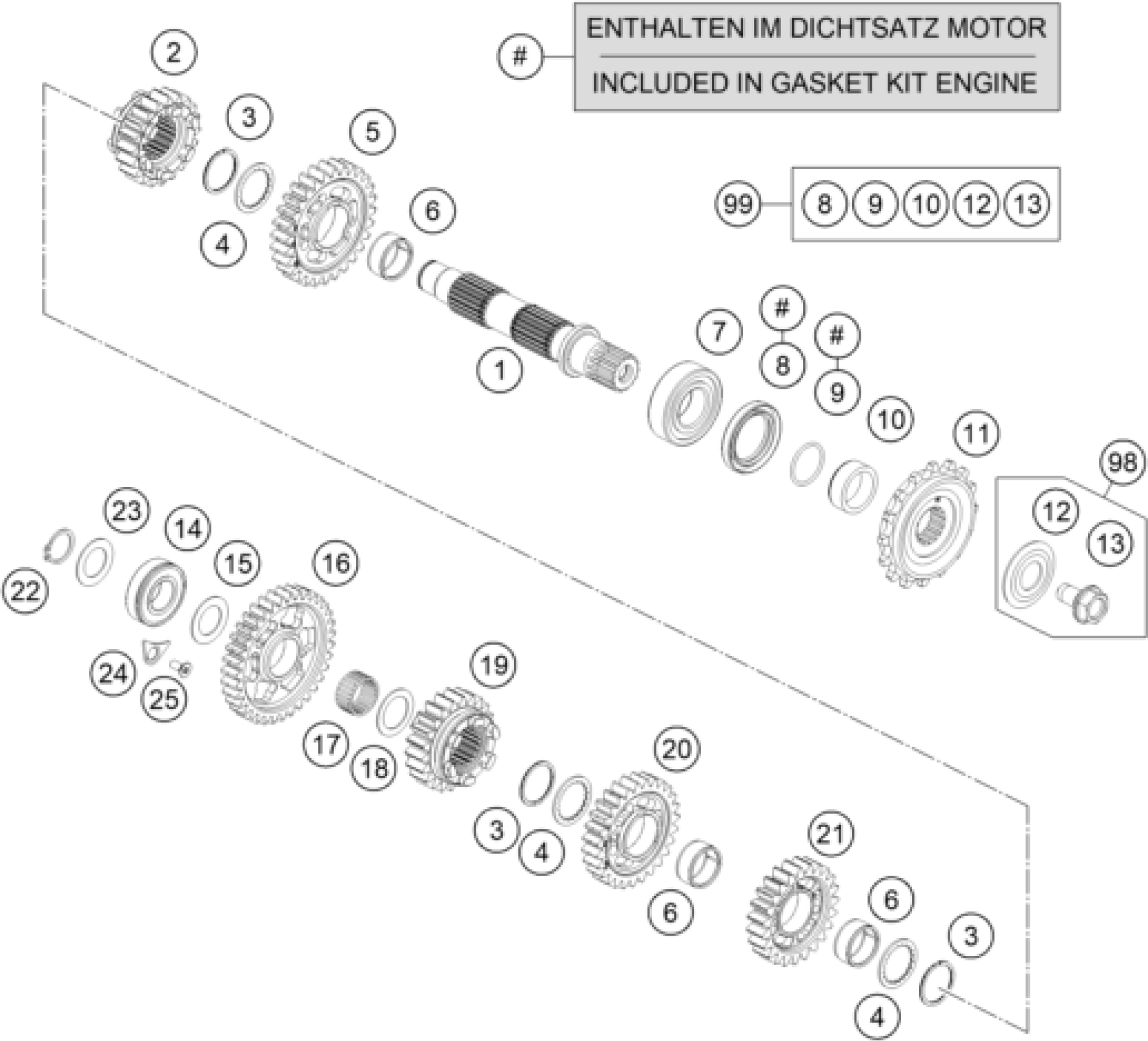

KTM 690 SMC R 2026 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

counter shaft

76633110000

$65.07

2

sliding gear 6th gear

76633116000

$43.56

3

CIRCLIP XDNS-27

0471027000

$20.66

4

Stop disc 24.6x33x1.5

76633140000

$3.08

5

idler gear 2nd gear

76633112000

$42.16

6

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

$18.50

7

CYL.ROLLER BEARING NJ205 C4

49030023100

$63.66

8

Radial shaft seal 32x47x7 FKM7

0760003247001

Unavailable

9

O-RING 25,12X1,78 NBR70

0770020220

$3.08

10

spacing tube front sprocket

76633130012

Unavailable

11

Engine sprocket 15-t, damped

58033029115

Unavailable

11

Sprocket 16-t, damped

58033029116

Unavailable

12

Spring washer 17.2X40X1.5

59033034000

$2.89

13

HH COLLAR SCREW M10X18 10.9

59033029000

$1.77

14

BALL BEARING 6004 DDUN C4

0625060044

$12.99

15

Stop disc 20x31.9x1

0690002000101

$2.05

16

idler gear 1st gear

76633111000

$36.64

17

Needle bearing 22x26x13

0400002201300

$6.91

18

stop disc 22.2/31.7/1

63533032000

$3.08

19

sliding gear 5th gear

76633115000

$41.79

20

idler gear 3rd gear

76633113100

$38.89

21

idler gear 4th gear

76633114000

$36.83

22

CIRCLIP DIN471 20X1,2

0471200120

$2.05

23

Shim 20x31.9x1

59033080000

$2.05

24

Retaining bracket crankshaft b

75030085100

$1.49

25

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

98

SCREW 10.9+SPRING WASHER

59033034044

$7.85

99

Repair kit countershaft

76633110010

Unavailable
