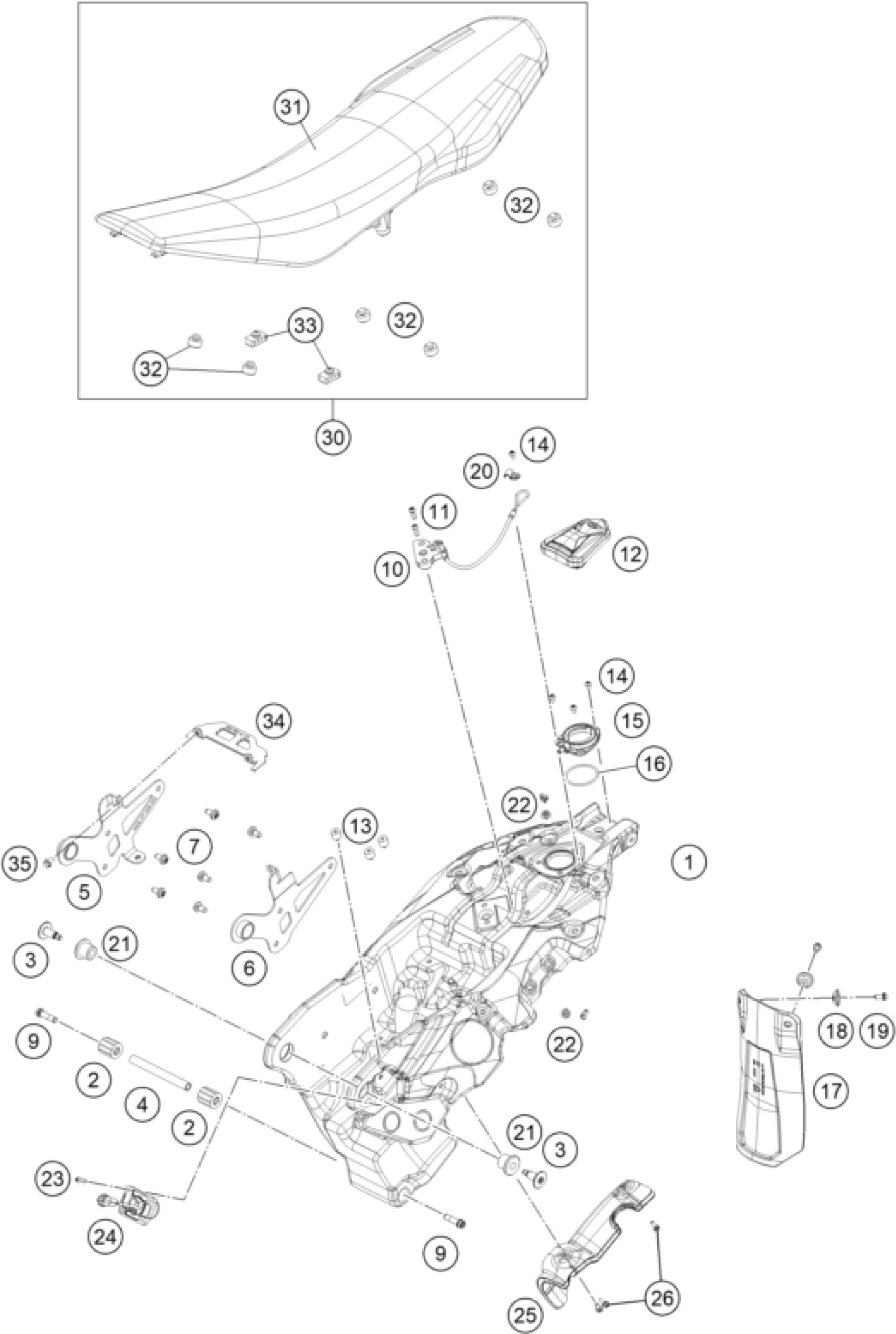

KTM 690 SMC R 2026 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank

A60607013000

Unavailable

2

RUBBER BUSHING 11,7X24,7 L=26

76507065100

Unavailable

3

Bearing sleeve, top

76507060300

Unavailable

4

Bearing sleeve, bottom

76507061100

Unavailable

5

tank mounting plate right cpl.

A60607028000

Unavailable

6

Tank retaining plate, left, cm

76107027000

Unavailable

7

cap head bold ISO 14583-M8x16-

0145830801600

Unavailable

9

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

10

Rider seat lock cpl.

61707052000

Unavailable

11

oval head screw M6x18 A2-70 S

0738060185S

Unavailable

12

Fuel tank cap

76907008000

Unavailable

13

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

14

SCREW TORX M5X10 05

58605083010

Unavailable

15

Closure flange

76507108050

Unavailable

16

O-ring 50.00X3.00 VITON

0770050030

Unavailable

17

Splash protection

76506010100

Unavailable

18

Supporting shell

72210079100

Unavailable

19

HH collar screw M6x10 TX30

0025060106

Unavailable

20

Fastening clamp

0320001400800

Unavailable

21

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

Unavailable

22

Cable strap w.plug-in foot for

61711094100

Unavailable

23

Oval head screw ISO 7380-1 M5x

0738050202S

Unavailable

24

Fuel level sensor

A60607080000

Unavailable

25

Heat protection rear tank

A60605090000

Unavailable

26

HH collar screw M5x12 TX30

0025050126

Unavailable

30

Seat

76107040000HDA

Unavailable

31

Seat cover

76907040050HDA

Unavailable

32

Seat rubber

76907040045

Unavailable

33

Rubber support

28503002010

Unavailable

34

Retaining bracket battery cmpl

76111056044

Unavailable

35

HH collar screw M6x15 TX30

0024060156

Unavailable
