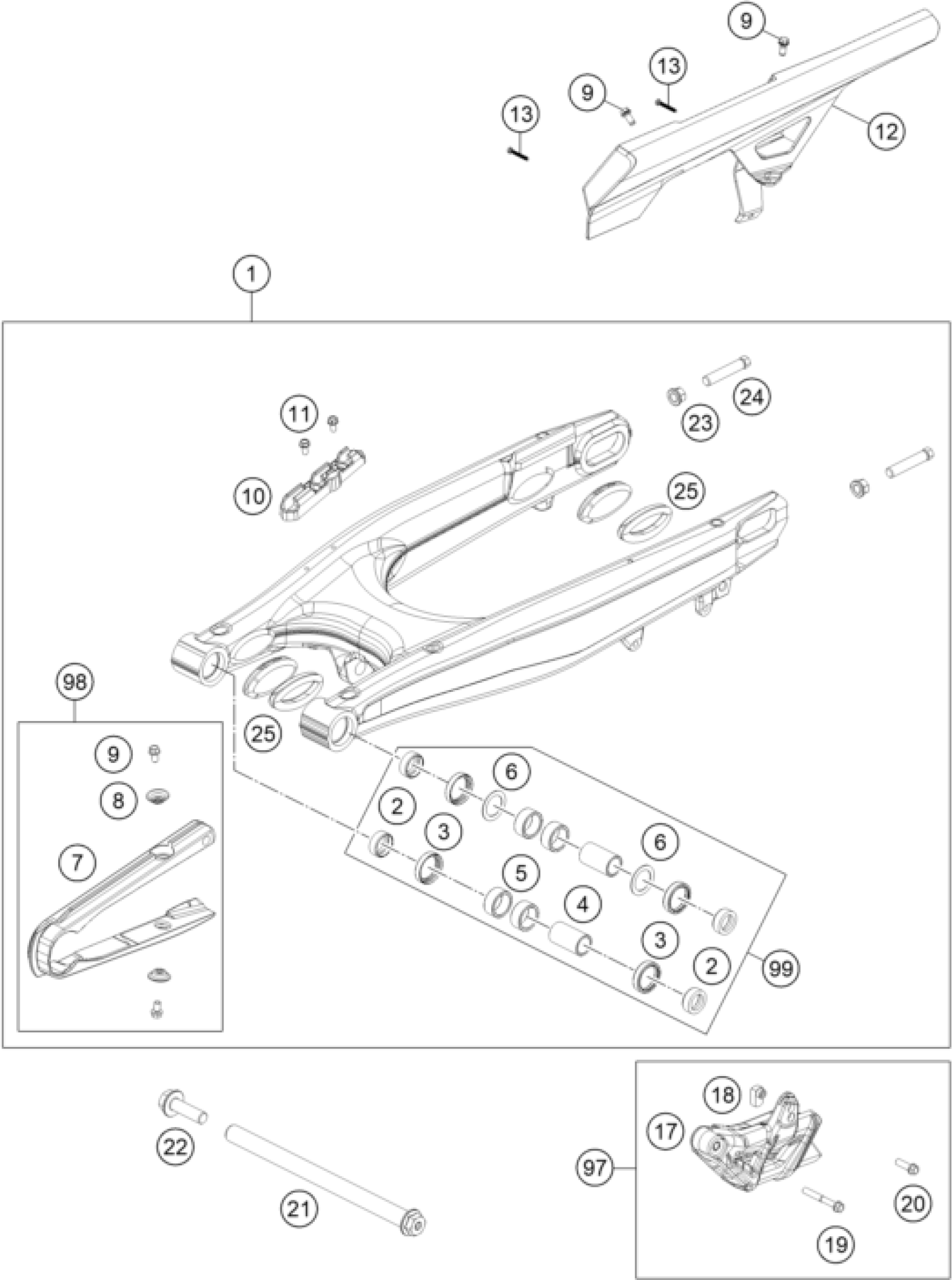

KTM 690 SMC R 2026 SWING ARM Diagram

#

Description
Price

1

Swingarm cpl.

A60604030044

Unavailable

2

BUCKET FOR SHAFT SEAL RING

76504034000

$5.70

3

radial shaft seal 25x32x7

0760253270

$6.63

4

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

5

Needle bushing HK2212V 22/28/1

0618222812

$9.81

6

stop disc 22.2/31.7/1

63533032000

$3.08

7

Chain sliding guard 07

76504066000

$16.17

8

Chain slider bushing

77304066150

$1.49

9

Hex collar screw M6x12 ISA30 s

0025060126S

$1.49

10

Brake line guide

A60604042000

Unavailable

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

12

Chainguard

76904060000

$19.53

13

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

17

CHAIN GUIDE CPL.

78004070100

$43.94

18

INSERTION NUT F. CHAIN GUIDE

77304070030

$8.87

19

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

20

HH collar screw M6x20 TX30

0025060206

$3.08

21

Swingarm pivot, L=246, M12x1.5

75304037144

$66.75

22

Special screw M12x40 WS19

76504038000

$18.13

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

24

screw M10x1.25x50 WS10

50304040100

$5.23

25

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

97

Chain guide kit

77304070310

Unavailable

98

CHAIN GUARD KIT 08-14

76504066010

Unavailable

99

SWINGARM REPAIR KIT 08-13

76504230010

Unavailable
