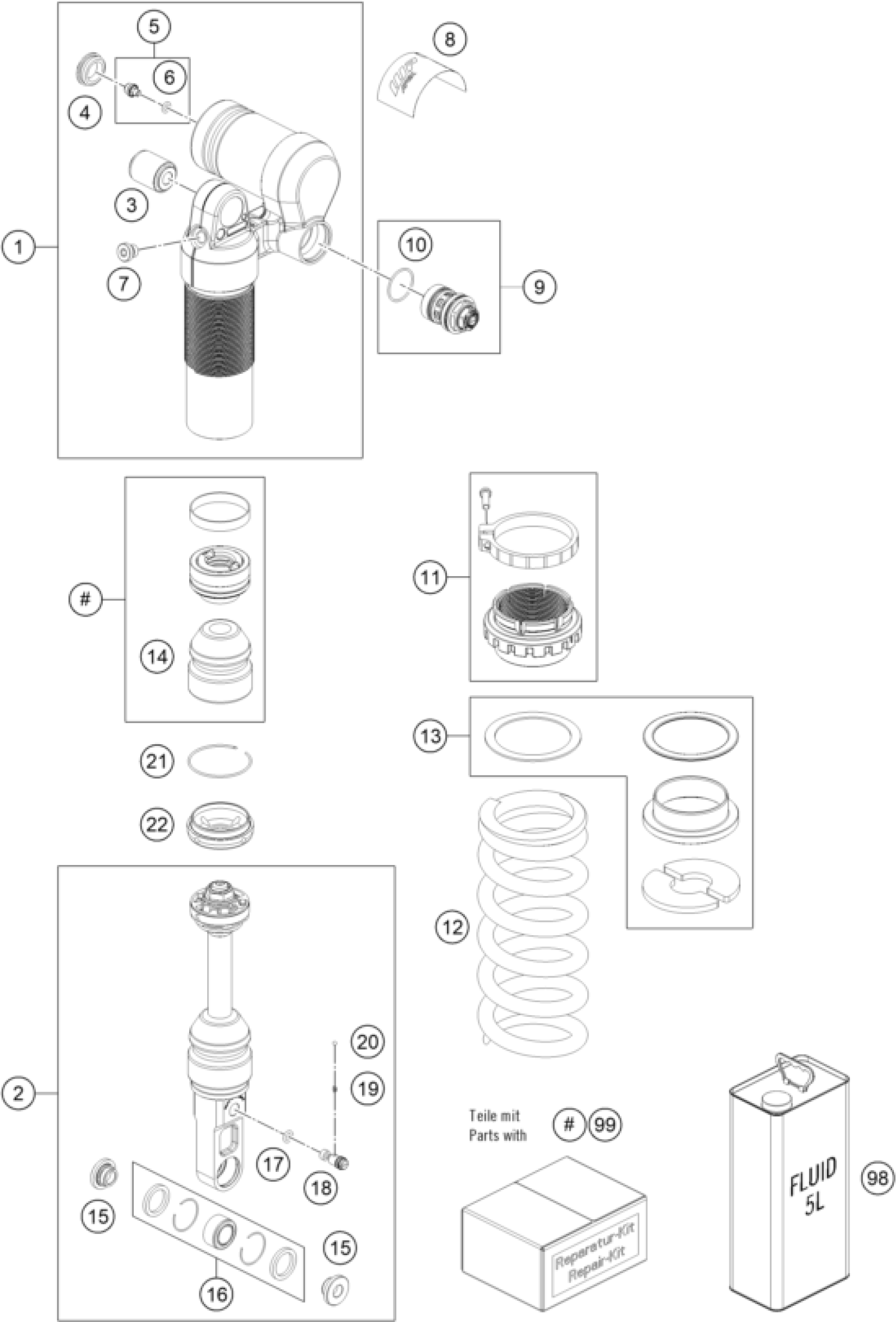

KTM 690 SMC R 2026 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock upper part cpl. KTM 690

S454600021S0000

Unavailable

2

Rod link M18x1 h81,5 cpl.

46181286S3

Unavailable

3

Silentblock 10,05x25x32

14460161

$15.33

4

Rubber cap do not open 22x5,5

46811208

$3.08

5

PLUG SCREW M5X6 CPL.

36120151ST

$4.11

6

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

$1.49

7

HS cylinder-head screw R1/8 l8

50180095

$2.42

8

Sticker APEX 90x40

52000215

$26.73

9

Compression adjuster cpl. Blac

50180213S39

Unavailable

10

O-ring 25x1,5 Viton70

50180218

$2.05

11

Plastic Spring Retainer d46 cp

46181369S

$32.81

12

SPRING 225MM 69 N/MM

91010338S

Unavailable

12

SPRING 220MM 75N/MM (61)

91110003S

$150.90

12

Mainspring (59/61) 81-225 damp

91010367

Unavailable

13

Repair kit spring retainer

RP10023T

Unavailable

14

Rubber pad 17x50x54

50181080

$23.65

15

Distance bush 10x15/18/24,5x10

46180010

$4.11

16

Ball joint bearing kit top 12m

R12012T

Unavailable

21

round-wire snap ring 49x1,75

S23902000000000

$24.22

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit ADV. R

RP10013T

Unavailable

22

Cover 46,12x15 h5,5 red

46181351

$27.67

17

O-ring 6x2 Viton70

50180221

Unavailable

18

Adjustment screw slot

50181094

Unavailable

19

Spring (1,6) l4,8 locking spri

48600522

Unavailable

20

Steel ball d3

40540603

$1.49
