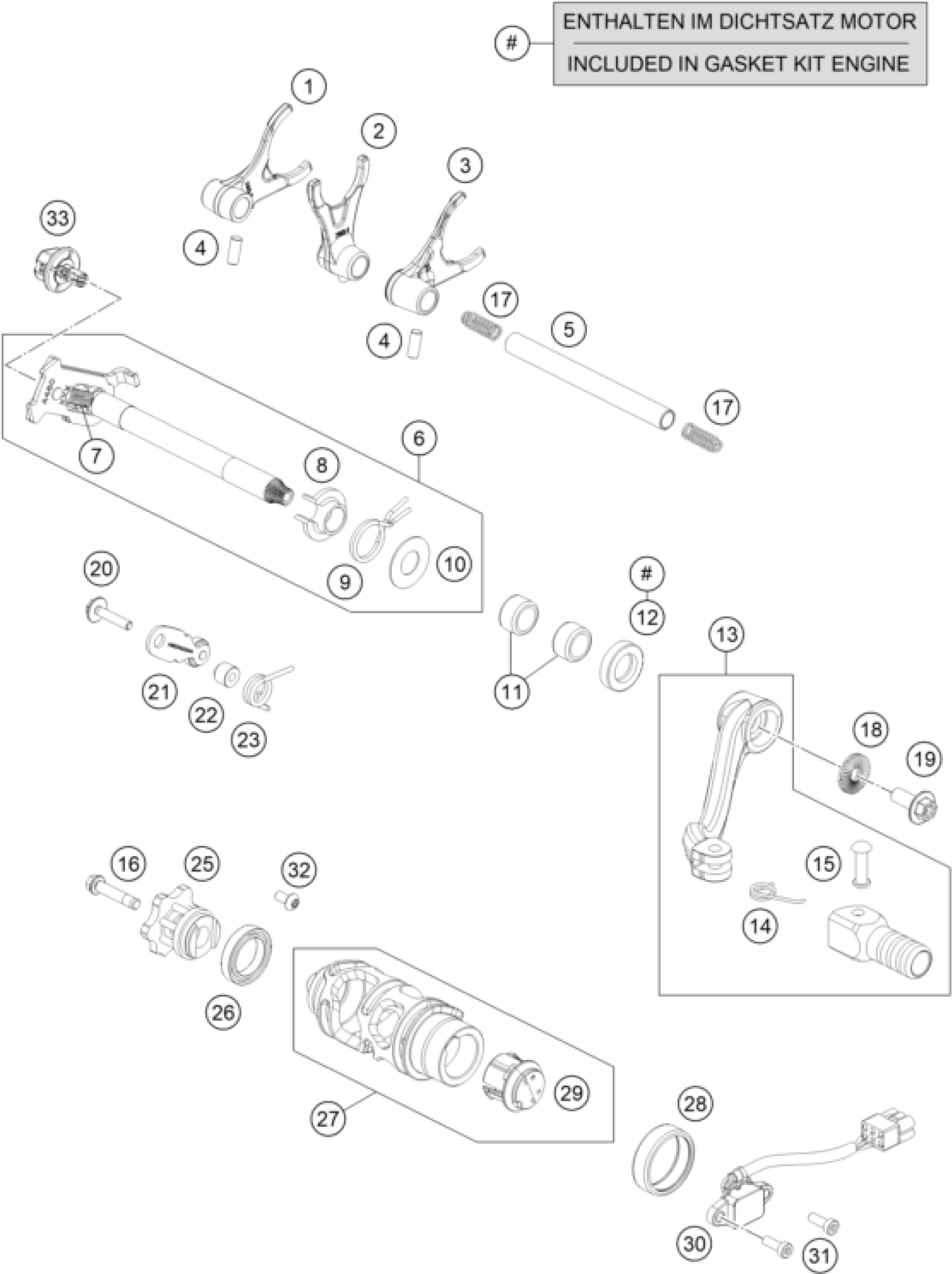

KTM 690 SMC R 2026 SHIFTING MECHANISM Diagram

#

Description
Price

1

Shift fork, 5 gear

75034102100

Unavailable

2

Shift fork, 3-4 gear

75034101100

Unavailable

3

Shift fork, 6 gear

75034103100

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

Shift fork shaft

75034019200

Unavailable

6

Shift shaft cmpl.

A60634005033

Unavailable

7

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

RETURN SPRING 03

54834014000

Unavailable

10

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

radial shaft seal 14x24x6 B

0760142460

Unavailable

13

SHIFT LEVER CPL. 07

75034031000

Unavailable

14

SHIFTING LEVER SPRING

75034032000

Unavailable

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

16

HH collar screw M6x30 TX30

0025060306S

Unavailable

17

Compression spring L=25mm D=0.

58038023400

Unavailable

18

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

19

HH collar screw M6x15 TX30

0024060156S

Unavailable

20

HH collar screw, M5x25, ISA 30

0000240502500S

Unavailable

21

Detent arm cmpl.

A46034024044

Unavailable

22

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

23

Detent arm rotary spring

0102701300300

Unavailable

25

Shift star

A46034115000

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

shifting drum cpl.

A60634012033

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

29

Magnet bracket cmpl.

79234012020

Unavailable

30

Gear position sensor

A60011023000

Unavailable

31

Hex collar screw M5x12 ISA30 S

0025050126S

Unavailable

32

Oval head screw DIN 7985-M5x10

0018050103S

Unavailable

33

Magnet bracket

A64034050000

Unavailable
