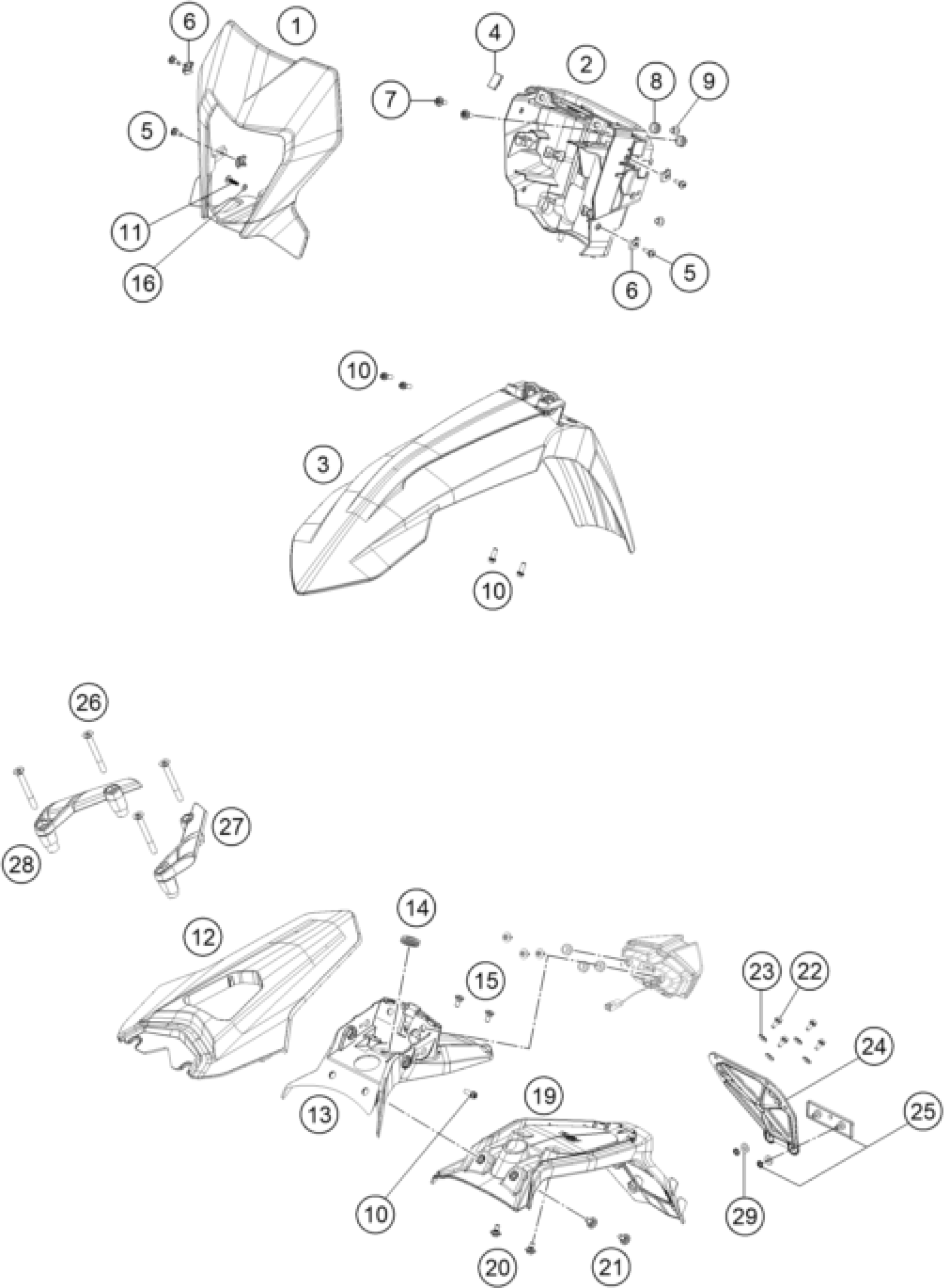

KTM 690 SMC R 2026 MASK, FENDERS Diagram

#

Description
Price

1

Head lamp mask

A60608001000EBA

Unavailable

2

Combi instrument holder

A60614060000

Unavailable

3

Front fender Supermoto

76908010000EB

Unavailable

4

Isolation pad

77307040041

Unavailable

5

special screw M5x17

69008021060

Unavailable

6

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

8

rubber grommet D=8mm open

31008060000

Unavailable

9

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable

10

HH collar screw M6x16 TX30

0025060166

Unavailable

11

EJOT PT screw 50x20 T25

0081050203

Unavailable

12

tail fender

76908013100EB

Unavailable

13

License plate holder, upper pa

76908015000

Unavailable

14

Rubber grommet, standby gas se

60006001023

Unavailable

15

special screw M6x14

69008021040

Unavailable

16

Serrated lck washer, DIN 6798-

006798050103

Unavailable

19

License plate holder, bottom p

76908016000

Unavailable

20

special screw M6x12x3

83008000012

Unavailable

21

SPECIAL SCREW M6X15X3

83008000015

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

Washer tail section UT D=14mm

75008023000

Unavailable

24

Bracket for reflector

64112181100

Unavailable

25

Rear reflector red

58412080400

Unavailable

26

HH collar screw M8x55 TX40

0025080556

Unavailable

27

passenger handle bar left

76912008000

Unavailable

28

passenger handle bar right

76912009000

Unavailable

29

RUBBER 14X6.5X2.3MM

60408061050

Unavailable
