Description

Price

1

Dashboard

T01114069000

Unavailable

2

RUBBER SLEEVE 7X10,8X16MM

76014069051

$2.05

4

Oval head screw ISO 7380-1 M5x

0738050202S

Unavailable

5

Combi instrument holder

A60614060000

Unavailable

3

Bushing, speedometer bracket

6071406905033

$4.11

13

KTM ignition key

76911067000

Unavailable

14

Lock kit cmpl.

76911066044

$227.94

15

Ignition Switch

27011066100

$160.34

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

17

o-ring 10.00x2.00 silicone

0770100020

$2.05

18

Fuel tank cap

76907008000

$261.14

6

USB-C power socket, 12-V

A62711043000

$60.58

20

Spare key

76911067010

Unavailable

21

RANGE CHANGE METAL NUT M5

54603048200

$5.23

19

Temperatur sensor

61111018100

$31.59

8

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

22

Ambient air pressure sensor

A61241085000

$221.03

23

Ambient air pressure sensor ru

A61241085050

$6.63

12

special screw M5x12

69008021160

$4.11

11

HH collar screw M6x15 TX30

0024060156

$3.08

9

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

10

rubber grommet D=8mm open

31008060000

$2.05

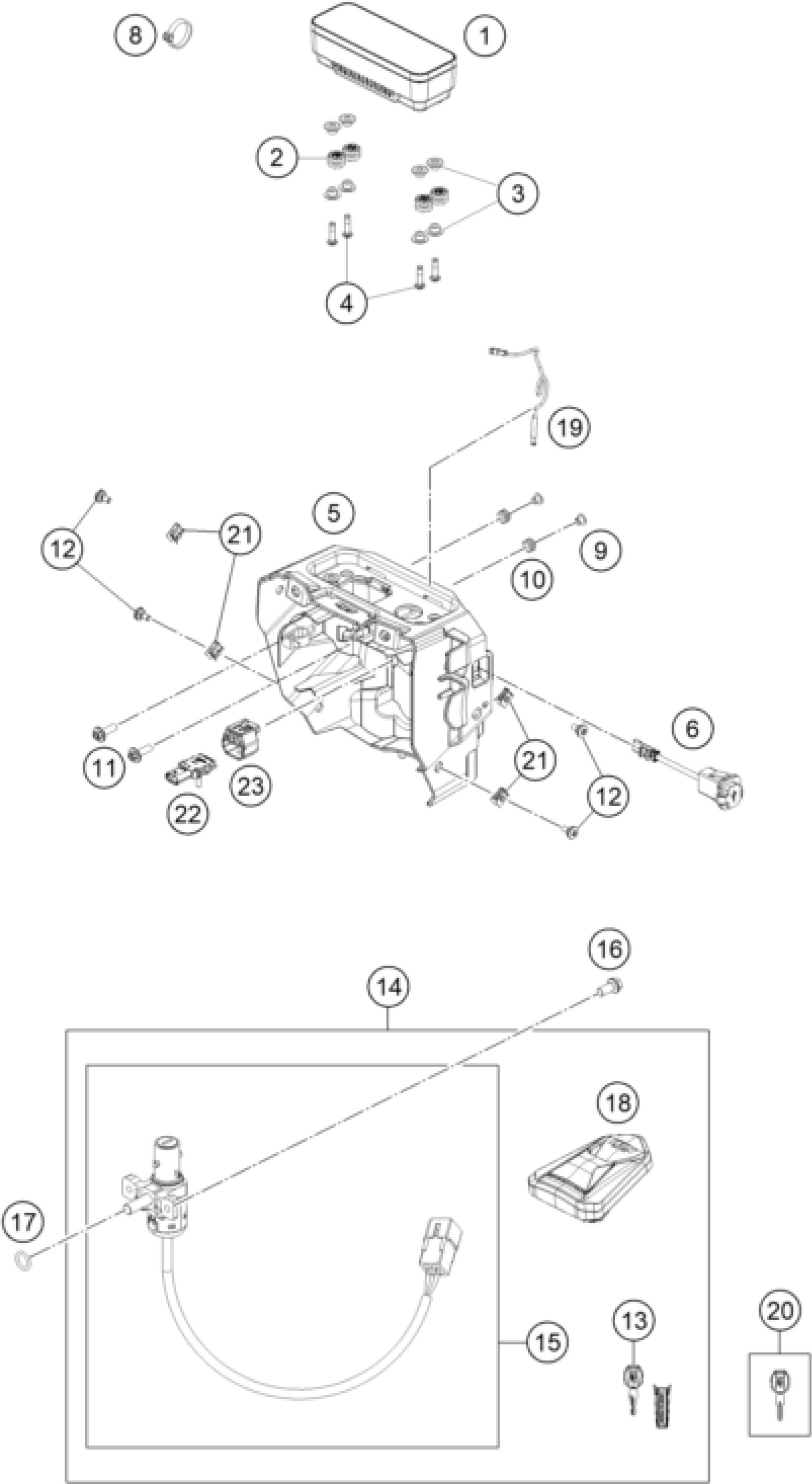

KTM 690 SMC R 2026 INSTRUMENTS / LOCK SYSTEM Diagram

Dashboard

RUBBER SLEEVE 7X10,8X16MM

Oval head screw ISO 7380-1 M5x

Combi instrument holder

Bushing, speedometer bracket

KTM ignition key

Lock kit cmpl.

Ignition Switch

SPECIAL SCREW M6X13 WS=8 10.9

o-ring 10.00x2.00 silicone

Fuel tank cap

USB-C power socket, 12-V

Spare key

RANGE CHANGE METAL NUT M5

Temperatur sensor

CABLE TIE 300/4,8MM BLACK

Ambient air pressure sensor

Ambient air pressure sensor ru

special screw M5x12

HH collar screw M6x15 TX30

COLLAR BUSHING 6,1X8,1X14X8 07

rubber grommet D=8mm open
