Description

Price

1

Ignition cover

A60630002000C1

Unavailable

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

3

generator line bracket

60039040020

$3.08

4

o-ring 24.00x2.50 Viton

07700240251

$3.08

5

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

6

Ignition cover gasket

A60630040000

Unavailable

7

Stator

A60639004000

Unavailable

8

HH collar screw M6x30 TX30

0025060306S

$3.08

9

Hex nut DIN0936-M18x1.5 right

0009361800800S

$7.38

10

LOCK WASHER VSK 18

58132072000

$2.05

11

Rotor

75039005300

$245.34

12

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

14

SPARK PLUG M12X1.25

60439093000

$27.85

17

INSET

76036075050

$7.10

18

HH collar screw M6x16 TX30

0025060166

$3.08

15

SPARK PLUG

60439094000

$29.91

19

STICK COIL

76039006000

$97.14

20

Alu. ISR screw M6x30

0900000603002

Unavailable

13

Crankshaft position sensor

A60639034000

Unavailable

16

STICKCOIL HOLDER

76636075000

$15.14

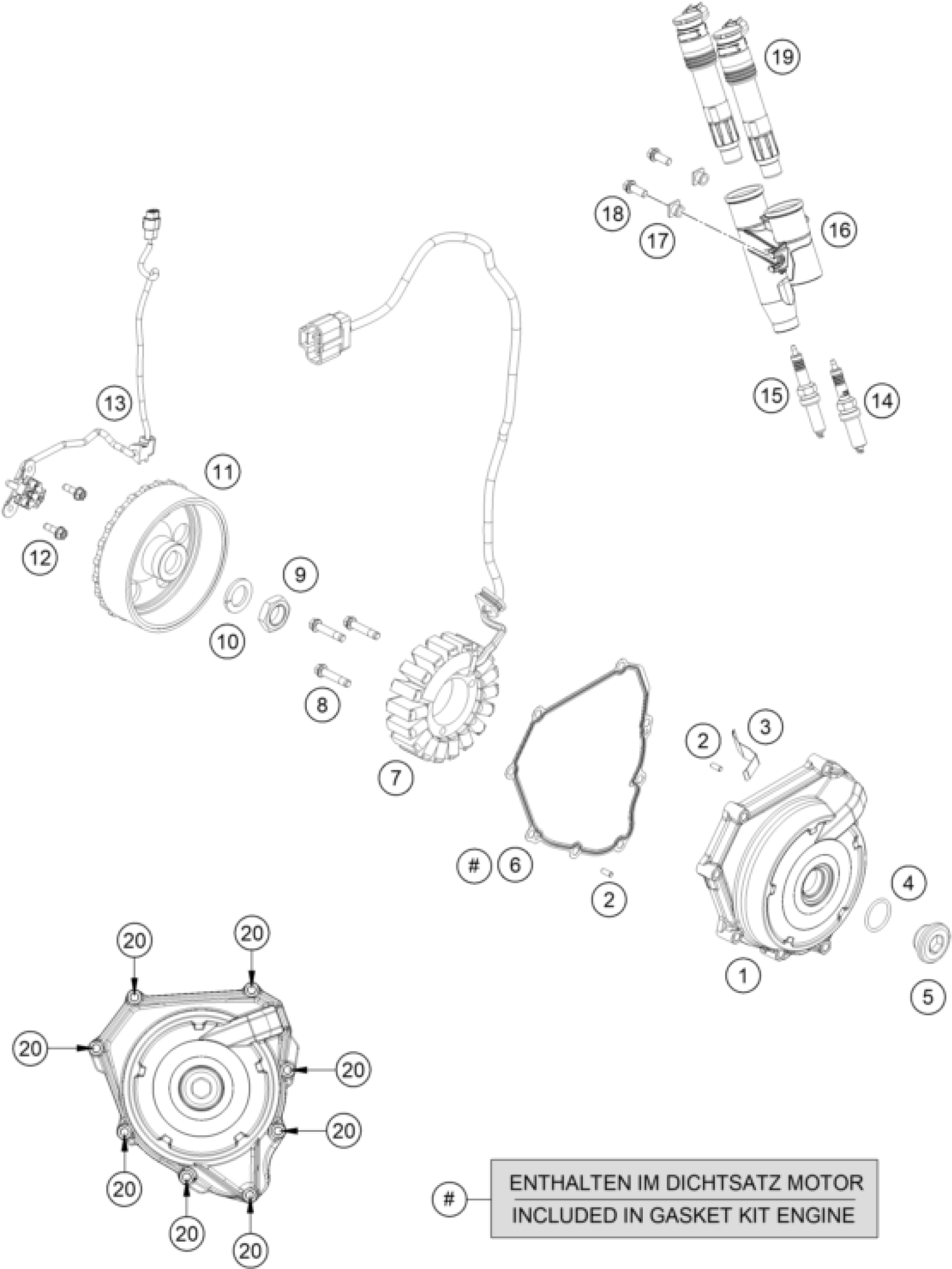

KTM 690 SMC R 2026 IGNITION SYSTEM Diagram

Ignition cover

Needle roll.DIN5402 NRB 4X9.8

generator line bracket

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

Ignition cover gasket

Stator

HH collar screw M6x30 TX30

Hex nut DIN0936-M18x1.5 right

LOCK WASHER VSK 18

Rotor

HH Collar Screw M5x16 ISA30 SS

SPARK PLUG M12X1.25

INSET

HH collar screw M6x16 TX30

SPARK PLUG

STICK COIL

Alu. ISR screw M6x30

Crankshaft position sensor

STICKCOIL HOLDER
