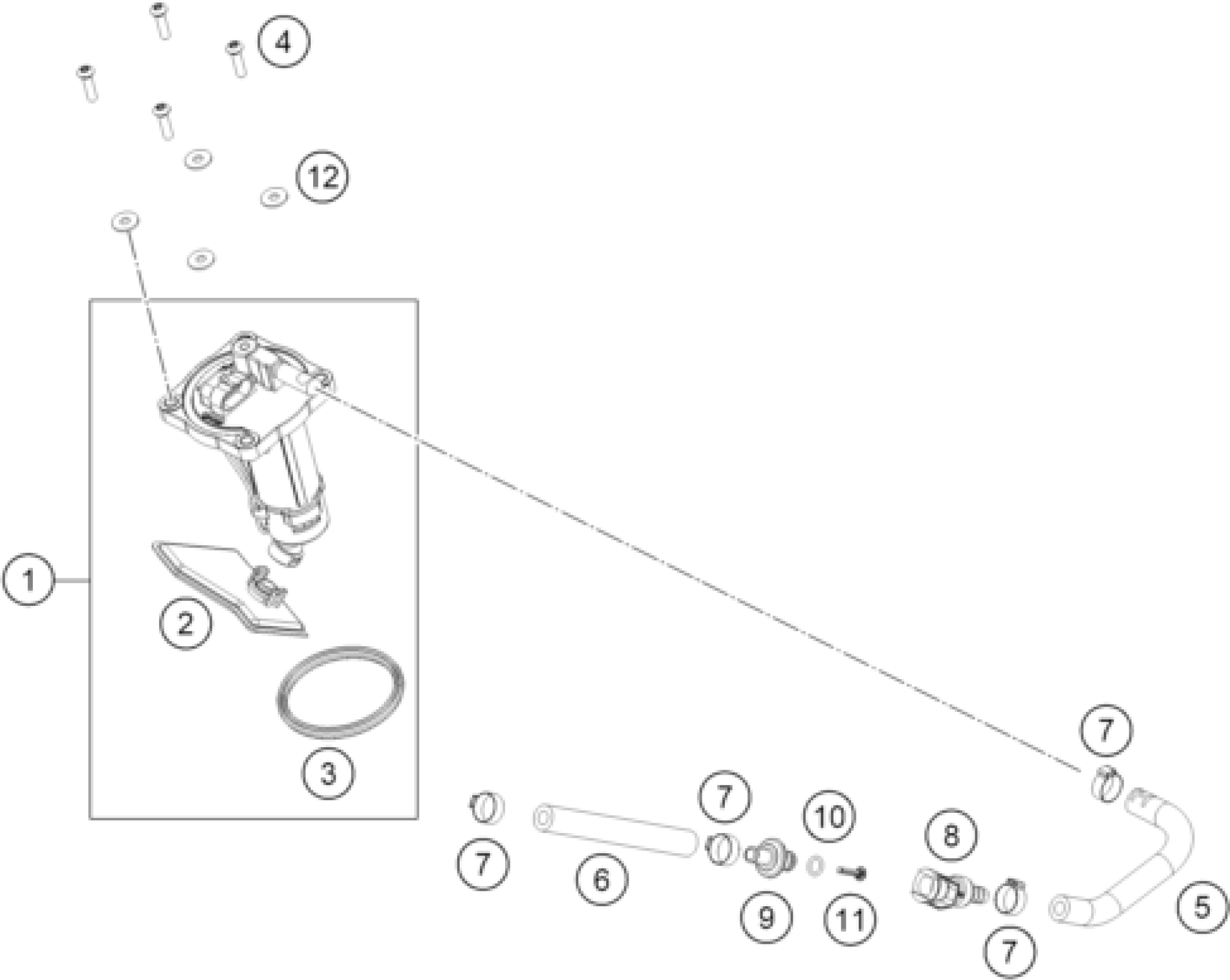

KTM 690 SMC R 2026 FUEL PUMP Diagram

#

Description
Price

3

Fuel pump seal

A46007088050

$53.75

2

Fuel pump filter kit

A46007018044

$54.69

1

Fuel Pump

A60607088000

Unavailable

5

Fuel hose

A60607016050

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

Clutch CPC PLCD17005, black

5850701050030

$55.90

11

FUEL FILTER

78141013190

$9.53

10

O-ring VITON f. plug CPC 0

58507012000

$6.26

4

Oval head screw ISO 7380-1 M5x

0738050202S

Unavailable

6

FUEL HOSE 7,5X3,5 L=120

60007316120

$5.51

9

Fuel connection

77707010000

$15.14

12

washer DIN 9021 A - 5.3

0021050003

$1.49
