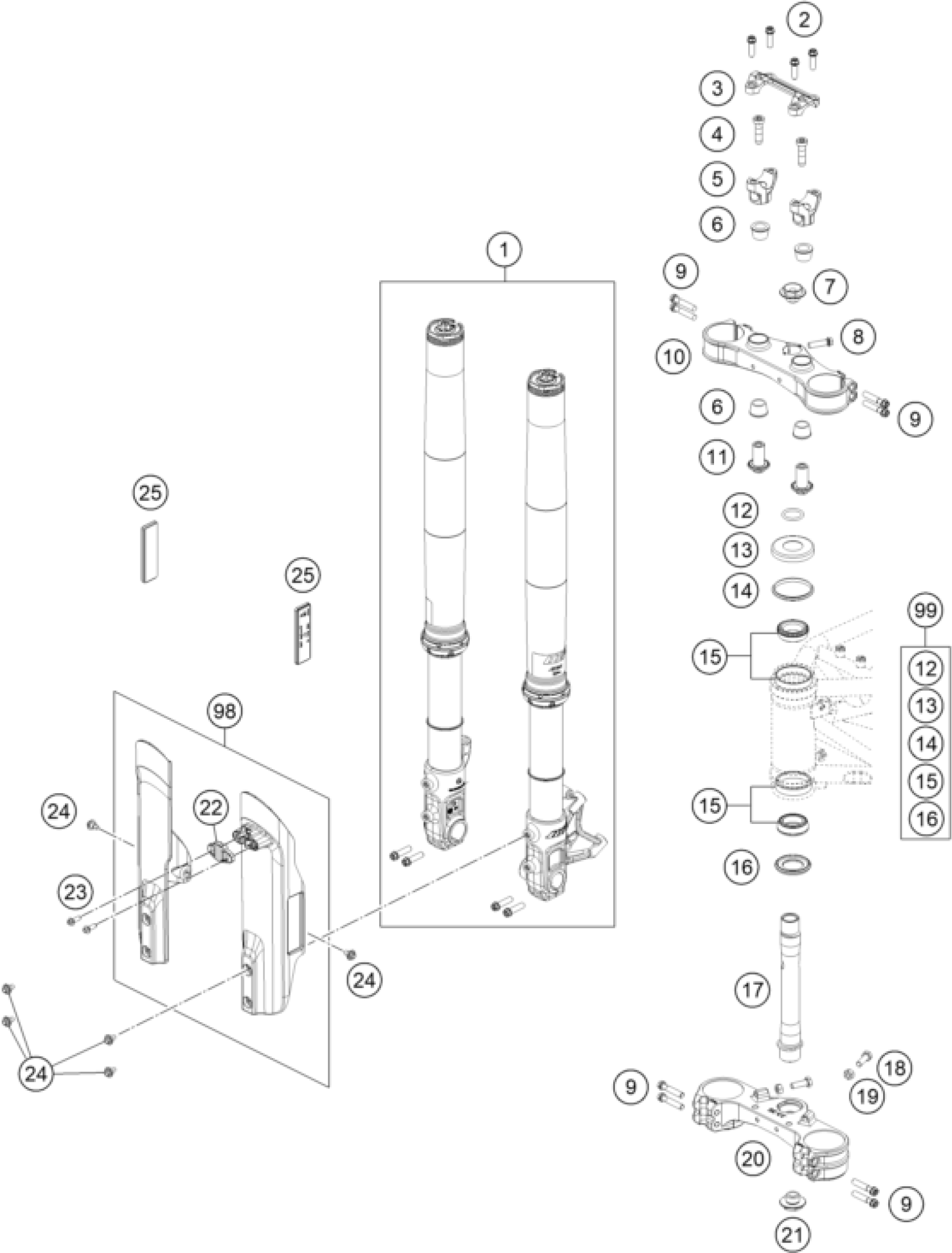

KTM 690 SMC R 2026 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 690 SMC R 25

A606C141Y401102

Unavailable

2

HH collar screw M8x25

0025080256

$2.05

3

Handlebar clamp 28mm

79001038000C1

$58.06

4

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

5

Handlebar receptive D28mm-H36m

79001039236C1

$39.07

6

RUBBER BUSH

83001040000

$5.23

7

Steering head screw M20x1.5 WS

54801036000C1

$10.84

8

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

9

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

10

Triple clamp top 33-35 offset

A60601034034C1

Unavailable

11

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

12

O-RING 25X3,55 NBR70 05

0770025035

$1.49

13

STEERING HEAD COVER

54201086000

$8.50

14

STEARING HEAD GASKET TOP

54601184000

$7.10

15

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

16

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

17

Excentric head tube

76501033200

$120.42

18

HH SCREW DIN0933-M 8X25

0933080253

$2.05

19

Hexagon nut DIN934 M8

0934080003

$2.05

20

Low. Triple-clamp 33-35 offset

27001131134C1

Unavailable

21

Steering head screw M20x1.5 SW

54801036300C1

$15.14

22

Clamp for brake hose

76901085000HD

Unavailable

23

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

98

fork protector kit 690 SMC R`2

A60601194000HDA

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

24

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

25

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44
