Description

Price

1

Cartridge left KTM 690 SMC R 2

43578290S3

Unavailable

2

cartridge right KTM 690 SMC R

43578291S3

Unavailable

3

Fork outer tube 49.13x530 dt54

43578501

Unavailable

4

43578511

Unavailable

5

Guide bushing set fork 48mm

R14047T

Unavailable

6

"Seal kit 48mm SKF black"

RP10012T

Unavailable

7

Stroke indicator 48mm red

48602007

$4.11

8

axle clamp right d48mm black c

43578503S1

Unavailable

9

axle clamp left d48mm black cp

43578502S1

Unavailable

10

HH collar screw M8x35

00250820

Unavailable

11

HS cylinder-head screw M10x25

43578177S1

$10.00

12

Seal kit 48mm SKF black

RP10048T

Unavailable

13

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

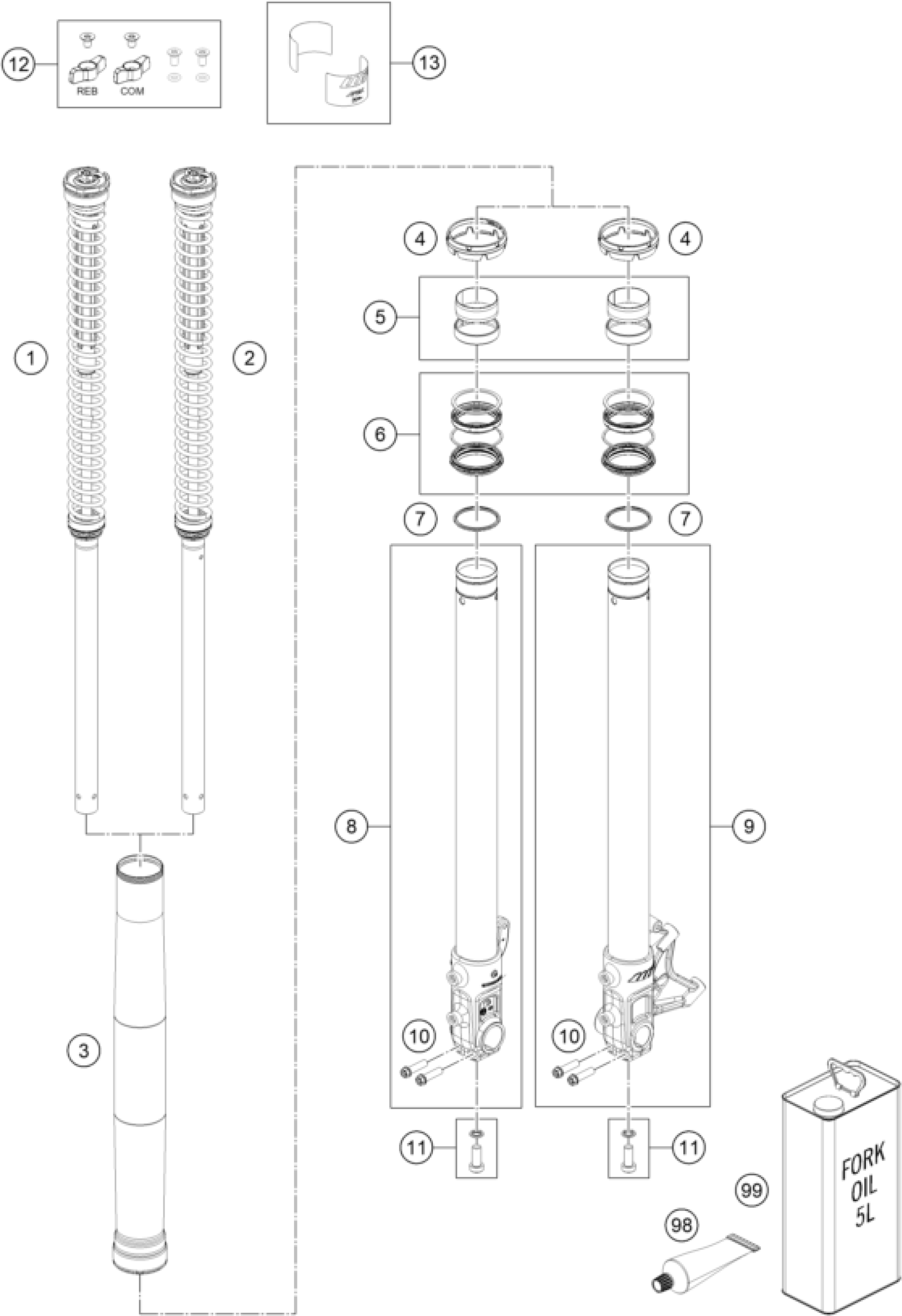

KTM 690 SMC R 2026 FRONT FORK DISASSEMBLED Diagram

Cartridge left KTM 690 SMC R 2

cartridge right KTM 690 SMC R

Fork outer tube 49.13x530 dt54

Guide bushing set fork 48mm

"Seal kit 48mm SKF black"

Stroke indicator 48mm red

axle clamp right d48mm black c

axle clamp left d48mm black cp

HH collar screw M8x35

HS cylinder-head screw M10x25

Seal kit 48mm SKF black

Sticker set, APEX PRO OC 90x40

Fork Fluid Viscosity 4.0 5L

Fuchs grease IPR (250g)
