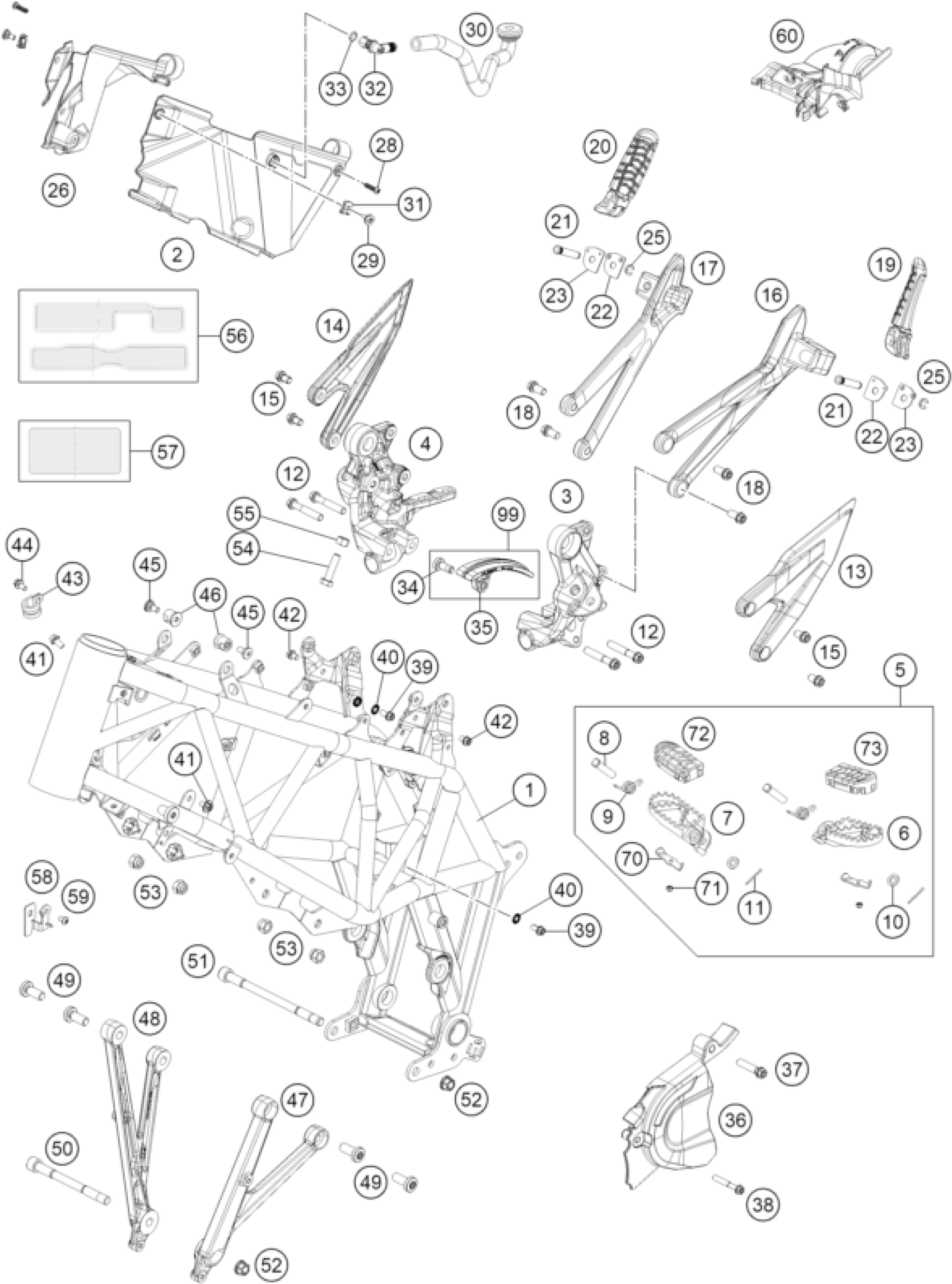

KTM 690 SMC R 2026 FRAME Diagram

#

Description
Price

1

Frame

A60603001000EB

Unavailable

2

Frame cover left

A60603085000

Unavailable

3

Footpeg bracket front left cmp

76903038044011

Unavailable

4

Footpeg bracket front right cm

76903039044011

Unavailable

5

FOOTPEG LS+RS CPL.

60003040133

$147.07

6

FOOTREST L/S 08

78003040050

$43.66

7

FOOTREST R/S 08

78003041050

$43.66

8

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

9

FOOTREST SPRING L/S & R/S

54603041000

$5.23

10

washer DIN 125 A 10.5

0125100003

$2.05

11

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

12

HH collar screw M8x45 TX40

0025080456

$4.11

13

Heel protector, left

76903038050

$25.61

14

Heel protector, right

76903039050

$25.61

15

HH collar screw M8x12 TX40

0025080126

$3.08

16

Passenger footpeg bracket rlef

A6060304800001

Unavailable

17

Passenger footpeg bracket righ

A6060304900001

Unavailable

18

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

19

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

20

Footrest cmpl. r/s rear 03

60003051000

$61.89

21

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

25

retaining washer DIN 6799 - 6

0799060003

$1.49

26

Frame cover right

A60603086000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

29

special screw M5x12

69008021160

$4.11

30

oil separator vent

76930088030

$26.73

31

clip nut M5

69008021080

$3.08

32

ANGLE CONNECTOR LC8 03

60038082000

$2.05

33

O-RING 8X2 SILICONE

0770080020

$1.49

34

SHCS M8x20 TX45

0035080206S

$5.32

35

CHAIN SLID. GUARD 08

76504067000

$6.82

36

Front sprocket cover

A60603096000

Unavailable

37

HH collar screw M8x35 TX40

0025080356

$4.11

38

HH collar screw M6x40 TX30

0025060406

$3.08

39

HH collar screw M6x12 TX30

0025060126

$3.08

40

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

41

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

42

HH collar screw M6x8 TX30

0025060086

$2.05

43

CLAMP RSGU 15/12

49007439000

$5.23

44

HH collar screw M5x12 TX30

0025050126

$3.08

45

special screw M6x14

69008021040

$2.05

46

Seat holder

76907026000

$5.23

47

Engine brace left

A60603005000C1

Unavailable

48

Engine brace right

A60603006000C1

Unavailable

49

AH collar screw M10x24 ISA45

0035100249

$3.08

50

Engine bracket screw M10x120-1

0900001012000S

Unavailable

51

Engine bracket screw M10x152-1

0900001015200S

Unavailable

52

COLLAR NUT M10 WS=13

54630044000

$1.49

53

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

54

HH SCREW DIN933 M5x20

0933050203

$1.49

55

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

99

CHAIN SLIDING BELOW 08-13

76504067010

Unavailable

70

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

71

Self locking nut DIN 985 M5

0985050003

$2.05

72

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

73

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

56

Frame Protection sticker set

A60603094000

Unavailable

57

Protective film trans. 80x40mm

A40007012000

Unavailable

59

Flat Head Screw ISO7380 M5x8 A

0738050082

$1.49

58

bracket generator plug cpl

A60611059020

Unavailable

60

Suspension strut mount cover

A60603001085

Unavailable
