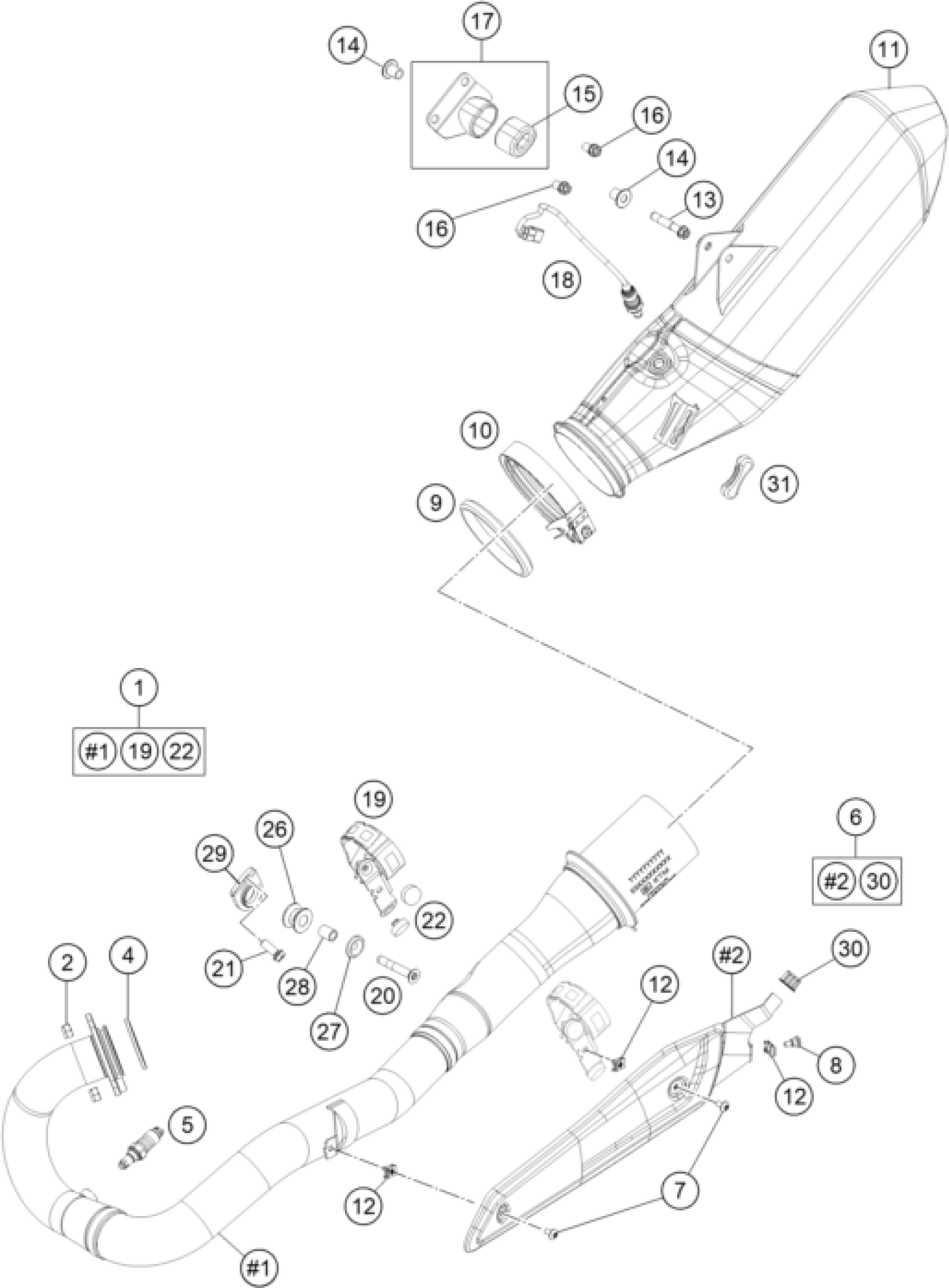

KTM 690 SMC R 2026 EXHAUST SYSTEM Diagram

#

Description
Price

1

manifold cpl

A60605007000

Unavailable

2

self-locking nut M8 Cu

51010086100

Unavailable

4

Exhaust gasket 05

61005005000

Unavailable

5

LAMBDA SENSOR

75041090200

Unavailable

6

heat shield pre-assembled

A60605011000

Unavailable

7

SCREW TORX M5X10

78105081010

Unavailable

8

Special screw, M5x14

69008021260

Unavailable

9

Manifold gasket 88 mm

0780008809901

Unavailable

10

V-clamp D=104.1

0310002010400

Unavailable

11

Muffler

A60605083000

Unavailable

12

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

13

HH collar screw M8x45 TX40

0025080456

Unavailable

14

Bushing

60305069100

Unavailable

15

DAMPING RUBBER

61305068000

Unavailable

16

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

17

HOLDER SILENCER CPL.

76505084100

Unavailable

19

A60605007025

Unavailable

20

Self-lock. cntrsunk screw M8x5

0019080506S

Unavailable

21

HH collar screw M8x20

0025080206

Unavailable

22

RUBBER BUFFER

54308042000

Unavailable

26

damp. component silicone grey

54305068100

Unavailable

27

Special washer 8X24 ALU H=4.2

62603061000

Unavailable

28

Spacer bushing 8.4X12X16

56505069000

Unavailable

29

EXHAUST SUPPORT

76505007027

Unavailable

30

DAMPING ELEMENT SILICON

27005011011

Unavailable

31

Distance piece, silencer

25105098000

Unavailable

18

Oxygen sensor

A60641090000

Unavailable
