Description

Price

1

EVAPORATIVE CANISTER 08

59415001100

$32.90

2

Activated charcoal filter clam

76915002000

$5.60

3

special screw M5x17

69008021060

$3.08

6

Purge valve

A62415015000

$18.41

8

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

9

Evap. canister pre-formed hose

A60615021000

Unavailable

11

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

12

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

13

Screw plug ACF

61315026100

$21.87

14

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

16

VARIABLE ONE-EAR CLAMP 17,0MM

00050170706

$2.05

17

stepless one-ear clamp

00050109706

$4.11

4

Heat protection evaporative ca

A60615002010

Unavailable

5

Rubber grommet, standby gas se

60006001023

$5.23

7

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

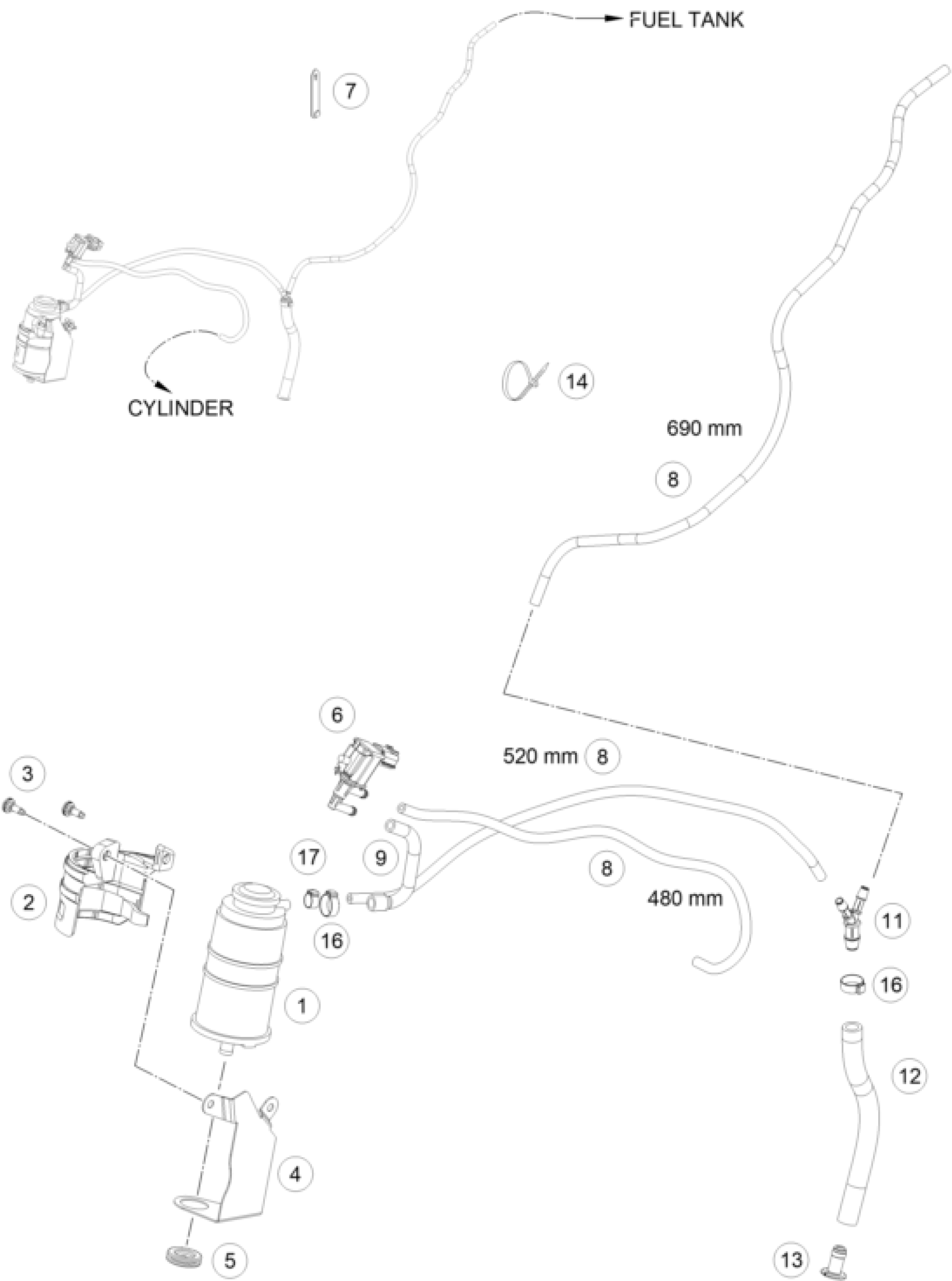

KTM 690 SMC R 2026 EVAPORATIVE CANISTER Diagram

EVAPORATIVE CANISTER 08

Activated charcoal filter clam

special screw M5x17

Purge valve

HOSE EPA D=4/8 L=2000MM

Evap. canister pre-formed hose

Y-CONNECTOR YS 6-10-6

HOSE EPA D=10/16 L=2000MM

Screw plug ACF

CABLE TIE 140/2,5MM BLACK

VARIABLE ONE-EAR CLAMP 17,0MM

stepless one-ear clamp

Heat protection evaporative ca

Rubber grommet, standby gas se

RUBBER CABLE TIE 75MM 03
