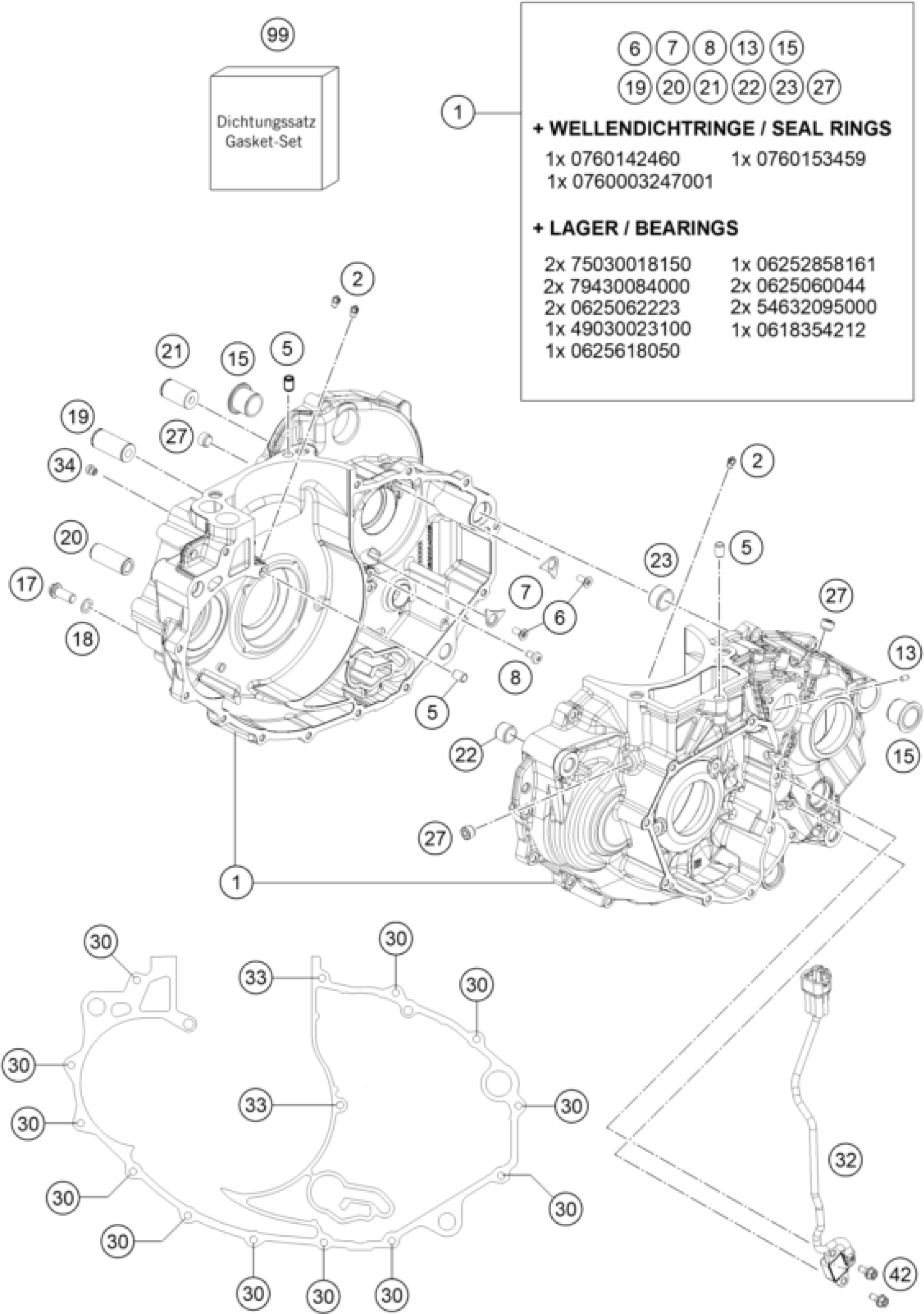

KTM 690 SMC R 2026 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

A6063000004424

Unavailable

5

Dowel, 6x8x11.5

59030023100

$1.49

6

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

7

Retaining bracket crankshaft b

75030085100

$1.49

8

Oval head screw DIN 7985-M5x10

0018050103S

$1.49

13

Jet screw M4x8

76638029030

$5.23

15

Housing bush

79230010000

$11.87

19

BUSHING PIN

54633018400

$21.87

21

BUSHING PIN

59040028000

$10.46

22

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

23

Dowel, 21x12

54830027100

$5.23

30

HH collar screw M6x30 TX30

0025060306

$3.08

33

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

34

MAIN JET 100 DELLORTO

57031523100

$8.59

99

Engine gasket kit 690 Enduro/S

A60630099000

Unavailable

17

Screw, M8x20 SW=8 8.8

0000150802000

$1.49

18

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

20

BEARING BOLT 15X39 08

61230058050

$12.05

27

pipe plug DIN 906 M10x1

0906100100

$4.11

32

Gear position sensor

A60011023000

$120.42

42

Hex collar screw M5x12 ISA30 S

0025050126S

$1.49

2

oil jet 50 M5

60030063050

$9.44
