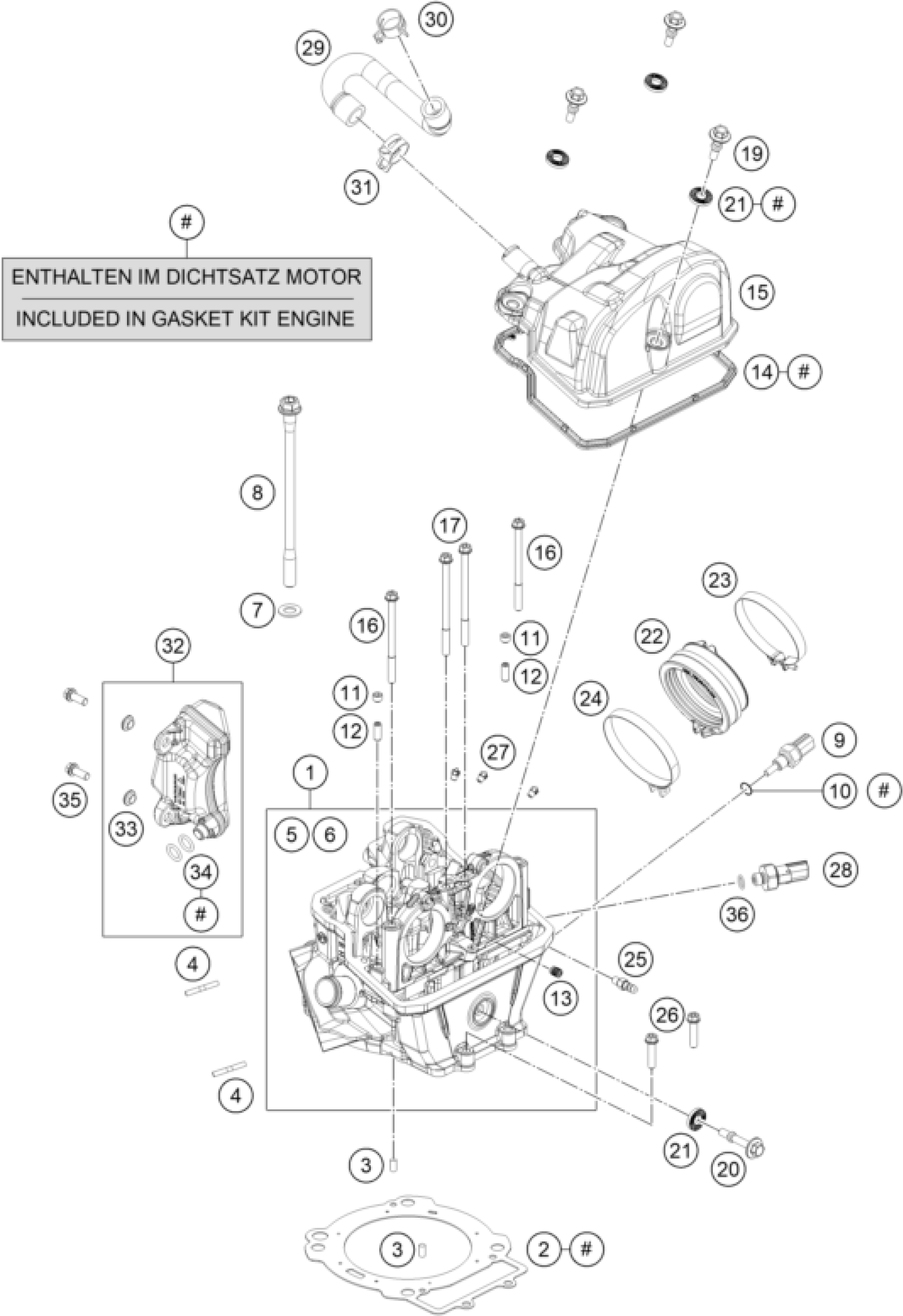

KTM 690 SMC R 2026 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

A6063602004424

Unavailable

2

CYLINDER HEAD GASKET Ø105

76630036000

$62.92

3

GROOVED PIN DIN1474 5X10

0474050100

$2.05

4

stud screw 835 M8x25 - 10.9

63505015000

$2.05

5

VALVE GUIDE 6MM

76636026001

$34.31

6

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

7

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

$9.34

9

water temperature sensor

79435047000

$23.74

10

o-ring 10.00x2.00 silicone

0770100020

$2.05

11

THREAD PIN DIN913-M8X6 PRE30

0913080060S

$1.49

12

Cylinder pin DIN7979 6x16

0979060160

$1.49

13

SCREW PLUG

59030296000

$6.26

14

VALVE COVER GASKET

76636053000

$25.80

15

Valve cover

76636052100C1

Unavailable

16

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

17

HH COLLAR SCREW M6X90 TX30

0025060906

$3.08

19

VALVE COVER SCREW

78036054100

$6.63

20

valve mechanism cover screw

75036055000

$4.11

21

decoupling element

75036052010

$4.11

22

Rubber sleeve

27036044000

$32.25

23

HOSE CLAMP GEMI 70MM

75036047000

$9.44

24

HOSE CLAMP GEMI 75

61336048000

$14.30

25

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46

26

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.49

27

oil jet 50 M5

60030063050

$9.44

29

Pre-formed hose

27030088000

$14.86

30

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

31

CLAMP 21X12 STD-DES

00049210121

$3.08

32

RESONATOR ASSY.

76636065000

$46.93

33

Chain slider bushing

69004060050

$4.11

34

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

35

HH collar screw M6x12 TX30

0025060126

$3.08

28

oil pressure switch ''BITRON''

61238091100

$33.46

36

O-RING 9x1,5 V80 SH

07700900151

$2.05
