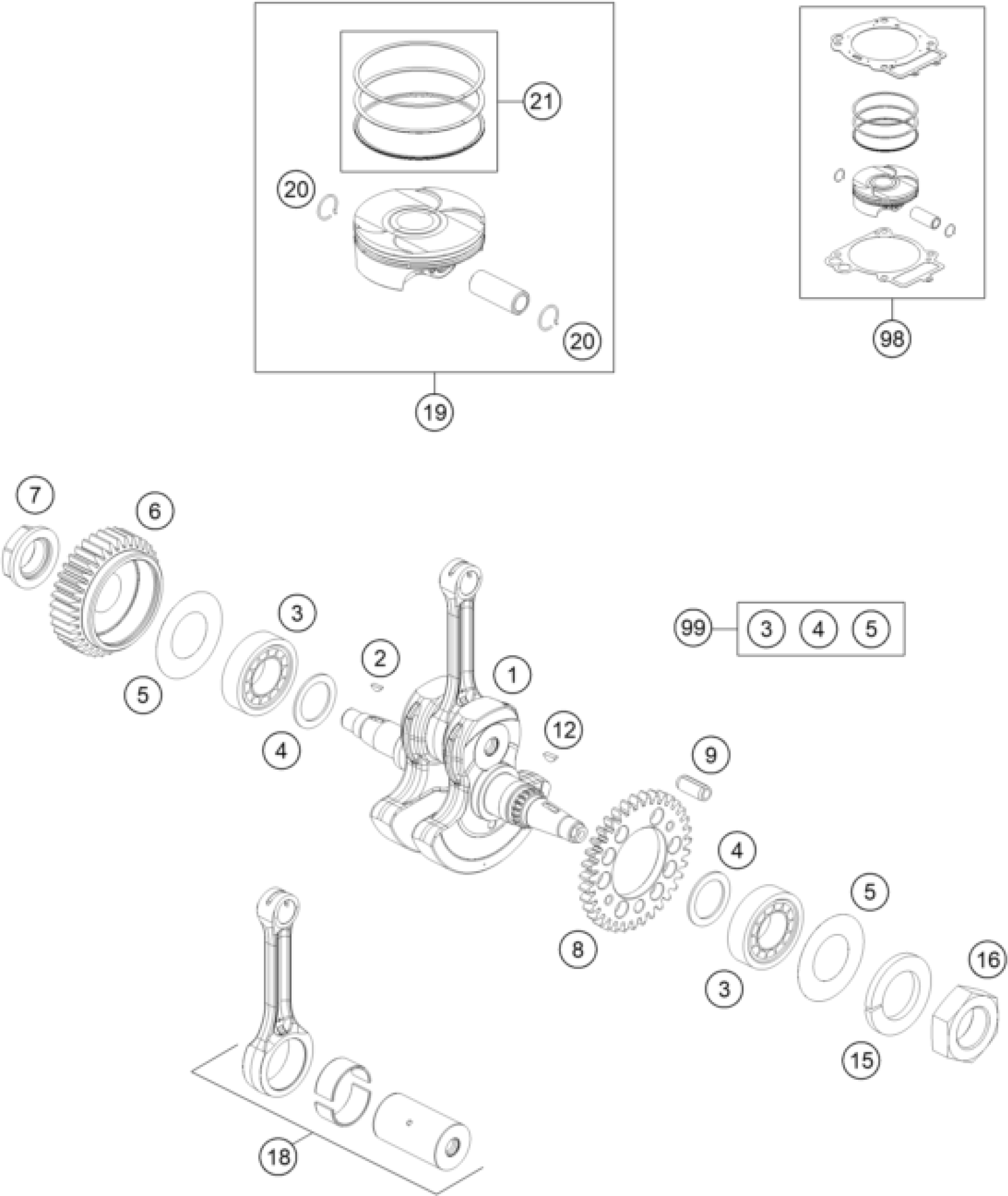

KTM 690 SMC R 2026 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cmpl.

A60630018000

Unavailable

2

woodruff key DIN 6888 4x5x13

0888040050

$4.11

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

$83.30

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

Primary gear 36z

A60632023036

Unavailable

7

NUT FOR PRIMARY GEAR

75030029100

$10.46

8

DRIVE WHEEL BALANCING SHAFT

75030055100

$56.56

9

TENSION PIN ISO13337 8X30

0749080300

$2.05

12

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

15

LOCK WASHER VSK 18

58132072000

$2.05

16

Hex nut DIN0936-M18x1.5 right

0009361800800S

$7.38

18

Connecting rod rebuild kit

A60630015044

Unavailable

19

Piston

76630007300 I

Unavailable

19

Piston

76630007300 II

Unavailable

20

CIRCLIP LC4 07

75030074000

$12.33

21

Piston kit D=105

76630031144

$116.96

98

Piston kit size I 690/701 2019

00050000253

Unavailable

98

Piston kit group II 690/701 20

00050000254

Unavailable

99

Crankshaft repair kit

A60630018188

Unavailable

5

BEARING SEAL

79430084000

$7.00
