Description

Price

1

clutch cover cpl.

A60630001033C1

Unavailable

2

oil plug cpl. M24x3

58030020100

$5.23

3

Outer clutch cover

A60630026000C1

Unavailable

4

OIL SIGHT GLASS

59030019200

$21.31

5

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

6

SHAFT SEAL RING 17X28X6 FKM

0760172861

$10.18

7

Clutch cover gasket internal

A60630025000

Unavailable

8

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

9

Alu. ISR screw M6x30

0900000603002

Unavailable

10

Alu. ISR screw M6x65

0900000606501

Unavailable

11

CIRCLIP DIN0472-28X1,2

0472280120

$2.05

12

O-RING 19,00X3,00 NBR

0770191015

$2.05

15

Cap hd. screw DIN14580 M5x20 P

014580050203S

$1.49

16

SPACER BUSH. SPRING BRACKET

78003023070

$1.49

17

Quickshifter sensor cover

76834052000

$2.05

18

Shift shaft sensor

61434051000

$131.55

13

clutch cover gasket outside

A60630027000

Unavailable

14

Cu Sealing ring 6x12

0603061201

Unavailable

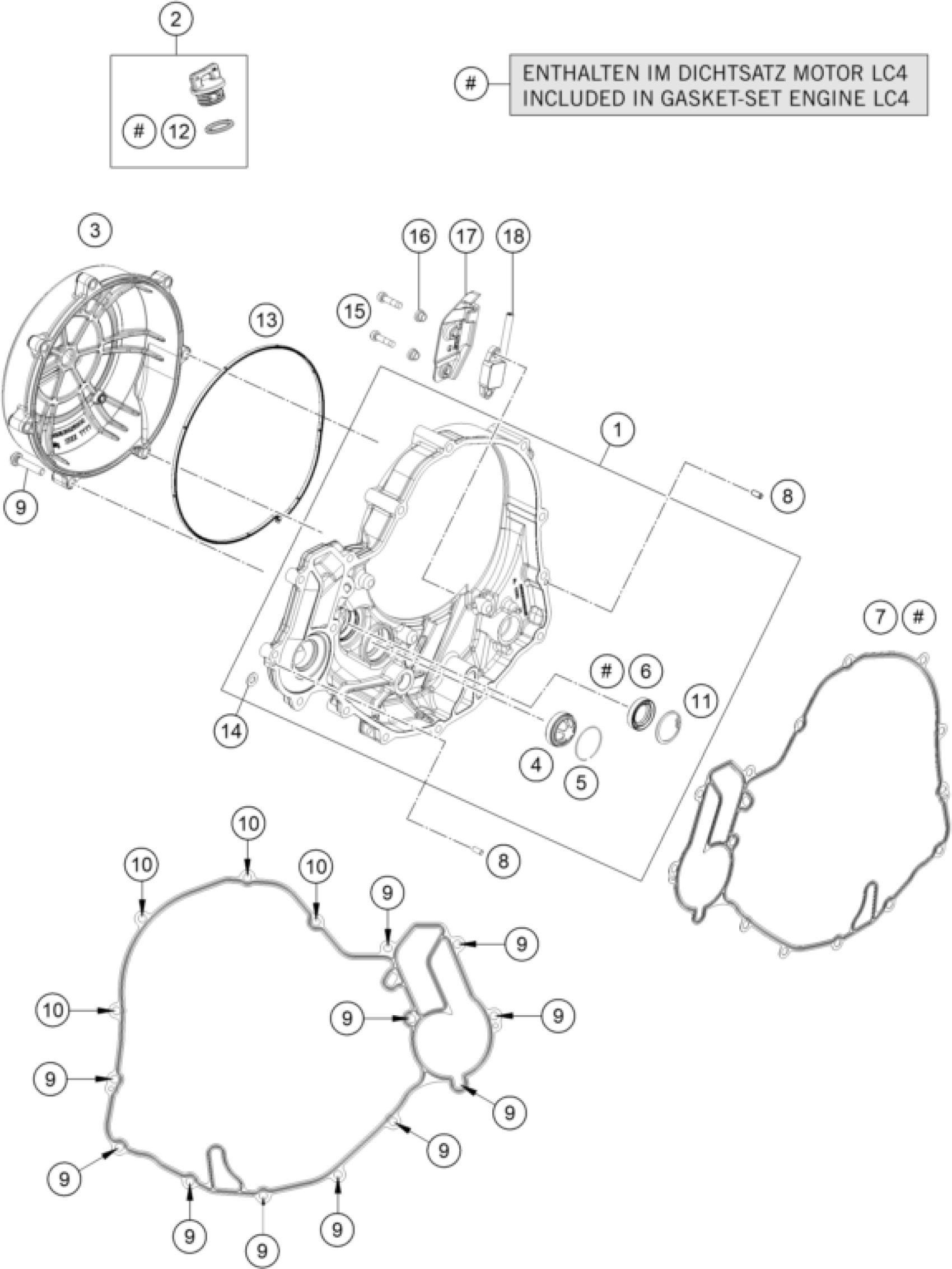

KTM 690 SMC R 2026 CLUTCH COVER Diagram

clutch cover cpl.

oil plug cpl. M24x3

Outer clutch cover

OIL SIGHT GLASS

CIRCLIP OIL LEVEL GLASS 03

SHAFT SEAL RING 17X28X6 FKM

Clutch cover gasket internal

Needle roll.DIN5402 NRB 4X9.8

Alu. ISR screw M6x30

Alu. ISR screw M6x65

CIRCLIP DIN0472-28X1,2

O-RING 19,00X3,00 NBR

Cap hd. screw DIN14580 M5x20 P

SPACER BUSH. SPRING BRACKET

Quickshifter sensor cover

Shift shaft sensor

clutch cover gasket outside

Cu Sealing ring 6x12
