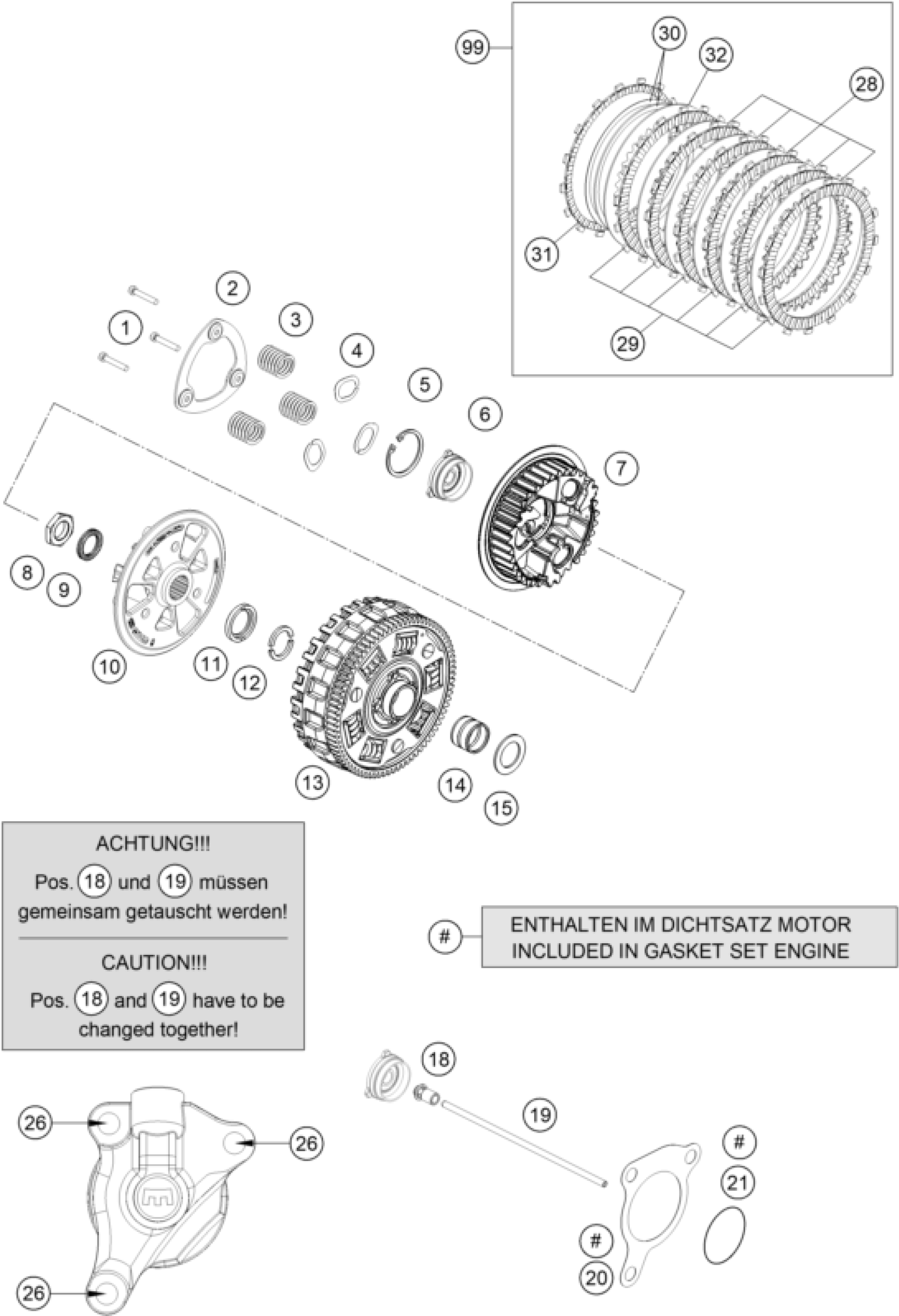

KTM 690 SMC R 2026 CLUTCH Diagram

#

Description
Price

1

Cyl.screw DIN14580 M5x30

014580050306

$2.05

2

Clutch pressure plate stop

A60632006000

Unavailable

3

Clutch spring

A60632005000

Unavailable

4

Spring retainer

A60632041000

Unavailable

5

Lock ring DIN0472-45x1.75

0004724517500

Unavailable

7

Clutch pressure plate

A60632003000

Unavailable

8

hex nut M20x1,. H=6mm

60036073150

$6.91

10

Inner clutch hub

A60632002000

Unavailable

11

STEPPED WASHER 07

75032009000

$9.34

12

HALF-WASHER 07

75032007000

$11.12

13

Outer clutch hub cmpl.

A60632001044

Unavailable

14

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

15

WASHER 26X40X2 07

75032017000

$6.35

18

PRESSURE BOLT 08

75032055100

$9.90

19

PUSH ROD 08

75032054200

$14.95

20

GASKET F. OUTPUT CYLINDER

59032065100

$5.60

21

O-ring 30x1.5 NBR 70

0770300015

$2.05

26

HH collar screw M6x20 TX30

0025060206

$3.08

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

$18.41

29

LINING DISK 2,7MM FCC 02

A60632011000

Unavailable

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

$62.26

31

LINING DISC CUT OUT

A60632011010

Unavailable

32

STEEL DISK 1,5MM NITRIDED

75032112100

$22.99

99

Clutch Disk Kit

A60632010044

Unavailable

6

Clutch pressure plate insert c

A60632004044

Unavailable

9

Wedge lock washer HLS 20

0252012103100

$5.23
