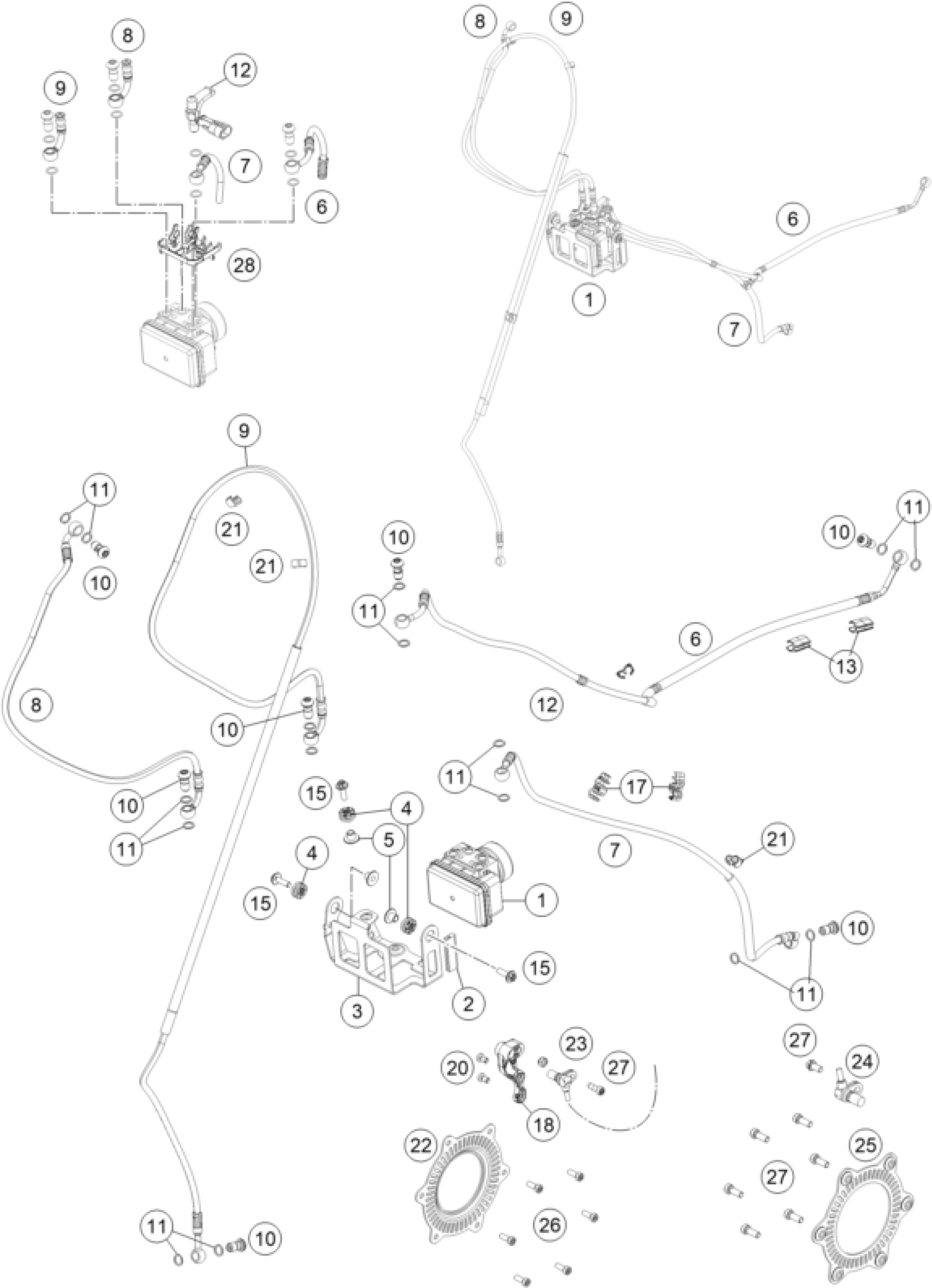

KTM 690 SMC R 2026 ABS Diagram

#

Description
Price

1

ABS module filled

A61042031044

$3,234.62

2

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

3

BRACKET PLATE ABS-MODUL

27042040000

$55.53

4

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

5

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

6

Brake line brake caliper rear

A60642004000

Unavailable

7

Brake line brake pump rear

A60642002000

Unavailable

8

BRAKE HOSE HAND BRAKE CYLINDER

76542005000

$44.68

9

Brake line, brake caliper, fro

27142106000

Unavailable

10

banjo bolt M10x1x19.5

62113020100

$8.78

11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

12

Brake light switch

A60611050000

Unavailable

13

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

15

HH collar screw M6x20 TX30

0024060206

$3.08

17

Bracket ABS line dia7.5

64142046000

$2.05

18

Sensor bracket

27042024200

Unavailable

20

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

21

CLIP 5/7 MM 06

60111094000

$3.08

22

Front sensor wheel

60142020100

$83.77

23

Wheel speed sensor DF30

A61042025000

$63.57

24

Sensor

A60642025000

Unavailable

25

SENSOR WHEEL ABS REAR

76542021000

$34.68

26

SPECIAL SCREW M6X26 SW=8 10.9

59009062026

$2.05

27

SHCS ISO 14580 M6x16 SL

014580060166S

$2.05

28

Anti-rotation lock ABS

76542033000

$7.47
