Description

Price

1

Main wiring harness

76111175000

Unavailable

2

Rear part, wiring harness

76911076000

$41.04

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

6

VOLTAGE REGULATOR

60311034000

$177.55

7

clip nut M6

54603048100

$4.11

9

HH collar screw M6x20 TX30

0025060206S

$2.05

10

Self lock. nut DIN985-M6-A2

0985060003

$2.05

11

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

11

Cable tie 200/4.6mm black

44011076200

Unavailable

11

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

12

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

13

DIODE S3H-15 97

58411096100

$9.81

14

Direct current horn complete

64111060033

$35.05

15

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

16

Shift shaft sensor

61434051000

$131.55

17

Quickshifter sensor cover

76834052000

$2.05

18

dummy connector OE 33-Pins

000700000OE001

Unavailable

19

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

34

Cap hd. screw DIN14580 M5x20 P

014580050203S

$1.49

35

Spacing tube spring retaining

78003123070

$1.49

20

Fuse Box

61711087050

$15.98

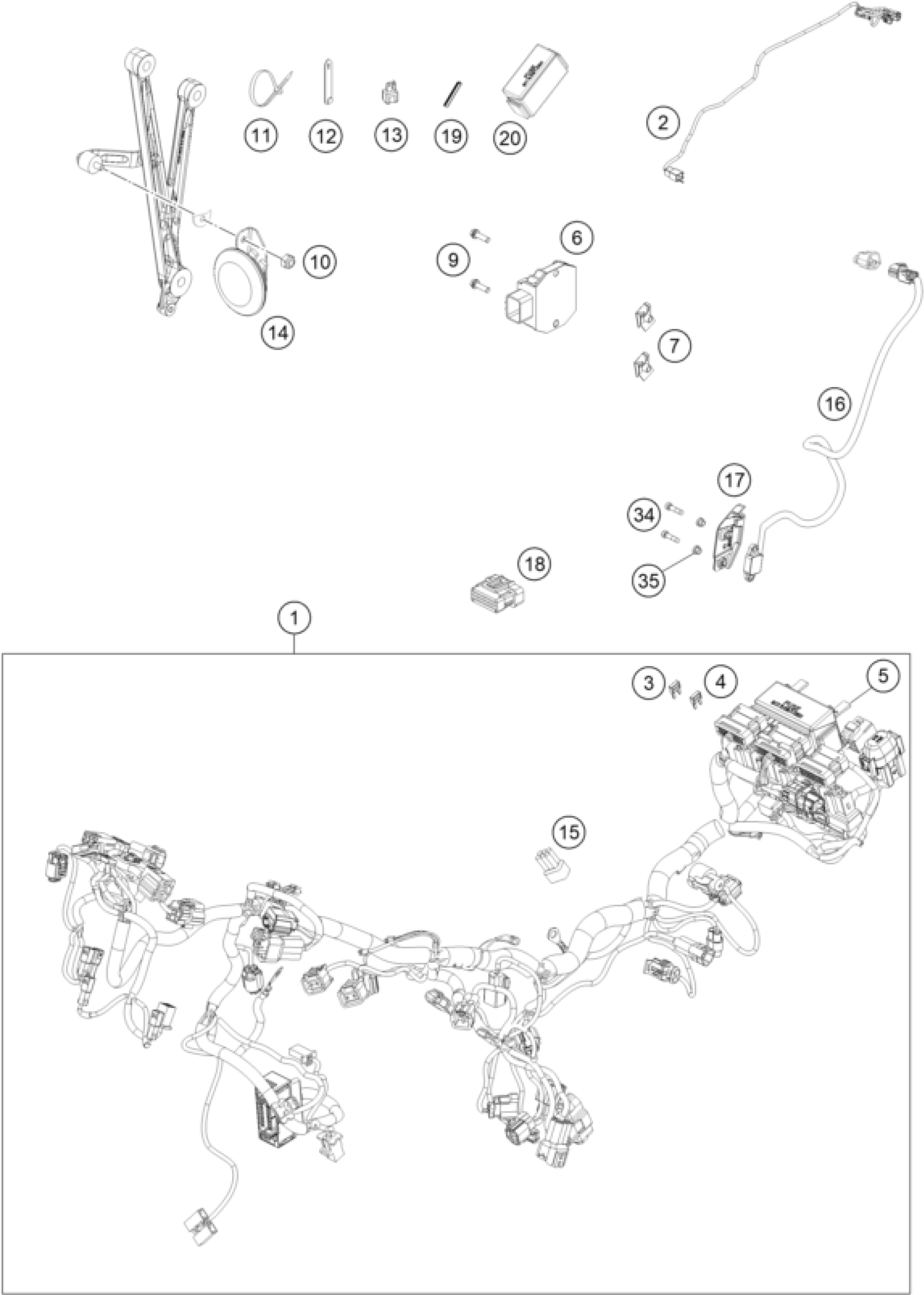

KTM 690 SMC R 2024 WIRING HARNESS Diagram

Main wiring harness

Rear part, wiring harness

FUSE 10A 07

FUSE 15A 07

RUBBER CASING FOR FUSE BOX

VOLTAGE REGULATOR

clip nut M6

HH collar screw M6x20 TX30

Self lock. nut DIN985-M6-A2

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

RUBBER CABLE TIE 45MM 03

DIODE S3H-15 97

Direct current horn complete

SPARE CONNECTOR BH 6-PINS

Shift shaft sensor

Quickshifter sensor cover

dummy connector OE 33-Pins

EDGE PROTECTOR L=45MM 05

Cap hd. screw DIN14580 M5x20 P

Spacing tube spring retaining

Fuse Box
