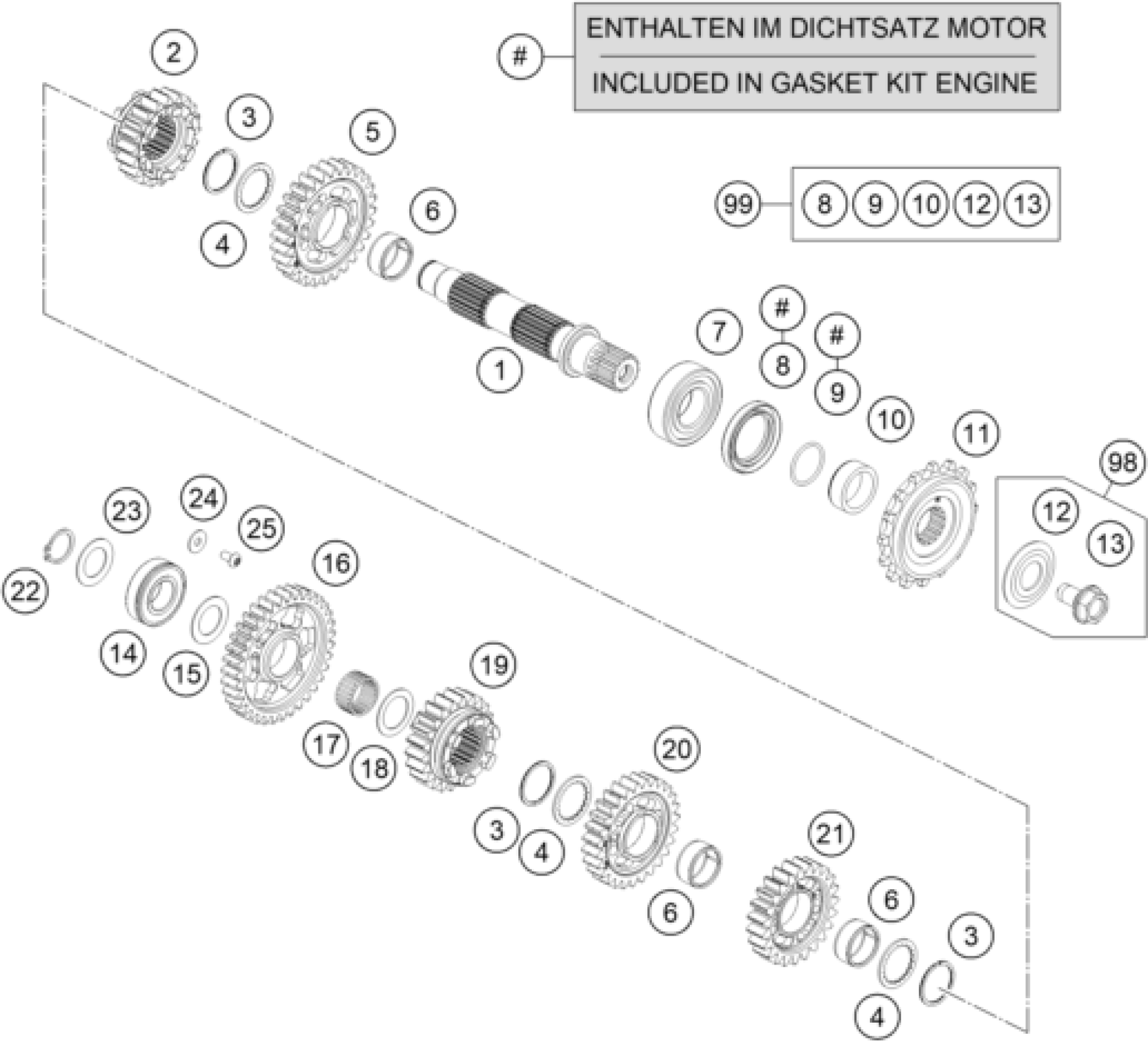

KTM 690 SMC R 2023 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

counter shaft

76633110000

Unavailable

2

sliding gear 6th gear

76633116000

Unavailable

3

CIRCLIP XDNS-27

0471027000

Unavailable

4

STOP DISK 24.6X33X1.5

76633040000

Unavailable

5

idler gear 2nd gear

76633112000

Unavailable

6

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

Unavailable

7

CYL.ROLLER BEARING NJ205 C4

49030023100

Unavailable

8

Shaft seal ring 32x47x7 AS-P F

0760003247000

Unavailable

9

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

10

Spacing tube front sprocket

76633030012

Unavailable

11

Engine sprocket 15-t, damped

58033029115

Unavailable

11

Sprocket 16-t, damped

58033029116

Unavailable

12

Spring washer 17.2X40X1.5

59033034000

Unavailable

13

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

14

BALL BEARING 6004 DDUN C4

0625060044

Unavailable

15

Stop disc 20x31.9x1

0690002000101

Unavailable

16

idler gear 1st gear

76633111000

Unavailable

17

Needle bearing 22x26x13

0400002201300

Unavailable

18

Stop disc 22.2x31.7x1

0690002200100

Unavailable

19

sliding gear 5th gear

76633115000

Unavailable

20

idler gear 3rd gear

76633113100

Unavailable

21

idler gear 4th gear

76633114000

Unavailable

22

CIRCLIP DIN471 20X1,2

0471200120

Unavailable

24

washer DIN 9021 A - 5.3

0021050003

Unavailable

25

Oval head screw ISR M5x10-10.9

073801050105S

Unavailable

99

Repair kit countershaft

76633110010

Unavailable

23

Shim 20x31.9x1

59033080000

Unavailable

98

SCREW 10.9+SPRING WASHER

59033034044

Unavailable
