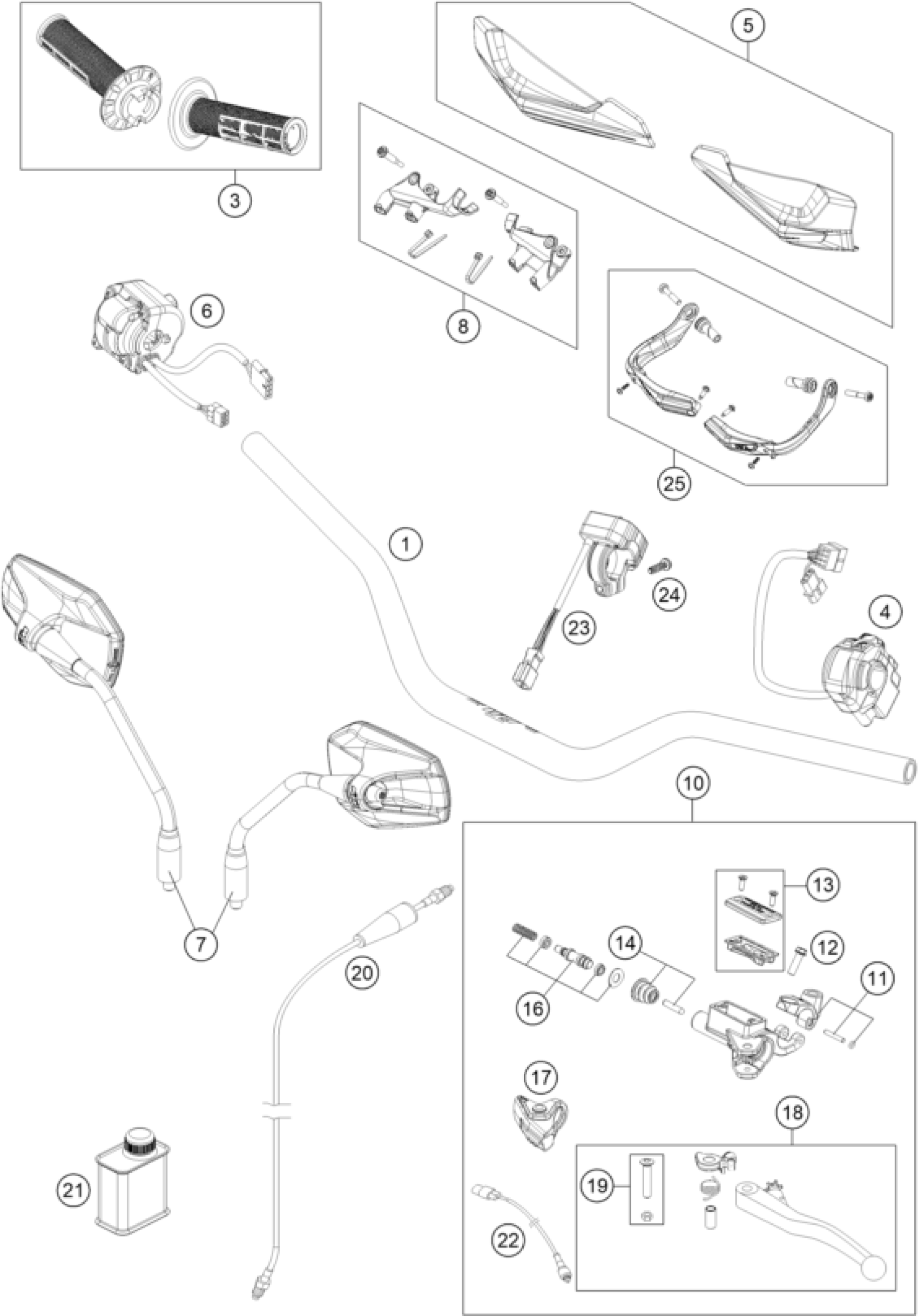

KTM 690 SMC R 2023 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Handelbar L=808mm, Dk=28.5mm

76902001000C1

Unavailable

3

Grip Set

A63402021500C1

Unavailable

4

Handlebar switch left

76511070100

Unavailable

5

Handguard cmpl.

76902182044EB

Unavailable

6

E-Throttle w/o grip

76111012000

Unavailable

7

Mirror

60312040200

Unavailable

8

Mounting kit handguard

76902079044

Unavailable

10

MASTER CYLINDER D=11 MM

27002030044

Unavailable

11

CLAMP, CYL. PIN, O-RING

76513005000

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable

13

COVER HYDR. CLUTCH DOT CPL.

25002033000

Unavailable

14

PUSH ROD CPL. 13

76502046000

Unavailable

16

REP. KIT PISTON DOT 11MM

27002032000

Unavailable

17

PROTECT.CAP FOR LEVER PERCH 13

76502037000

Unavailable

18

CLUTCH LEVER CPL.

27002031000

Unavailable

19

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

20

CLUTCH PIPE 1100MM

76032063000

Unavailable

21

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

22

CLUTCH SWITCH ATV

83111049000

Unavailable

23

Ignition curve switch (CAN)

76139074000

Unavailable

24

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

25

Wrap-around handguard

79602979044

Unavailable
