Description

Price

1

Fork outer tube 49.13x530 dt54

43578501

Unavailable

2

Fork protection ring 60,1mm

48601948

$2.05

4

axle clamp right d48mm black c

43578503S1

Unavailable

5

axle clamp left d48mm black cp

43578502S1

Unavailable

6

HH collar screw M8x30

0025080306

$3.08

7

cartridge right KTM 690 SMC R

43578291S2

Unavailable

8

cartridge left KTM 690 SMC R 2

43578290S2

Unavailable

9

Screw cap M51x1.5 black right

43578240S

$108.08

10

Screw cap M51x1.5 black left c

43578239S

$106.86

11

HS cylinder-head screw M10x25

43578177S1

Unavailable

12

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

3

Guide bushing set fork 48mm

R14047

Unavailable

13

"Seal kit 48mm SKF black"

RP10012T

Unavailable

14

spacer kit fork

RP80006

Unavailable

15

Adjuster kit fork

RP10026

Unavailable

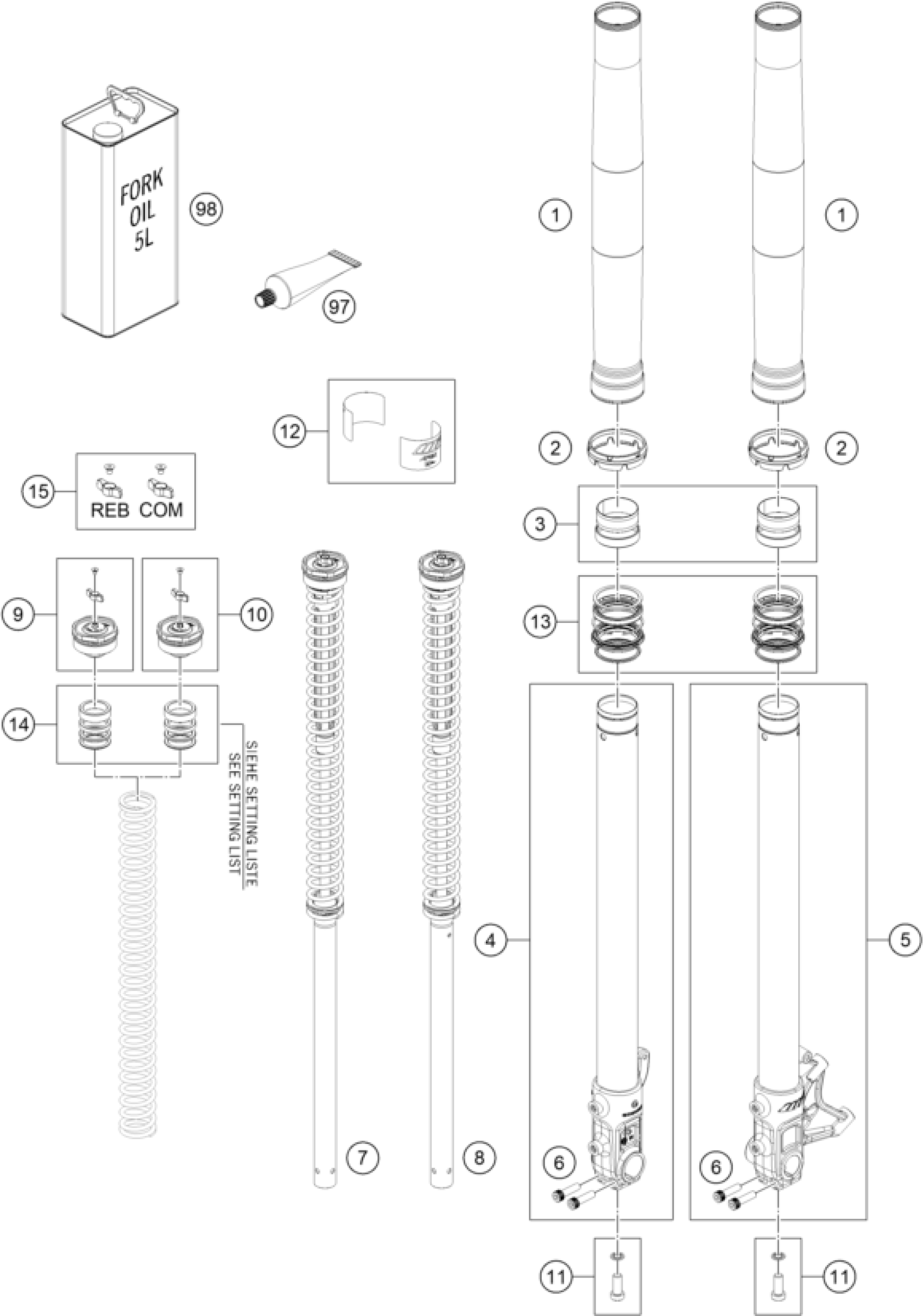

KTM 690 SMC R 2023 FRONT FORK DISASSEMBLED Diagram

Fork outer tube 49.13x530 dt54

Fork protection ring 60,1mm

axle clamp right d48mm black c

axle clamp left d48mm black cp

HH collar screw M8x30

cartridge right KTM 690 SMC R

cartridge left KTM 690 SMC R 2

Screw cap M51x1.5 black right

Screw cap M51x1.5 black left c

HS cylinder-head screw M10x25

Sticker set, APEX PRO OC 90x40

Fuchs grease IPR (250g)

Fork Fluid Viscosity 4.0 5L

Guide bushing set fork 48mm

"Seal kit 48mm SKF black"

spacer kit fork

Adjuster kit fork
