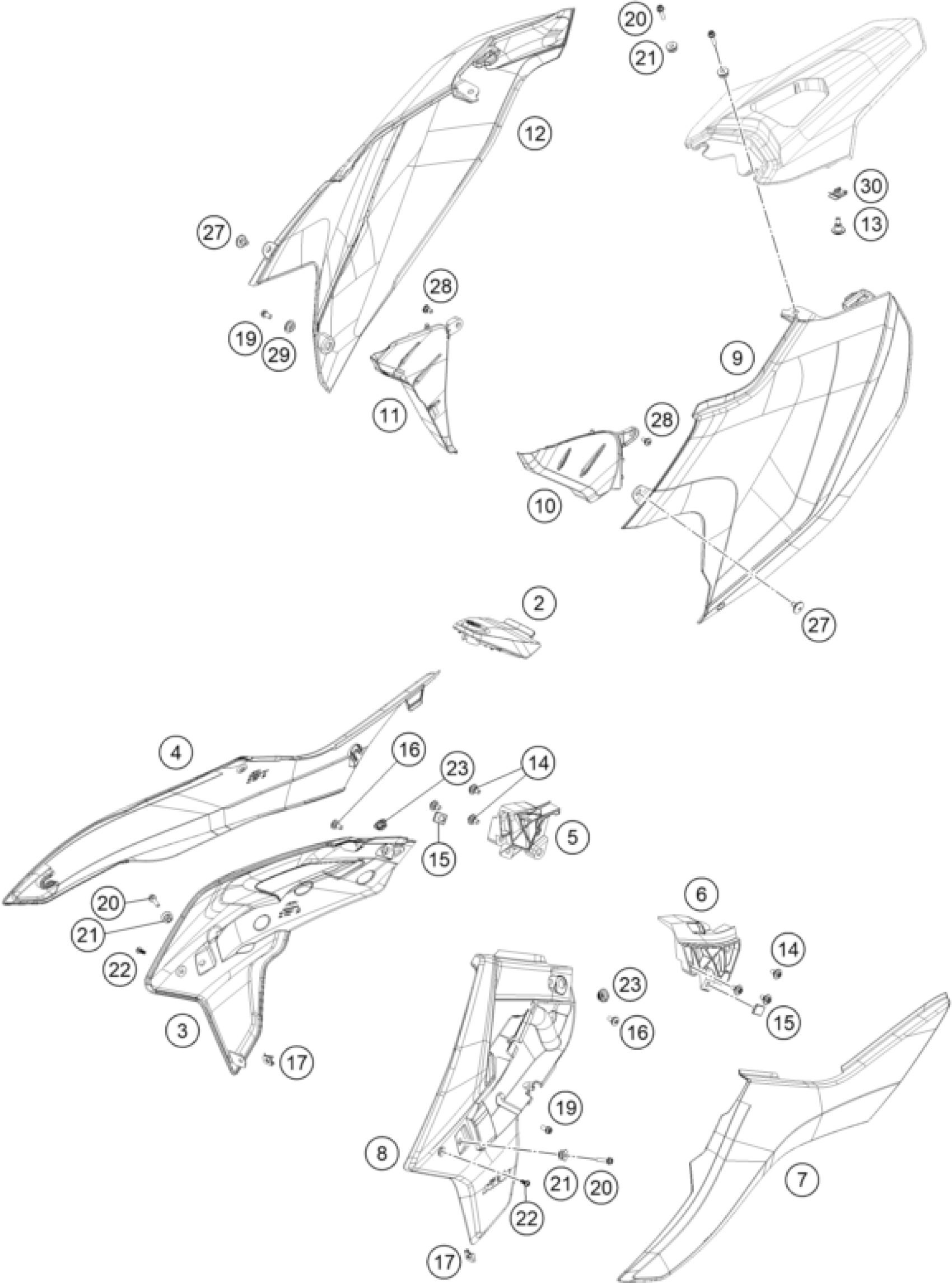

KTM 690 SMC R 2023 COVER Diagram

#

Description
Price

2

Ignition lock cover

76911068000

$31.97

3

Spoiler right

76908051000HD

$65.61

4

Fairing, front, right

76908061000EBB

$74.96

5

Seat carrier, right

76907042000

$15.79

6

Seat carrier, left

76907041000

$15.79

7

Fairing, front, left

76908060000EBB

$84.31

8

Spoiler left

76908050000HD

$65.61

9

Side fairing left

76908041200EBB

$121.80

10

side fairing, left front

76908041030

$10.53

11

Side fairing, right front

76908042030

$10.53

12

Side fairing right

76908042200EBB

$121.80

13

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

14

special screw M6x12x3

83008000012

$3.08

15

Isolation pad

77307040041

$2.05

16

special screw M6x14

69008021040

$2.05

17

RANGE CHANGE METAL NUT M5

54603048200

$5.23

19

HH collar screw M6x12 TX30

0025060126

$3.08

20

HH collar screw M5x20 TX30

0025050206

$2.05

21

seat sleeve

21007046000

$8.03

22

EJOT PT screw K50x12

0081050121

$2.05

23

quick release rubber grommet

47106003160

$4.11

27

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

28

special screw M5x12

69008021160

$4.11

29

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

30

clip nut M6

54603048100

$4.11
