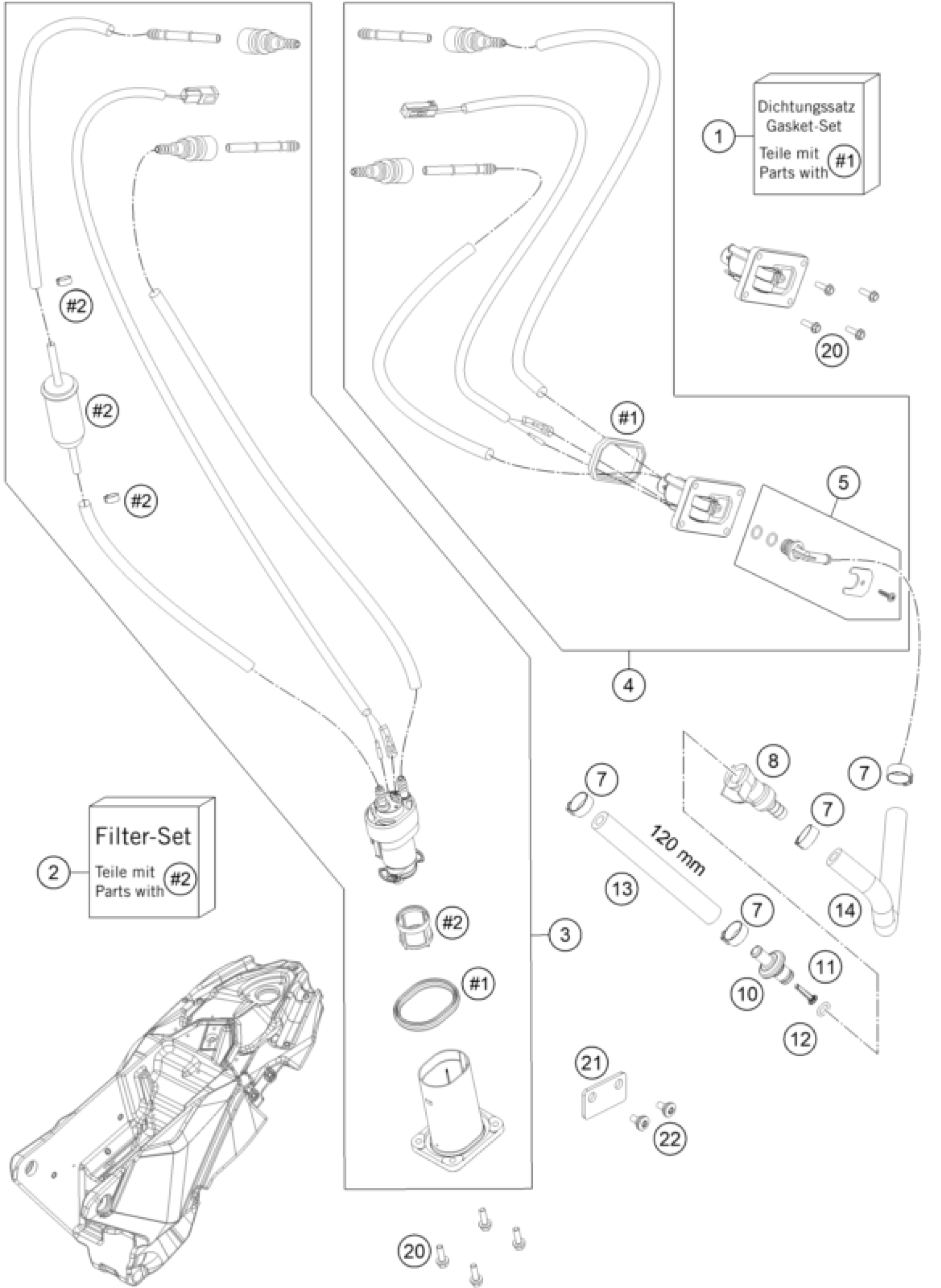

KTM 690 SMC R 2022 FUEL PUMP Diagram

#

Description
Price

1

SEALINGS KIT

75007089000

Unavailable

2

FILTER KIT

81207090100

Unavailable

3

Fuel pump

75007088511

Unavailable

4

Fuel pressure regulator flange

27007088112

Unavailable

5

HYDRAULIC CONNECTOR CPL.

75007092000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

8

Clutch CPC PLCD17005, black

5850701050030

Unavailable

10

Fuel connection

77707010000

Unavailable

11

FUEL FILTER

78141013190

Unavailable

12

O-ring VITON f. plug CPC 0

58507012000

Unavailable

13

FUEL HOSE 7,5X3,5 L=120

60007316120

Unavailable

14

FUEL HOSE THROTTLE VALVE

27007016050

Unavailable

20

HH collar screw M5x20 TX30

0025050206

Unavailable

21

SIDE PANEL BRACKET

27008047000

Unavailable

22

special screw M5x12

69008021160

Unavailable
