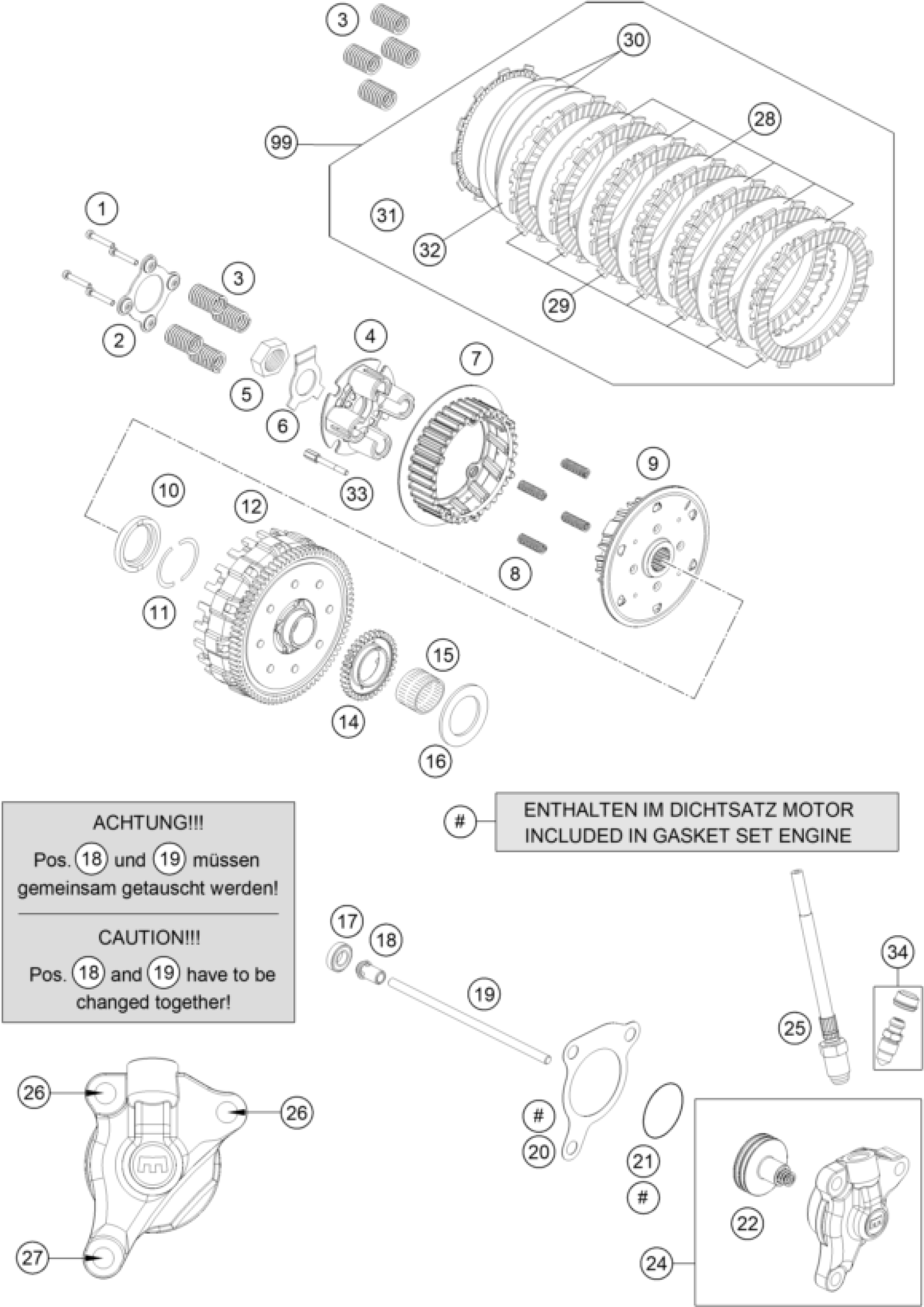

KTM 690 SMC R 2022 CLUTCH Diagram

#

Description
Price

1

Cyl.screw DIN14580 M5x30

014580050306

Unavailable

2

Anticentrifugal ring

76632006000

Unavailable

3

CLUTCH SPRING 3,0X33,5

58532080001

Unavailable

4

pressure plate

76632003044

Unavailable

5

hex nut M20x1,. H=6mm

60036073150

Unavailable

6

Lock washer

75032018100

Unavailable

7

Movable Hub

76632002102

Unavailable

8

CLUTCH RELEASE SPRING

75032033000

Unavailable

9

Fixed Hub

76632002101

Unavailable

10

STEPPED WASHER 07

75032009000

Unavailable

11

HALF-WASHER 07

75032007000

Unavailable

12

Clutch housing cpl.

75032001244

Unavailable

14

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

16

WASHER 26X40X2 07

75032017000

Unavailable

17

deep groove ball bearing 6001.

0625060016

Unavailable

18

PRESSURE BOLT 08

75032055100

Unavailable

19

PUSH ROD 08

75032054200

Unavailable

20

GASKET F. OUTPUT CYLINDER

59032065100

Unavailable

21

O-ring 30x1.5 NBR 70

0770300015

Unavailable

22

Piston kit output Cyl. Dot Cpl

76132066000

Unavailable

24

Output Cyl. Dot Cpl. 27mm

76132061044

Unavailable

25

CLUTCH PIPE 1100MM

76032063000

Unavailable

26

HH collar screw M6x20 TX30

0025060206

Unavailable

27

HH collar screw M6x35 TX30

0025060356

Unavailable

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

Unavailable

29

LINING DISK 2,7MM FCC 02

76632011000

Unavailable

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

Unavailable

31

LINING DISC CUT OUT

76632010000

Unavailable

32

STEEL DISK 1,5MM NITRIDED

75032112100

Unavailable

33

HOLDING SCREW GMB-M5X35

75032032000

Unavailable

34

BLEEDER SCREW WITH CAP

54732064000

Unavailable

99

Clutch Disk Kit without spring

76632010033

Unavailable
