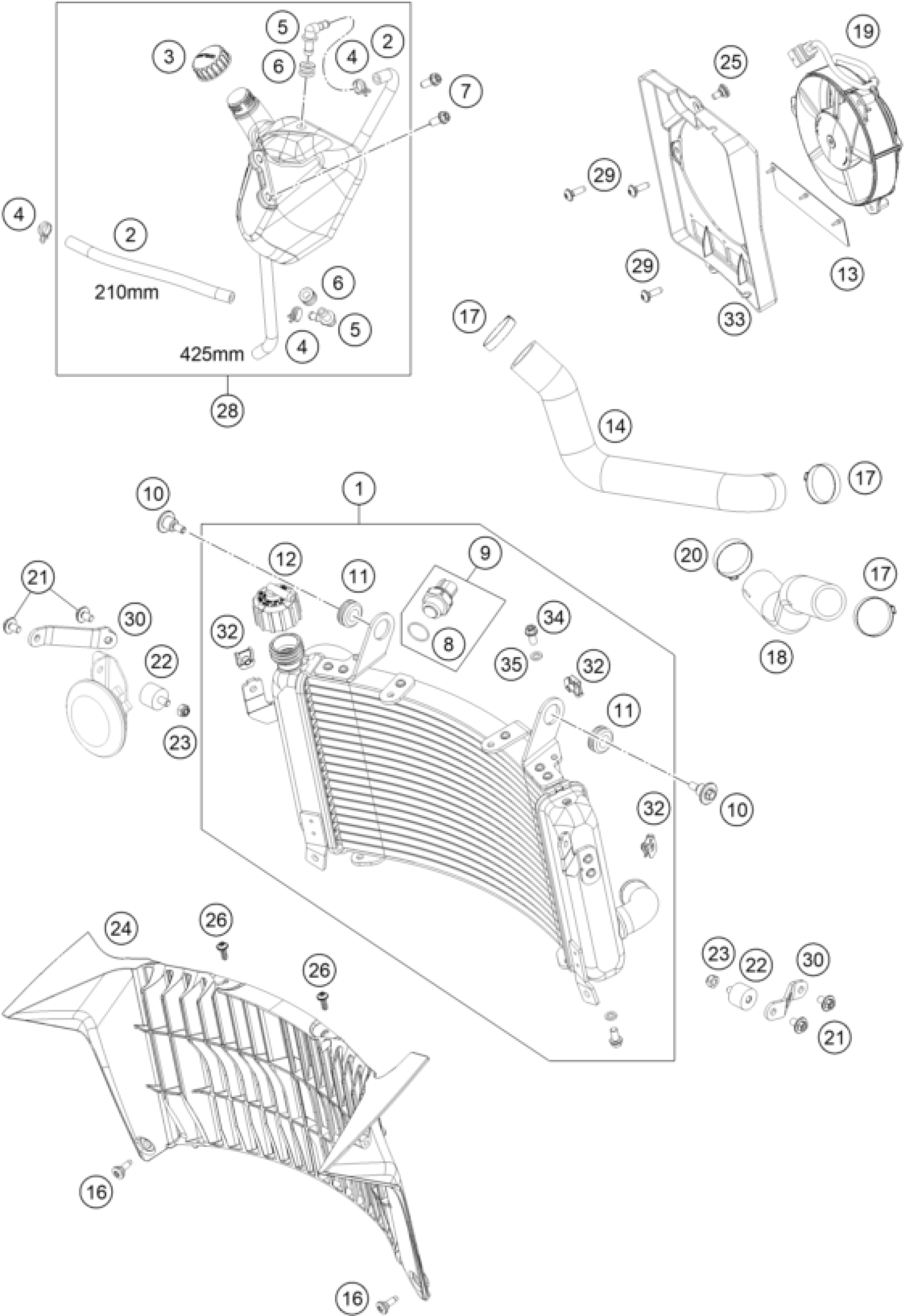

KTM 690 SMC R 2021 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

76935010000

$388.30

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

Latch, compens. tank cpl.

60335066044

$6.72

4

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

5

Angle piece, reservoir

60035068000

$3.08

6

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

7

COLLAR SCREW M6X12 TX

0023060123

$2.05

8

O-ring 17X1.5

0770017015

$1.49

9

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

10

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

11

RUBBER SLEEVE D=12MM

41001052000

$4.11

12

RADIATOR CAP 1,4 BAR

62535009000

$25.42

13

FAN CLACK RUBBER 08

62635044050

$8.03

14

COOLING HOSE

76535025100

$18.22

16

special screw M5x17

69008021060

$3.08

17

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

18

RADIATOR HOSE 08

76535024000

$24.68

19

VENTILATOR

62635041000

$142.39

20

VARIABLE ONE-EAR CLAMP 32,5MM

00050325706

$4.11

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

Radiator protection

76935040000

$29.35

25

special screw M5x12

69008021160

$4.11

26

EJOT PT screw K50x14

0081050141

$1.49

28

Water compensating tank cmpl.

76935065133

$59.18

29

EJOT PT SCREW K50X16 1451

0081050161

$1.49

30

RETAINING PLATE RADIATOR 08

76535001000

$10.37

32

clip nut M6

54603048100

$4.11

33

FAN COVER

75335044000

$7.28

34

HH collar screw M6x12 TX30

0025060126

$3.08

35

ALU-GASKET 6X10X1.5

60035048000

$3.08
