Description

Price

1

THROTTLE BODY

76641001000

$568.66

2

MAP SENSOR CPL. 07

75041085044

$179.98

3

FUEL RAIL ASSY SET 07

75041013044

$104.80

4

FUEL INJECTOR ASSY SET

76041023044

$203.35

15

O-RING

75041085010

$6.07

16

PLATE, STAY

75041085020

$5.23

17

SCREW WASHER

75041085030

$3.08

18

O-RING 7,2x2,2

75041023020

$9.06

19

SCREW SHOULDER

75041013060

$6.72

20

SCREW SHOULDER

75041013010

$6.63

21

SEAL RING

75041023010

$11.49

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

23

PRESSURE SENSOR 06

61041085100

$144.36

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

30

Engine control unit "KTKZ"

61941031000

$440.94

31

Rubber mount ECU

61741031050

$18.60

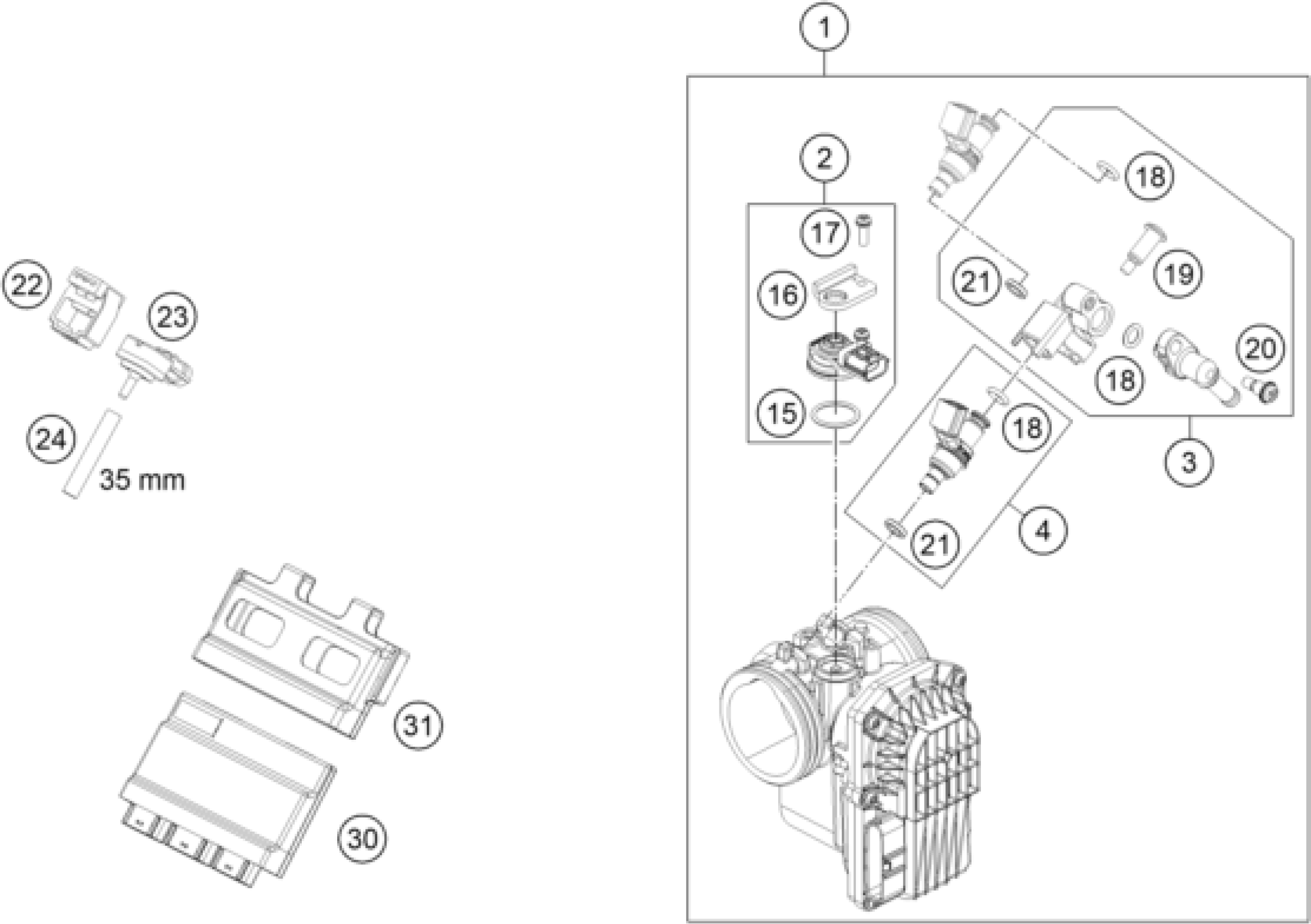

KTM 690 SMC R 2021 THROTTLE BODY Diagram

THROTTLE BODY

MAP SENSOR CPL. 07

FUEL RAIL ASSY SET 07

FUEL INJECTOR ASSY SET

O-RING

PLATE, STAY

SCREW WASHER

O-RING 7,2x2,2

SCREW SHOULDER

SCREW SHOULDER

SEAL RING

RUBBER SUPP. PRESSURE SENS. 06

PRESSURE SENSOR 06

HOSE 3,2X8,5 PER METER

Engine control unit "KTKZ"

Rubber mount ECU
