LIGHTING SYSTEM

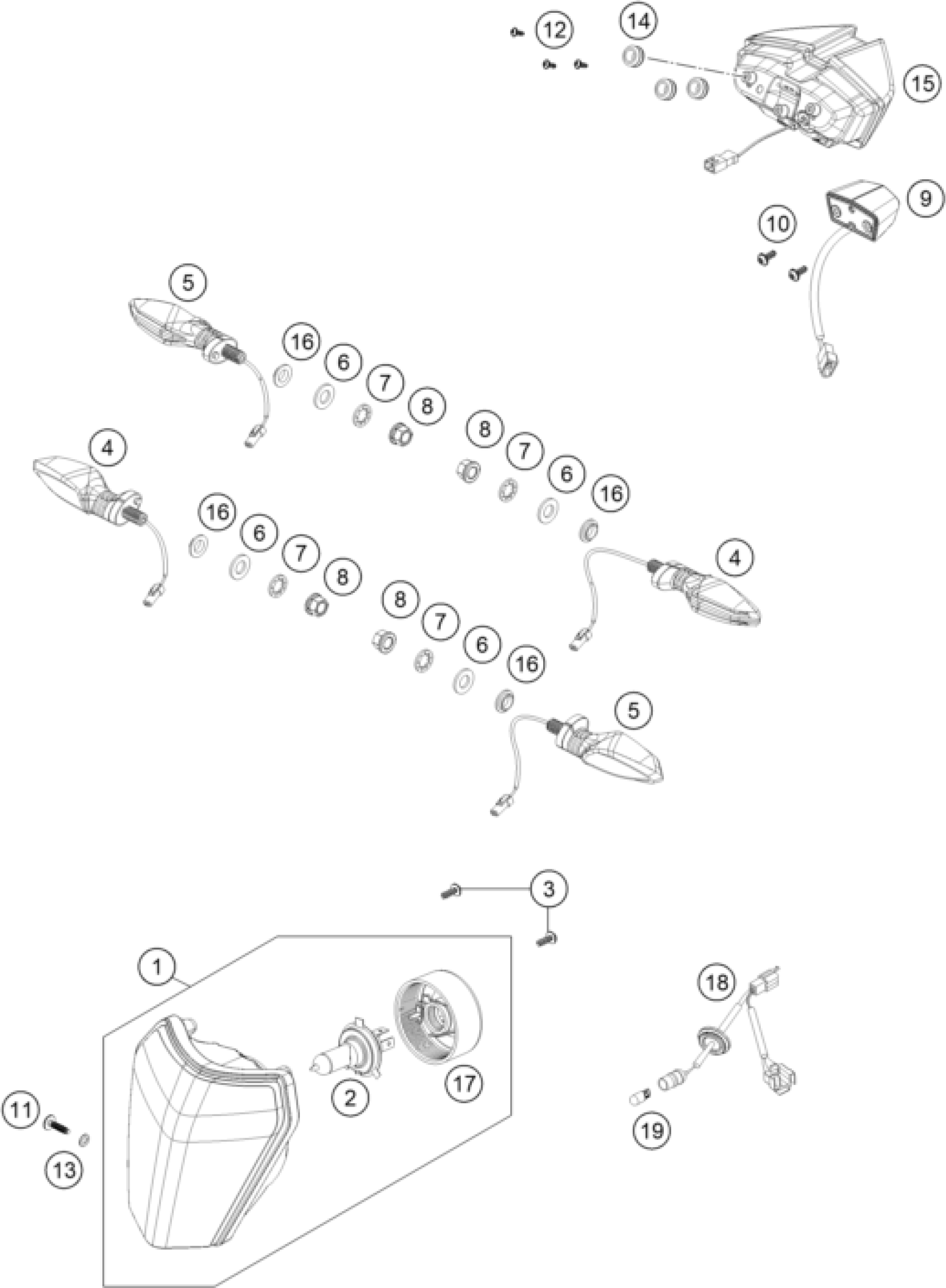

KTM 690 SMC R 2021 LIGHTING SYSTEM Diagram
#
Description
Price
1
Headlight
76914001100
Unavailable
2
BULB H4 12V 60/55W (P43T)
57111038000
Unavailable
3
EJOT PT screw K50x14
0081050141
Unavailable
4
turn signal front right/rear l
60314026000
Unavailable
5
turn signal front left/rear ri
60314025000
Unavailable
6
Washer DIN0433-M10
0433100003
Unavailable
7
LOCK WASHER DIN6797-J10,5 ZI
0797100003
Unavailable
8
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
9
license plate lighting
60314047000
Unavailable
10
EJOT PT screw K50x12
0081050121
Unavailable
11
EJOT PT screw 50x20 T25
0081050203
Unavailable
12
EJOT DELTA PT SCREW 45X12-Z
0081645121
Unavailable
13
Serrated lck washer, DIN 6798-
006798050103
Unavailable
14
rubber grommet 9x11x16x8.5 mm
60006001022
Unavailable
15
Tail light
63514040000
Unavailable
17
rubber cap for headlight
76914001050
Unavailable
18
wiring harness head light
76911079000
Unavailable
19
BULB 12V 5W (W2,1X9,5D) PHIL.
49011435100
Unavailable
16
Turn signal bushing
21114525030
Unavailable
