Partiron

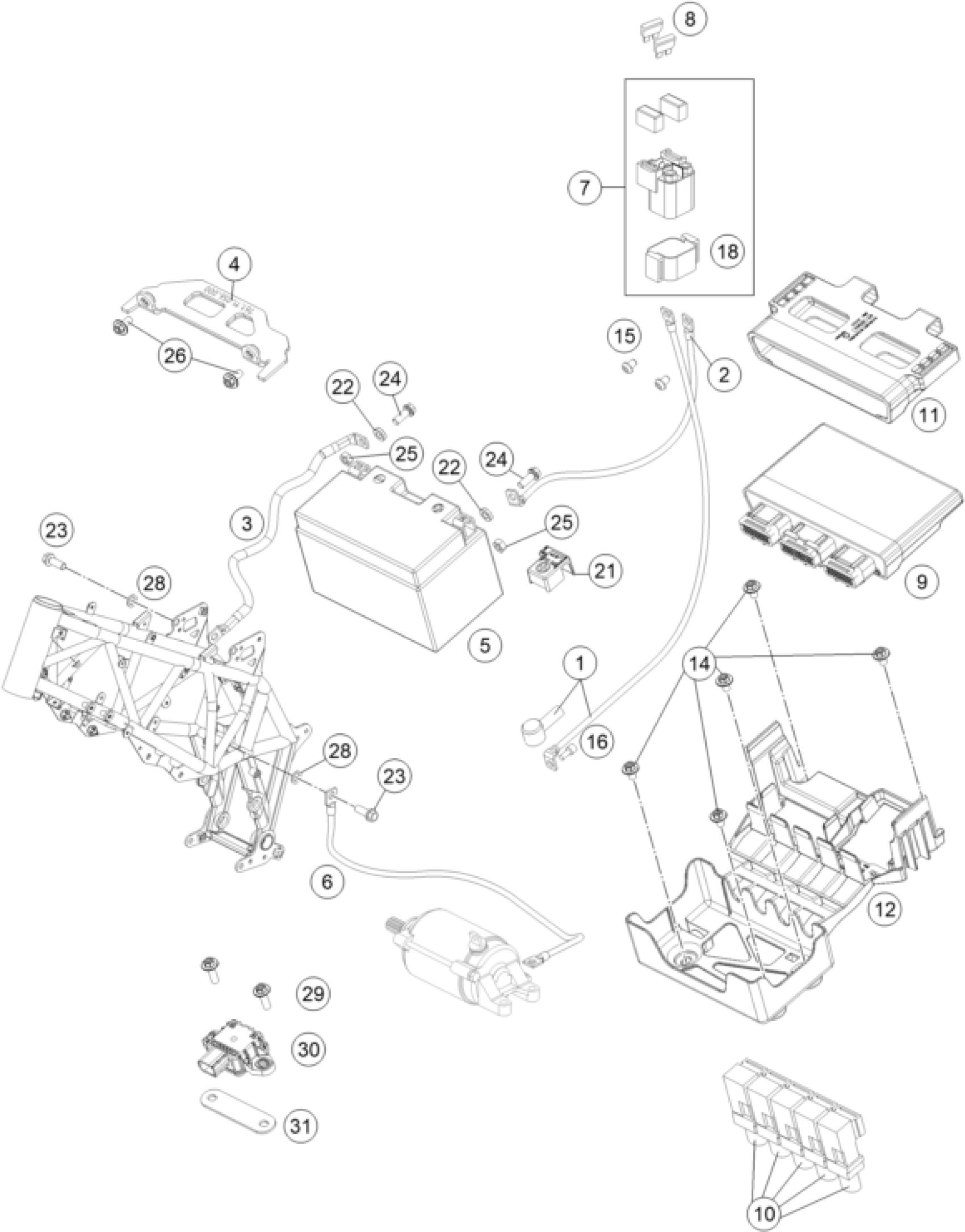

KTM 690 SMC R 2021 BATTERY Diagram

#

Description
Price

1

STARTER-CABLE L=570MM 08

76511059000

Unavailable

2

Battery cable

76111059050

Unavailable

3

Ground wire

76111097000

Unavailable

4

Retaining bracket battery cmpl

76111056044

Unavailable

5

BATTERY 12V 8,6AH 03

58411053100

Unavailable

6

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

7

Starter reley 12V 99

58211058000

Unavailable

8

Plug-in fuse, big 30A

58011109130

Unavailable

8

FUSE 25 A

58011109125

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

12

Electrical system support

76111055000

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

15

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

16

SHCS DIN 912 M5x8

0912050083

Unavailable

18

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

21

COVER POSITIVE POLE

62111059060

Unavailable

22

WASHER 6 X 12 X 3

12011016000

Unavailable

23

HH collar screw M6x12 TX30

0025060126

Unavailable

24

HH collar screw M6x16 TX30

0025060166

Unavailable

25

Hex. nut DIN 934 M6

0934060003

Unavailable

26

Lock screw M6x12 RIPP LOCK

0900000601201

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

30

Angle sensor

61542090000

Unavailable

31

Adapter plate 6D sensor

76142090010

Unavailable

9

Engine control unit "KTKZ"

61941031000

Unavailable

11

Rubber mount ECU

61741031050

Unavailable

29

HH collar screw M6x20 TX30

0024060206

Unavailable
