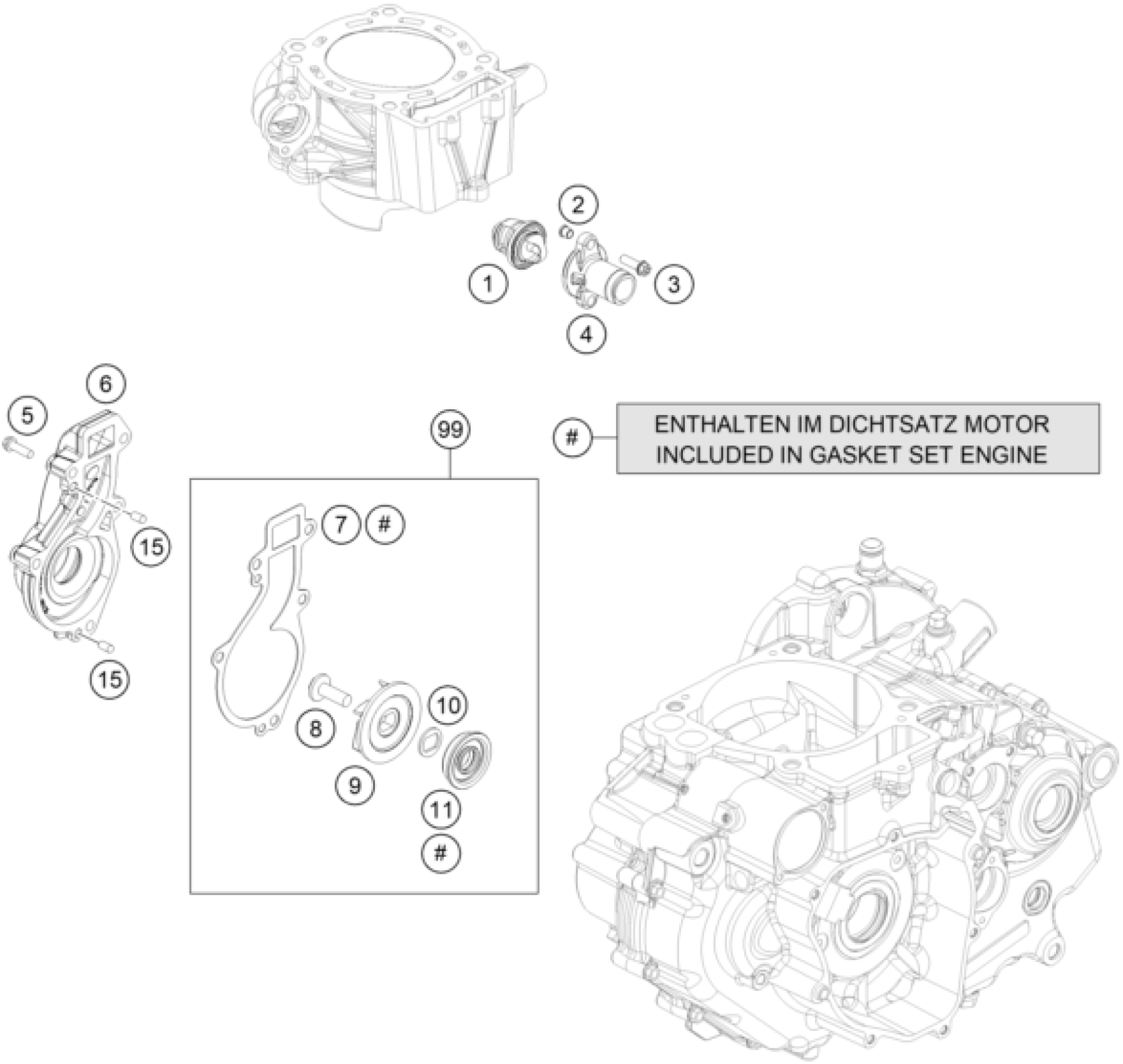

KTM 690 SMC R 2020 WATER PUMP Diagram

#

Description

Price

1

THERMOSTAT 07

75035017000

Unavailable

2

SUPPORTING SLEEVE 03

60040027050

Unavailable

3

HH collar screw M6x20 TX30

0025060206

Unavailable

4

THERMOSTATCOVER 07

75035016000

Unavailable

5

HH collar screw M6x30 TX30

0025060306

Unavailable

6

WATERPUMP COVER 10

7503505210033

Unavailable

7

WATER PUMP COVER GASKET 07

75035053000

Unavailable

8

HH Collar screw M6x13 TX30 SL

0024060136S

Unavailable

9

WATER PUMP ROTOR 07

75035055000

Unavailable

10

double-d washer 16x1 SST

60035055150

Unavailable

11

radial shaft seal 34.5x15x9 Du

0760153459

Unavailable

15

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

99

Water Pump Kit Rep.

75035055110

Unavailable
