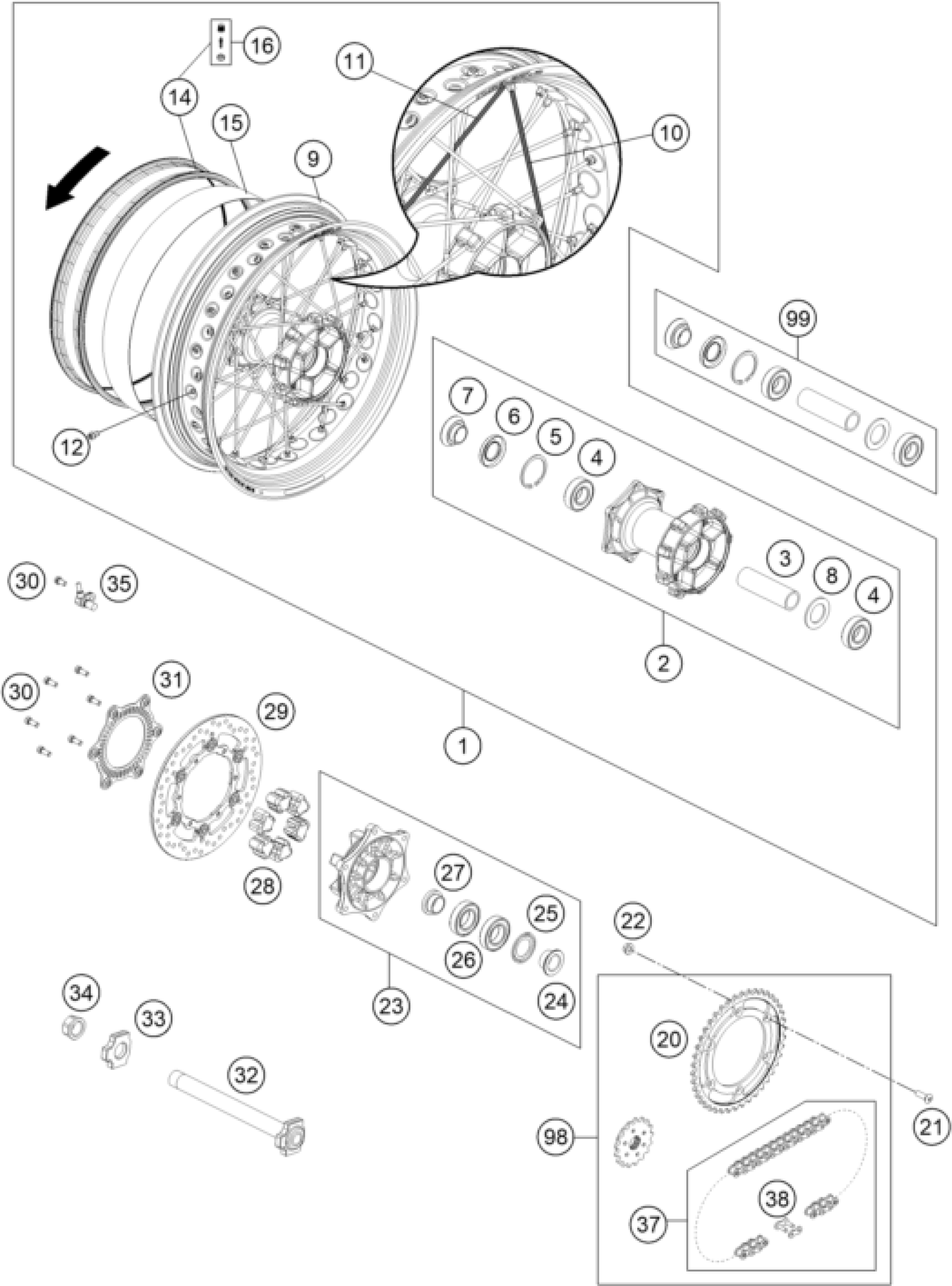

KTM 690 SMC R 2020 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cpl. 5,0x17" TL

75010101144C1A

$1,239.90

2

REAR WHEEL HUB CPL. BLACK

7531001004433

$363.33

3

BEARING SPACER TUBE L=106MM 07

75310011000

$21.40

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

9

Rear rim 5,0x17"

75010470000C1A

$659.17

10

SPOKE M4,5X196-16G 17'' INOX

75010073196

$5.23

11

SPOKE M4,5X0,75X181

81210171181

$4.11

12

SPOKE NIPPLE QUADRAX M4,5

81210072100

$2.05

14

GASKET RUB. 17X5'' CPL.W. VALV

75010177044

$54.69

15

RIM BAND 17''X 5.00''

75010073000

$39.26

16

VALVE CPL.

81210076000

$15.04

20

Sprocket 45-t steel

75010051045

Unavailable

20

SPROCKET STEALTH 42T 07

75010051042

$70.12

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

$219.06

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

BRAKE DISK REAR D=240

76510160000

$225.70

30

SHCS ISO 14580 M6x16 SL

014580060166S

$2.05

31

SENSOR WHEEL ABS REAR

76542021000

$34.68

32

WHEEL SPINDLE CPL.

75310085144

$78.91

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

35

ABS-SENSOR

76042125000

$189.98

37

chain DID 118 roll

76910065118

$128.83

38

Rivet link chain DID 520 VP2-T

76910066000

$20.00

98

DRIVETRAIN KIT 701 SM 16T/42T

00050002074

Unavailable

99

REAR WHEEL REP. KIT

75010015000

Unavailable
