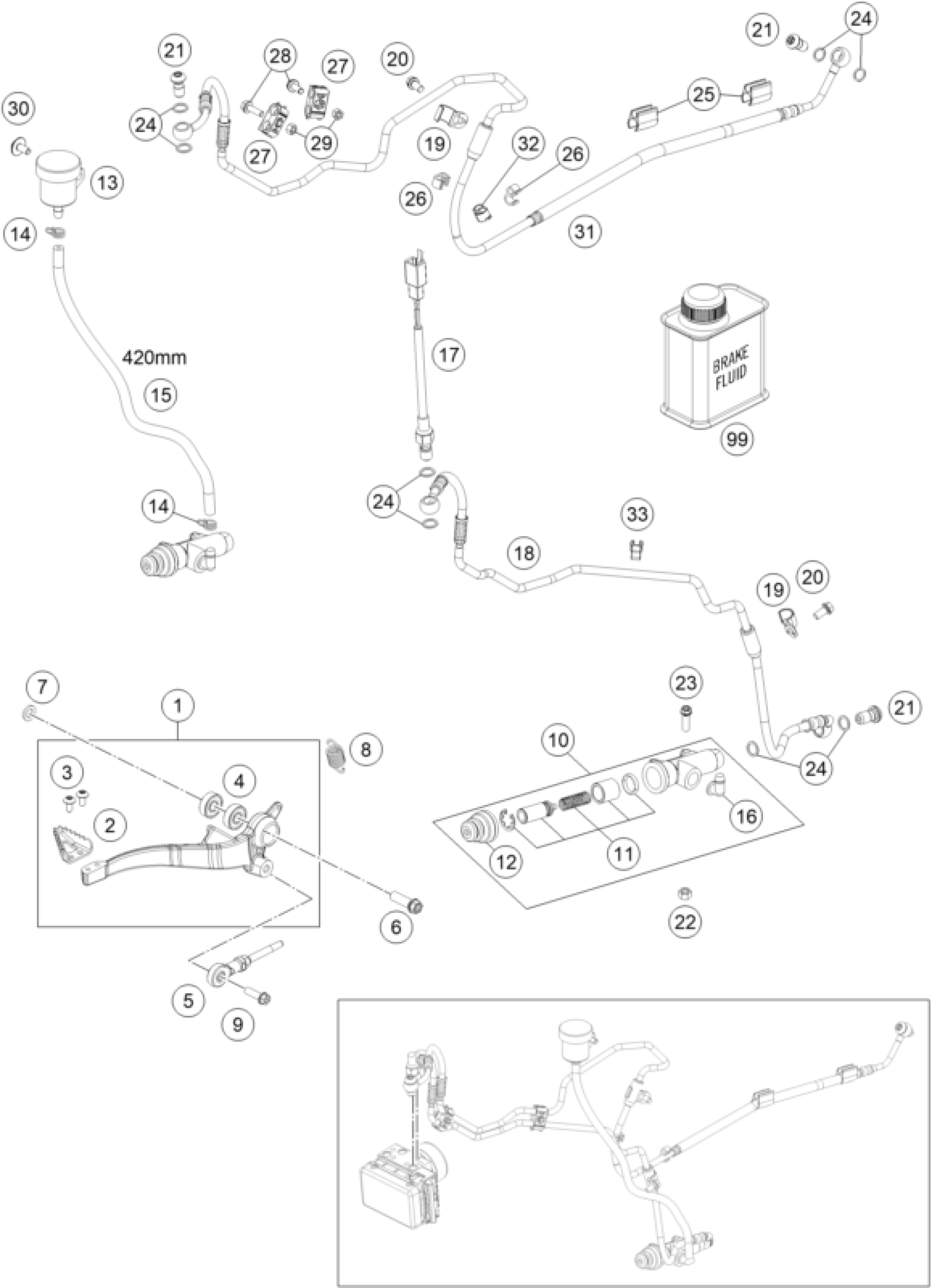

KTM 690 SMC R 2020 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Footbrake lever preassembled

76913050144

Unavailable

2

STEP PLATE FOOT BRAKE LEVER 03

60013051000

Unavailable

3

SCREW TORX M5X10 05

58605083010

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

PUSH ROD CPL.

76513056144

Unavailable

6

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

7

washer DIN 125 A -8.4

0125080003

Unavailable

8

Return spring for brake lever

54603062200

Unavailable

9

HH collar screw M6x20 TX30

0025060206S

Unavailable

10

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

11

REPAIR KIT PISTON 13MM

76513061000

Unavailable

12

RUBBER SLEEVE

54513151000

Unavailable

13

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

14

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

15

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

16

ANGLE PIECE

54513155000

Unavailable

17

BRAKE LIGHT SWITCH REAR

62111051000

Unavailable

18

BRAKE HOSE REAR MASTER CYL.

76542003000

Unavailable

19

CLAMP

76542050000

Unavailable

20

HH collar screw M6x12 TX30

0025060126

Unavailable

21

banjo bolt M10x1x19.5

62113020100

Unavailable

22

STOP NUT M6 DIN6926 A2-70

0926060000

Unavailable

23

HH collar screw M6x25 TX30

0025060256

Unavailable

24

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

25

CABLE SUPPORT 10/4MM 2014

54813026100

Unavailable

26

BAR SPACER 4/7 BLACK

60111094100

Unavailable

27

SUPPORT FOR BRAKE HOSE M5

60113146000

Unavailable

28

HH collar screw M5x16 TX30

0025050166

Unavailable

29

Self locking nut DIN 985 M5

0985050003

Unavailable

30

HH collar screw M6x13 TX30

0024060136

Unavailable

31

BRAKE HOSE REAR CALIPER

76542001000

Unavailable

32

spacer bracket D=6/8,5mm

76913047010

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

33

Hose bracket

76913047020

Unavailable
