Description

Price

1

EVAPORATIVE CANISTER 08

59415001100

$32.90

2

Activated charcoal filter clam

76915002000

$5.60

3

special screw M5x17

69008021060

$3.08

4

clip nut M5

69008021080

$3.08

5

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

6

EVAP valve

76015015000

$254.78

7

Reducer GRS8-6

28515023100

$4.11

8

HOSE EPA D=4/8 L=2000MM

78015021000

$49.92

9

Hose 8x13 FKM/ECO

28515024001

$66.00

10

Reducer GRS6-4 black

76915023000

$4.11

11

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

12

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

13

PLUG D=10

61315026000

$21.87

14

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

16

VARIABLE ONE-EAR CLAMP 17,0MM

00050170706

$2.05

17

stepless one-ear clamp

00050109706

$4.11

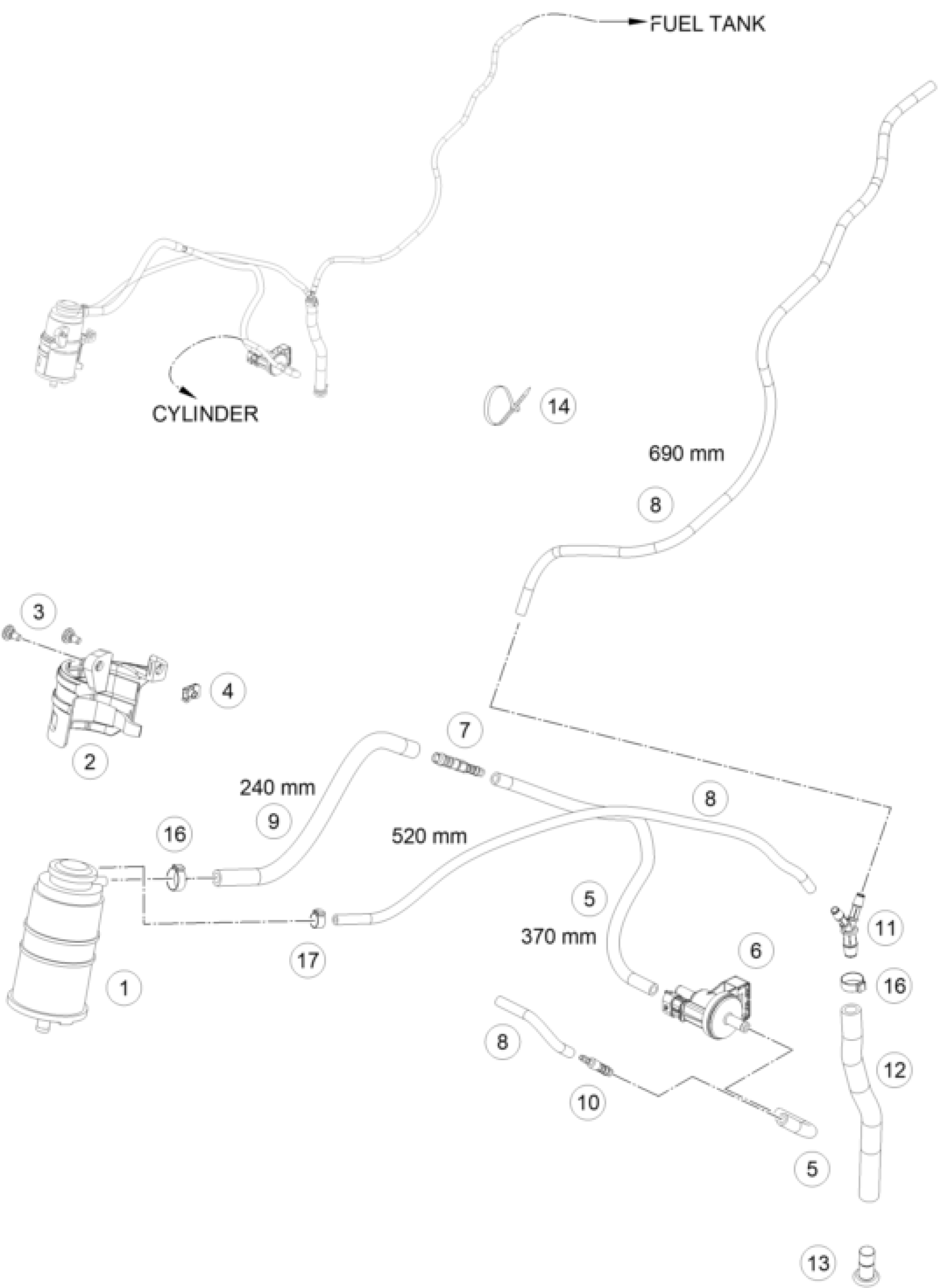

KTM 690 SMC R 2020 EVAPORATIVE CANISTER Diagram

EVAPORATIVE CANISTER 08

Activated charcoal filter clam

special screw M5x17

clip nut M5

HOSE EPA D=6/10 PER METER

EVAP valve

Reducer GRS8-6

HOSE EPA D=4/8 L=2000MM

Hose 8x13 FKM/ECO

Reducer GRS6-4 black

Y-CONNECTOR YS 6-10-6

HOSE EPA D=10/16 L=2000MM

PLUG D=10

CABLE TIE 140/2,5MM BLACK

VARIABLE ONE-EAR CLAMP 17,0MM

stepless one-ear clamp
