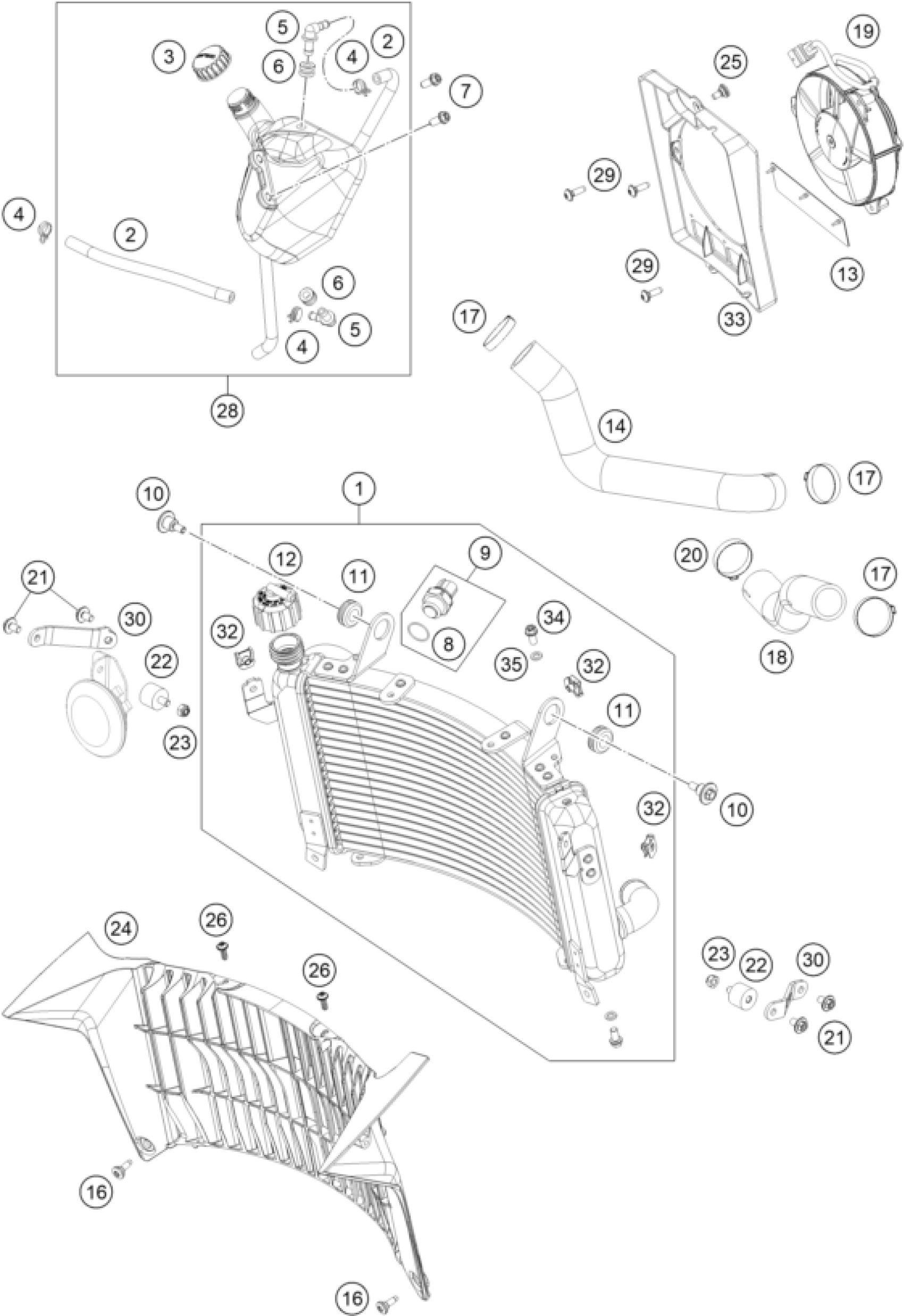

KTM 690 SMC R 2020 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

76935010000

Unavailable

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

Latch, compens. tank cpl.

60335066044

Unavailable

4

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

5

Angle piece, reservoir

60035068000

Unavailable

6

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

7

COLLAR SCREW M6X12 TX

0023060123

Unavailable

8

O-ring 17X1.5

0770017015

Unavailable

9

THERMOSWITCH LC8 102DG '03

60035045000

Unavailable

10

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

11

RUBBER SLEEVE D=12MM

41001052000

Unavailable

12

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

13

FAN CLACK RUBBER 08

62635044050

Unavailable

14

COOLING HOSE

76535025100

Unavailable

16

special screw M5x17

69008021060

Unavailable

17

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

18

RADIATOR HOSE 08

76535024000

Unavailable

19

VENTILATOR

62635041000

Unavailable

21

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

22

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

23

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

24

Radiator protection

76935040000

Unavailable

25

special screw M5x12

69008021160

Unavailable

26

EJOT PT screw K50x14

0081050141

Unavailable

28

expansion tank assy

76935065033

Unavailable

29

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

30

RETAINING PLATE RADIATOR 08

76535001000

Unavailable

32

clip nut M6

54603048100

Unavailable

33

FAN COVER

75335044000

Unavailable

34

HH collar screw M6x12 TX30

0025060126

Unavailable

35

ALU-GASKET 6X10X1.5

60035048000

Unavailable

20

VARIABLE ONE-EAR CLAMP 32,5MM

00050325706

Unavailable
