Description

Price

1

Clutch cover cmpl.

7683000124441

$254.87

2

oil plug cpl. M24x3

58030020100

$5.23

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

4

OIL SIGHT GLASS

59030019200

$21.31

5

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

6

SHAFT SEAL RING 17X28X6 FKM

0760172861

$10.18

7

CLUTCH CASE GASKET 07

75030025000

$19.53

8

SCREW PLUG

59030296000

$6.26

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

HH collar screw M6x30 TX30

0025060306

$3.08

11

CIRCLIP DIN0472-28X1,2

0472280120

$2.05

12

O-RING 19,00X3,00 NBR

0770191015

$2.05

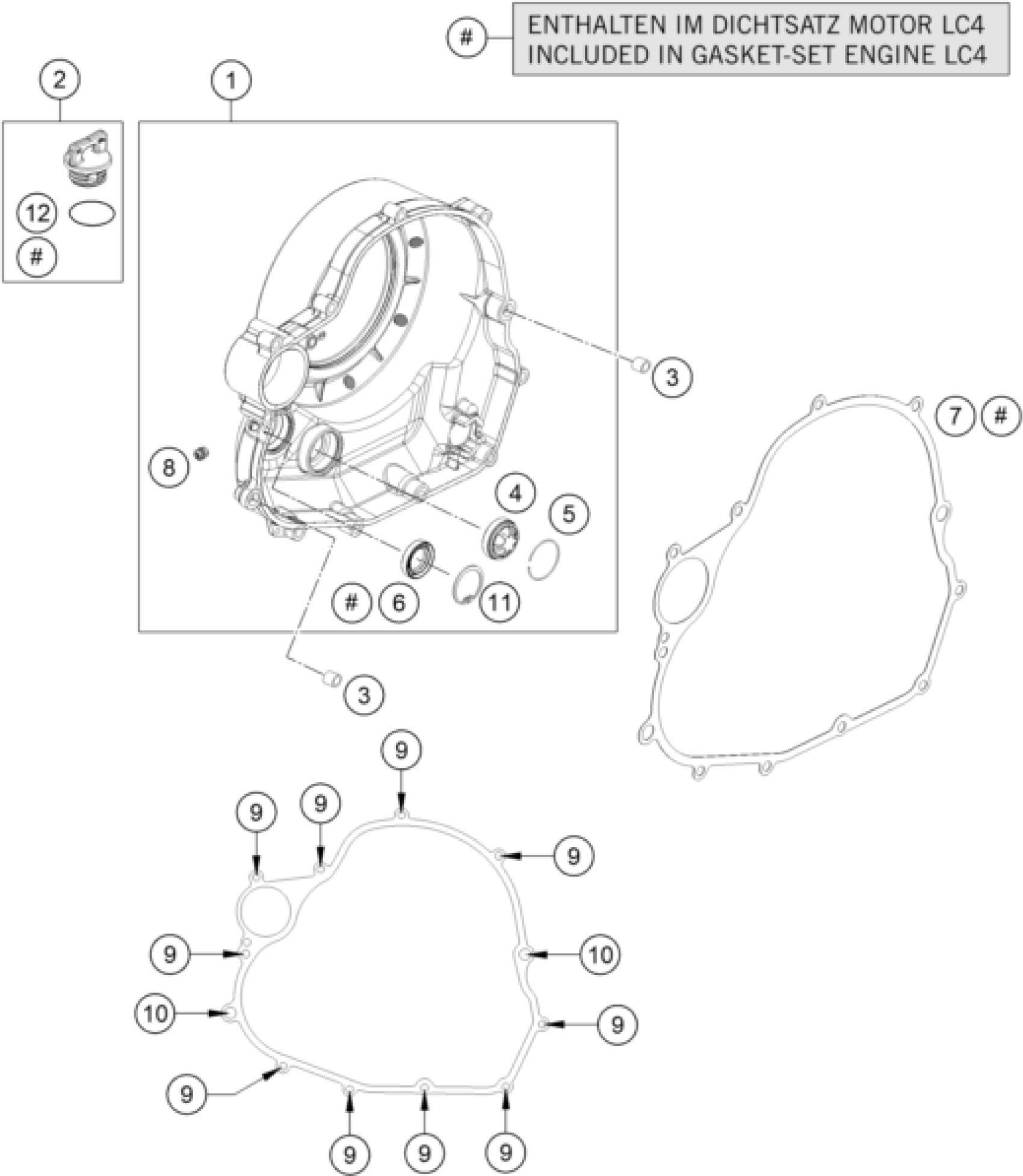

KTM 690 SMC R 2020 CLUTCH COVER Diagram

Clutch cover cmpl.

oil plug cpl. M24x3

DOWEL 9,8 X 7 X 10

OIL SIGHT GLASS

CIRCLIP OIL LEVEL GLASS 03

SHAFT SEAL RING 17X28X6 FKM

CLUTCH CASE GASKET 07

SCREW PLUG

HH collar screw M6x25 TX30

HH collar screw M6x30 TX30

CIRCLIP DIN0472-28X1,2

O-RING 19,00X3,00 NBR
