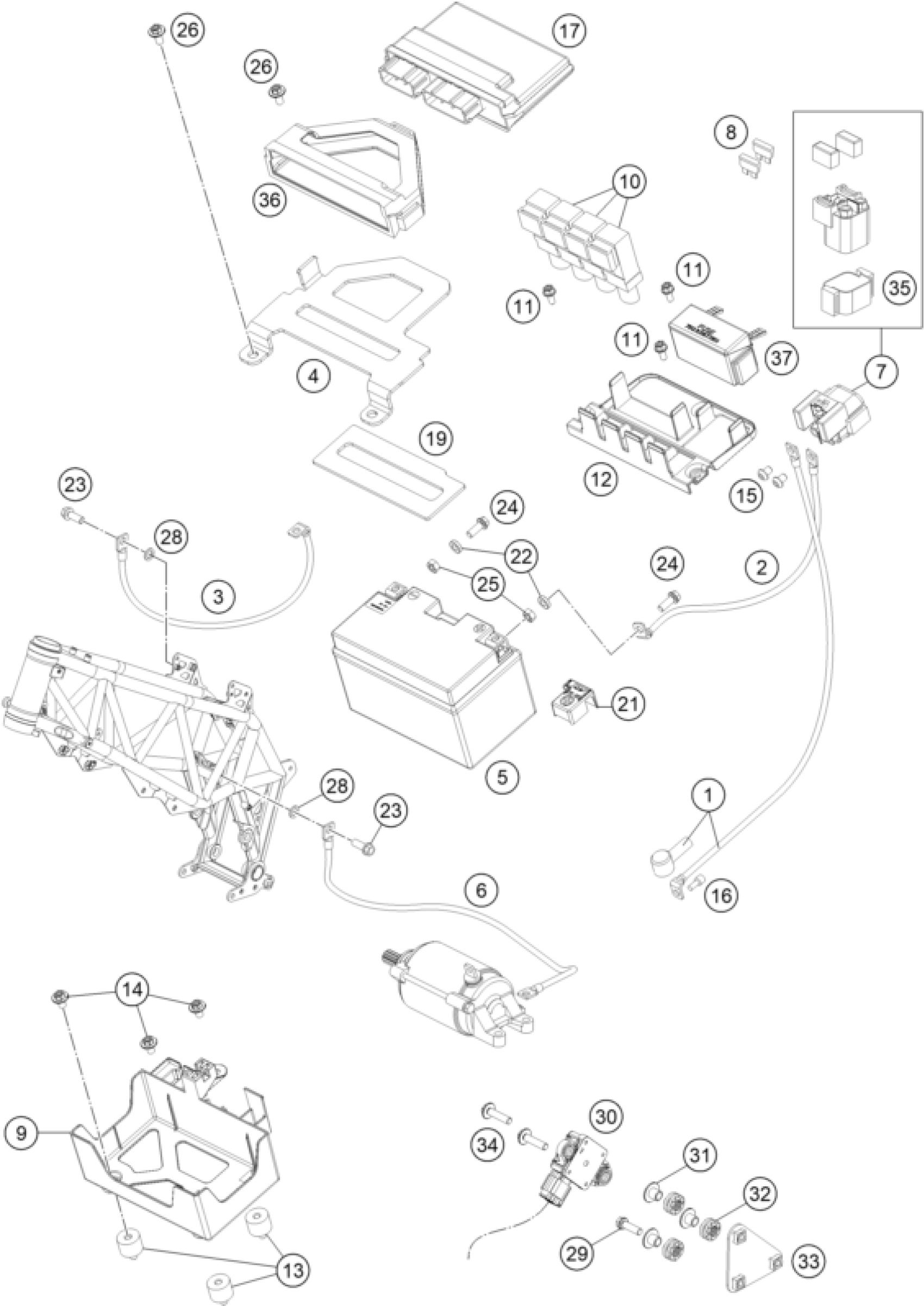

KTM 690 SMC R 2020 BATTERY Diagram

#

Description
Price

1

STARTER-CABLE L=570MM 08

76511059000

$16.63

2

BATTERY-CABLE L=170MM

75011059150

$13.74

3

GROUND CABLE

76211097000

$21.87

4

Retaining bracket

27011056044

$31.88

5

BATTERY 12V 8,6AH 03

58411053100

$309.38

6

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

7

Starter reley 12V 99

58211058000

$72.64

8

Plug-in fuse, big 30A

58011109130

$2.05

8

FUSE 25 A

58011109125

$2.05

8

FUSE 15 A

58011109115

Unavailable

9

BATTERY BRACKET

76511054100

$8.69

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

HH collar screw M5x12 TX30

0025050126

$3.08

12

HOLDER F.ELECTRIC 08

76511055000

$5.23

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

SHCS DIN 912 M5x8

0912050083

$1.49

17

Control unit EFI

61341031300

$625.23

19

absorber f. battery retaining

27011056050

$4.11

21

COVER POSITIVE POLE

62111059060

$4.11

22

WASHER 6 X 12 X 3

12011016000

$1.49

23

HH collar screw M6x12 TX30

0025060126

$3.08

24

HH collar screw M6x16 TX30

0025060166

$3.08

25

Hex. nut DIN 934 M6

0934060003

$1.49

26

HH collar screw M6x13 TX30

0024060136

$3.08

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

29

HH collar screw M6x20 TX30

0025060206

$3.08

30

inertial sensor

60342090100

$466.28

31

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

32

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

33

Retaining bracket, angle senso

76903001061

$33.00

34

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

35

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

36

ECU RUBBER BRACKET

60341031050

$17.76

37

RUBBER CASING FOR FUSE BOX

75011087050

$11.59
