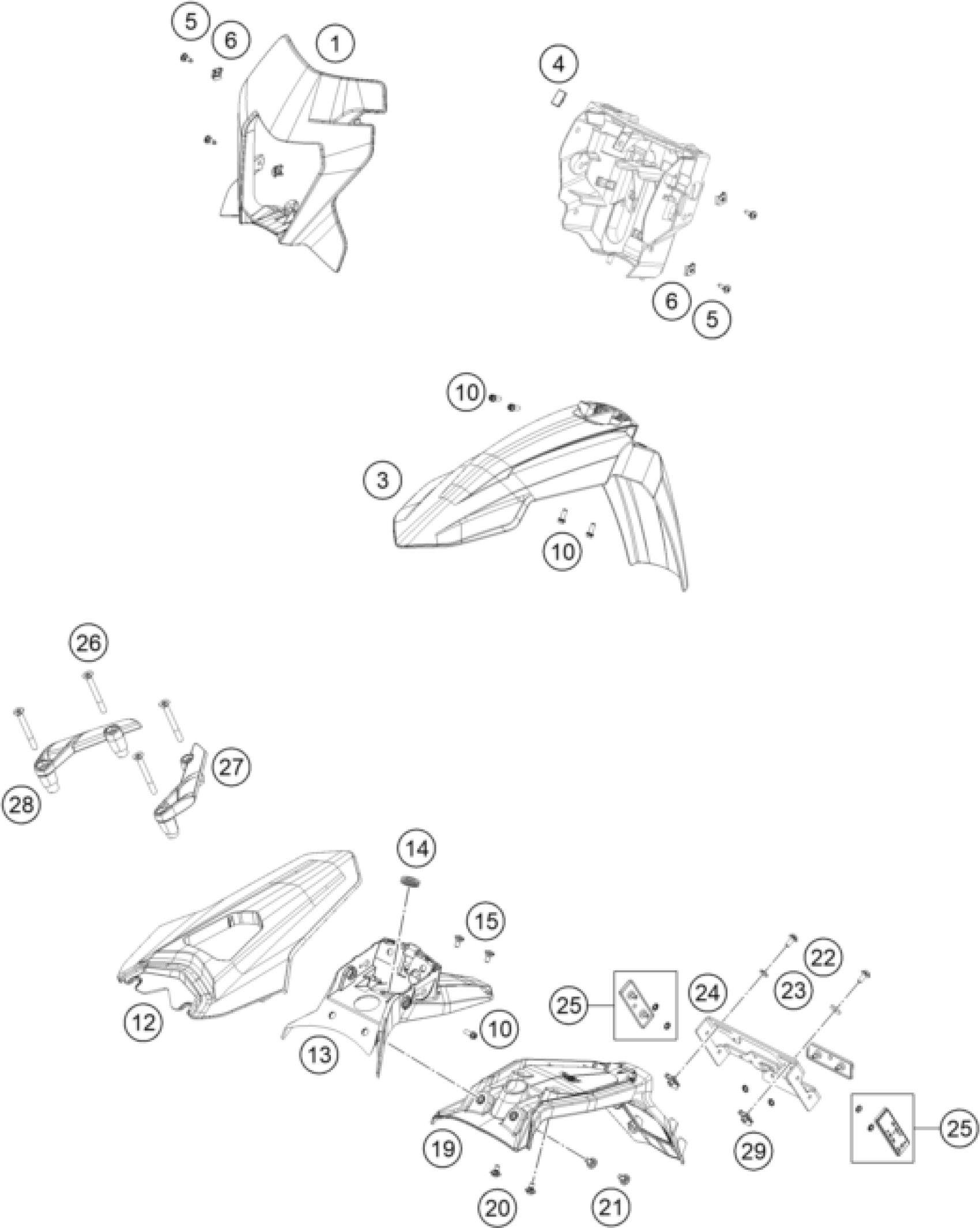

KTM 690 SMC R 2019 MASK, FENDERS Diagram

#

Description
Price

1

Headlight shroud

76908001000C1

$33.65

3

Front fender Supermoto

76908010000C1

$42.83

4

Isolation pad

77307040041

$2.05

5

special screw M5x17

69008021060

$3.08

6

RANGE CHANGE METAL NUT M5

54603048200

$5.23

10

HH collar screw M6x16 TX30

0025060166

$3.08

12

Rear fender

76908013000C1

$23.45

13

License plate holder, upper pa

76908015000

$56.09

14

Rubber grommet, standby gas se

60006001023

$5.23

15

special screw M6x14

69008021040

$2.05

19

License plate holder, bottom p

76908016000

$52.78

20

special screw M6x12x3

83008000012

$3.08

21

SPECIAL SCREW M6X15X3

83008000015

$3.08

22

HH collar screw M6x15 TX30

0024060156S

$2.05

23

Washer DIN9021-A 6.4

0021060003

$2.05

24

Retaining bracket side reflect

6411208100033

$79.09

25

Rear reflector red

58412080400

$5.23

26

HH collar screw M8x55 TX40

0025080556

$5.23

27

passenger handle bar left

76912008000

$20.09

28

passenger handle bar right

76912009000

$20.00

29

clip nut M6

54603048100

$4.11
