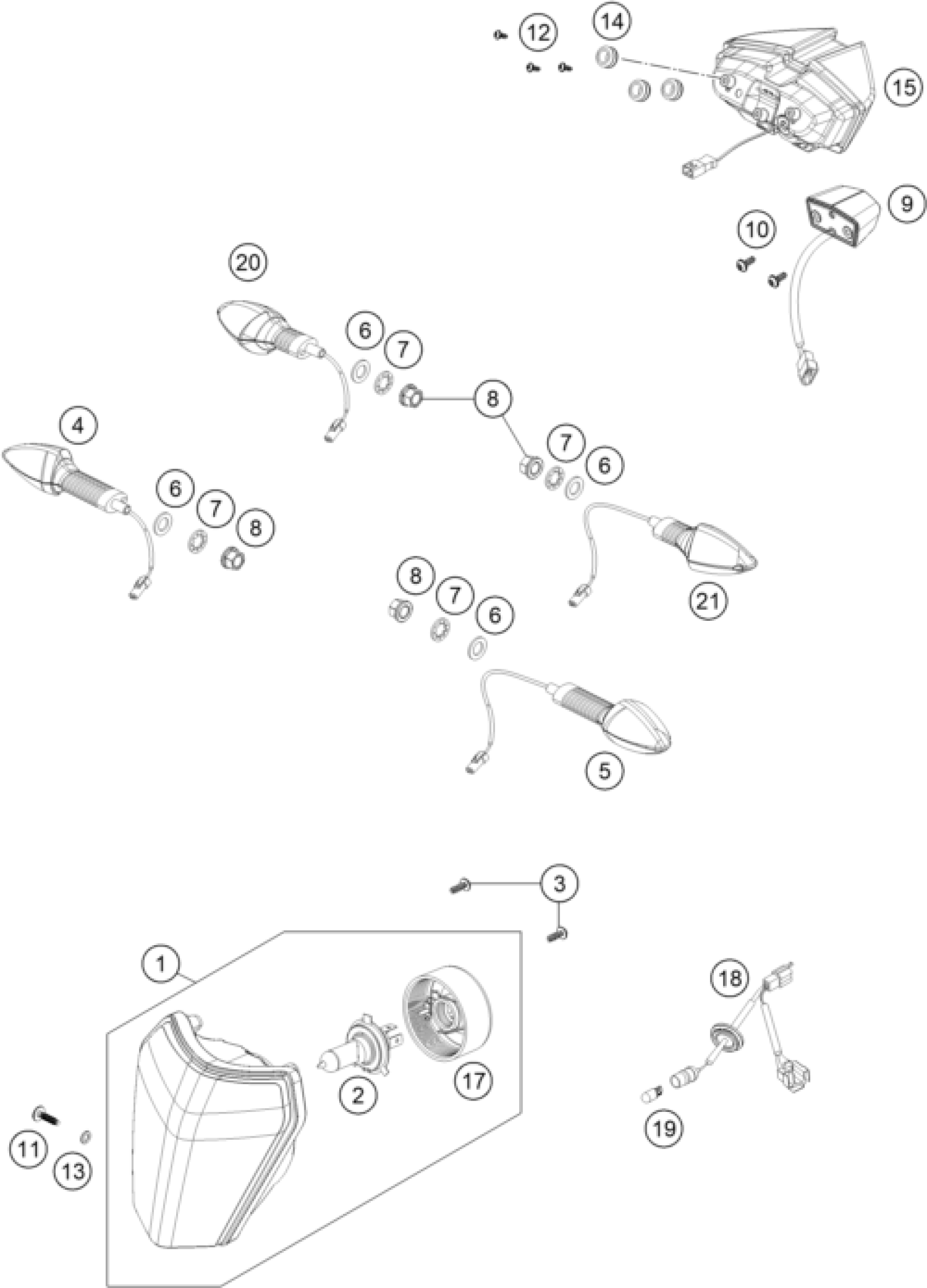

KTM 690 SMC R 2019 LIGHTING SYSTEM Diagram

Headlight

76914001000

$116.77

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

EJOT PT screw K50x14

0081050141

$1.49

FLASHER CPL.FRONT R/S REAR L/S

26514026000

$39.07

FLASHER CPL.FRONT L/S REAR R/S

26514025000

$39.07

Washer DIN0433-M10

0433100003

$1.49

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

license plate lighting

60314047000

$35.62

EJOT PT screw K50x12

0081050121

$2.05

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

Tail light

63514040000

$169.60

rubber cap for headlight

76914001050

$5.23

wiring harness head light

76911079000

$15.79

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

EJOT PT screw 50x20 T25

0081050203

$1.49

Serrated lck washer, DIN 6798-

006798050103

$1.49

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49
