Description

Price

1

main harness

76911075000

$856.73

2

Rear part, wiring harness

76911076000

$41.04

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

6

VOLTAGE REGULATOR

62511034100

$163.80

7

clip nut M6

54603048100

$4.11

9

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

10

FLASHER UNIT LED 6,25W

76011030000

$26.83

11

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

11

Cable tie 200/4.6mm black

44011076200

Unavailable

11

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

12

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

13

DIODE S3H-15 97

58411096100

$9.81

14

Direct current horn complete

64111060033

$35.05

16

Shift shaft sensor

61434051000

$131.55

17

Quickshifter sensor cover

76834052000

$2.05

34

Cap hd. screw DIN14580 M5x20 P

014580050203S

$1.49

35

SPACER BUSH. SPRING BRACKET

78003023070

$1.49

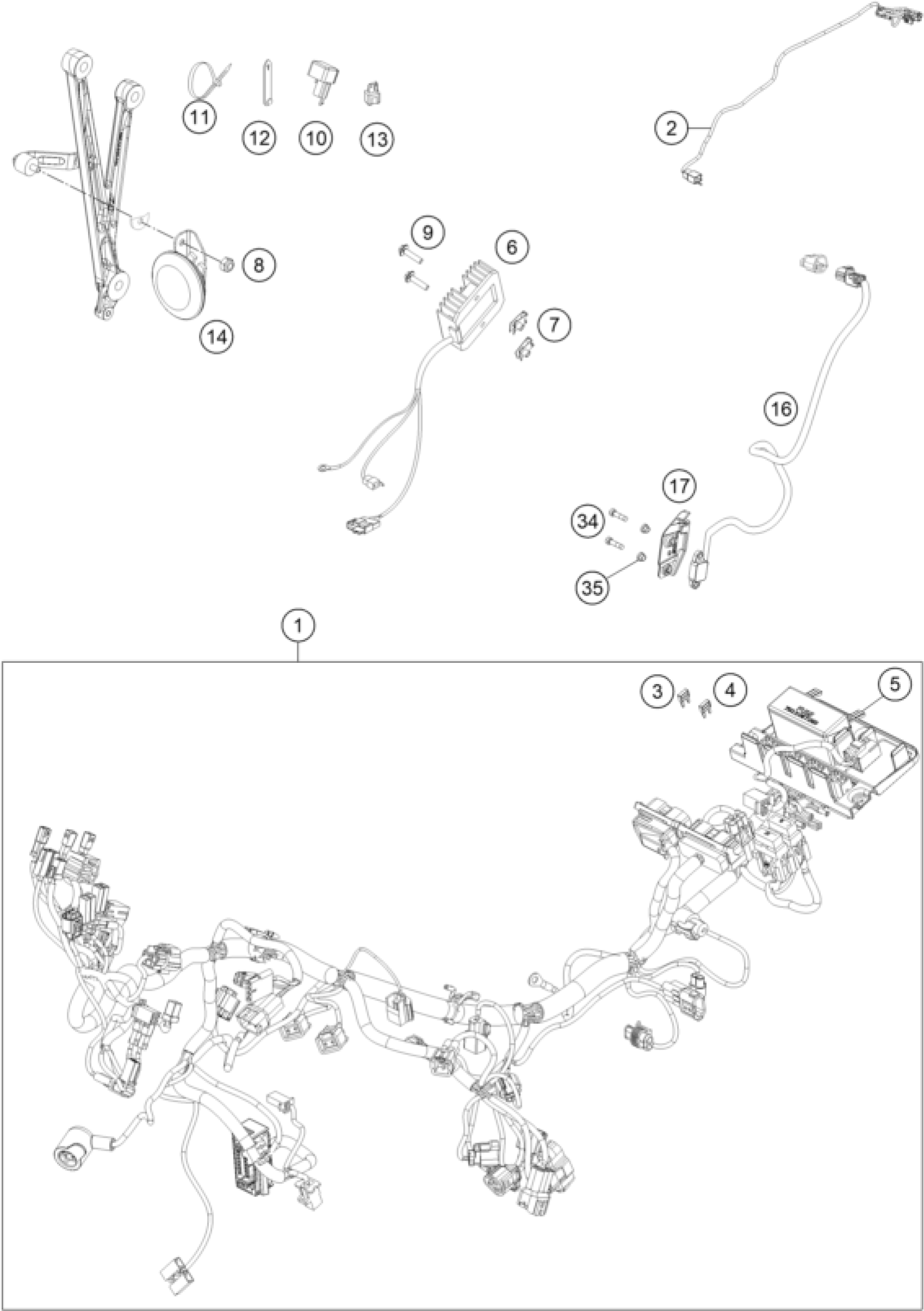

KTM 690 SMC R 2019 WIRING HARNESS Diagram

main harness

Rear part, wiring harness

FUSE 10A 07

FUSE 15A 07

RUBBER CASING FOR FUSE BOX

Self lock. nut DIN985-M6-A2

VOLTAGE REGULATOR

clip nut M6

HH COLLAR SCREW M6X25 TX30

FLASHER UNIT LED 6,25W

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

RUBBER CABLE TIE 45MM 03

DIODE S3H-15 97

Direct current horn complete

Shift shaft sensor

Quickshifter sensor cover

Cap hd. screw DIN14580 M5x20 P

SPACER BUSH. SPRING BRACKET
